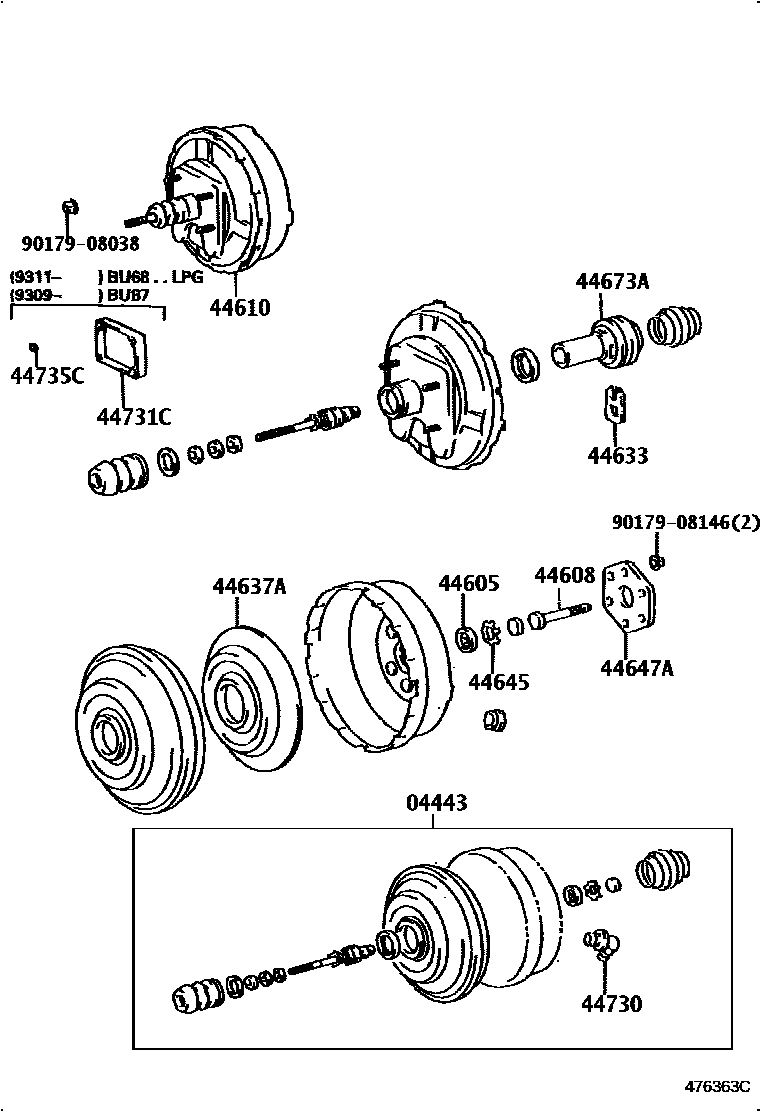

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-36091iBU87..V;BU67,78,88,94..T3,T4,TW1;BU60,66,68,87..(DM1,T3,TW1)..WT..DSL198808-199505

main04443-36091iBU90,91,95,96198808-199505

main04443-36101iBU6#,7#,8#,94..DSL,TD198808-199505

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-36220iBU6#,7#,8#,9#..DSL,TD198808-199505

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-25150iBU6#,7#,8#,9#..DSL,TD198808-199505

44610BOOSTER ASSY, BRAKE

main44610-36321iBU90,91,95,96198808-199505

main44610-36321iBU87..V;BU88..TOY..T4;BU67,78,85,94..TR;BU88..DYN..T4..30T;BU88..DYN..T4..5F..20T;BU60,66,68,87,88..(DM1,T3,TW1)..WT..(DSL,TD)198808-199505

main44610-36371iBU6#,7#,8#,94..DSL,TD198808-199505

main44610-36371iBU6#,7#,8#,94..DSL,TD198808-199505

main44610-36570iBU87..T3..20T199309-199505

main44610-36580iBU68..LPG199311-199505

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iBU6#,7#,8#,9#..DSL,TD198808-199505

44637APLATE, BOOSTER DIAPHRAGM

main44637-25150iBU6#,7#,8#,9#..DSL,TD198808-199505

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-36220iBU6#,7#,8#,9#..DSL,TD198808-199505

44647AROD, BOOSTER PISTON

main44647-25150iBU6#,7#,8#,9#..DSL,TD198808-199505

44673ABODY, BOOSTER VALVE

main44673-25150iBU6#,7#,8#,94..DSL,TD198808-199505

main44673-36321iBU90,91,95,96198808-199505

main44673-36321iBU87..V;BU67,78,88,94..T3,T4,TW1;BU60,66,68,87..(DM1,T3,TW1)..WT..DSL198808-199505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20100iBU68..LPG199311-199505

main44730-60040iBU6#,7#,8#,9#..DSL,TD198808-199505

44731CBRACKET, BRAKE BOOSTER

main44731-20090iBU87..T3..20T199309-199505

main44731-35110iBU68..LPG199311-199505

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010iBU68..LPG;BU87..T3..20T199309-199505

9017908038

main90179-08038

9017908146

main90179-08146

14 parts on this diagram · 5 diagrams in section
