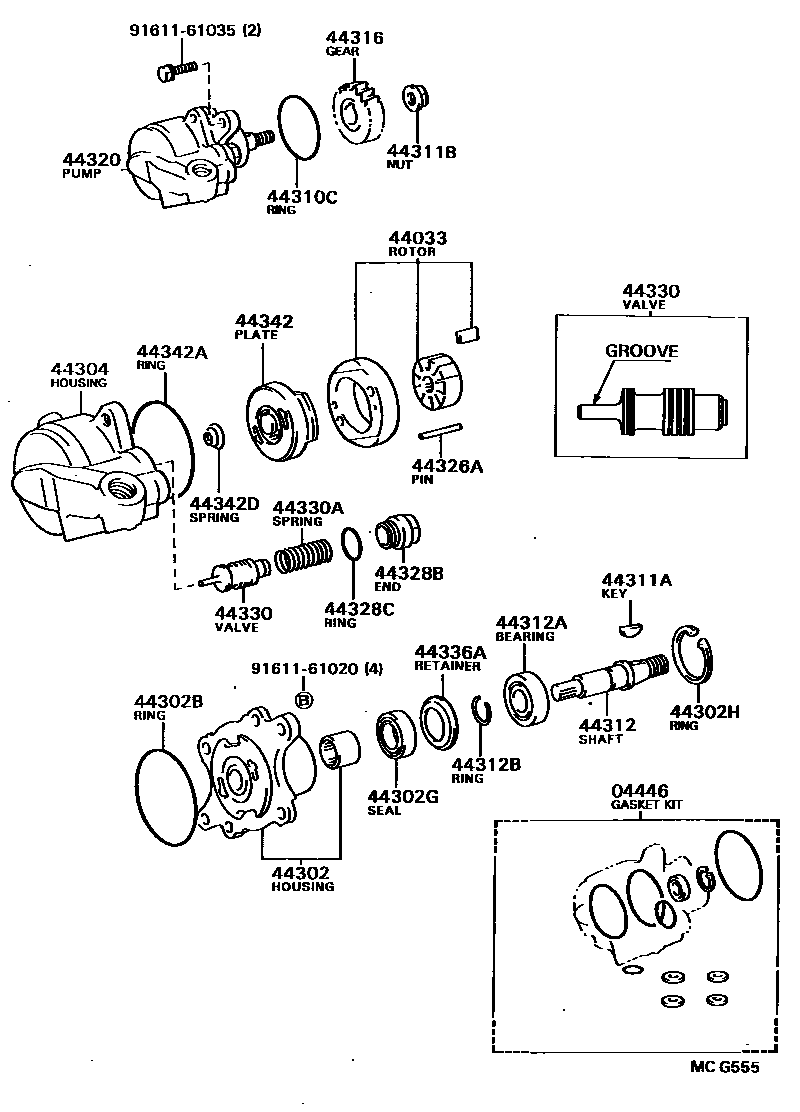

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36030iBU85,90,95198808-199106

sub04446-36070

main04446-36050iBU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,7#,8#,9#198808-199106

sub04446-36080

main04446-36080iBU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,7#,8#,9#199106-199202

sub04446-36081

main04446-36080iBU72..T4..IV3198910-199106

sub04446-36081

main04446-36081iBU6#,7#,8#,9#..DSL,TD199202-199505

main04446-36110iBU68..LPG199311-199505

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iBU87..T3..5F..20T..IV3199502-199505

sub44033-36060

main44033-36030iBU6#,7#,8#,9#198808-199502

sub44033-36060

main44033-36060iBU6#,7#,8#,9#199502-199505

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36160iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S)198808-199502

sub44302-36210

main44302-36170iBU68..LPG199311-199505

main44302-36210iBU6#,7#,8#,9#..DSL,TD199502-199505

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S)198808-199505

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21004iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S)198808-199104

main90029-21018iBU60..WT..20T..IV3199104-199505

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iBU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,7#,8#,9#198808-199505

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36160iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S)198808-199505

main44304-36170iBU68..LPG199311-199505

44310CRING, O(FOR VANE PUMP)

main90301-60002iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S)198808-199505

44311PULLEY, VANE PUMP

main44311-36060iBU68..LPG199311-199505

44311AKEY, VANE PUMP PULLEY

main90029-18001iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S);BU61,66,67,68,72,74,78,83,84,87,88,91,94,96198808-199505

main90029-18002iBU85,90,95198808-198910

44311BNUT(FOR VANE PUMP PULLEY)

main90179-14009iBU85,90,95198808-198910

44312SHAFT, VANE PUMP

main44312-36100iBU68..LPG199311-199505

main44312-36110iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S);BU61,66,67,68,72,74,78,83,84,87,88,91,94,96198808-199505

main44312-89101iBU85,90,95198808-198910

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,7#,8#,9#198808-199505

main90029-36004iBU68..LPG199311-199505

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,7#,8#,9#198808-199505

44316GEAR, VANE PUMP

main44316-36010iBU85,90,95198808-198910

main44316-36020iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S);BU61,66,67,68,72,74,78,83,84,87,88,91,94,96198808-199505

44320PUMP ASSY, VANE

main44310-36180iBU72;BU60,66..T3..ST;BU60..(T2,T4)..CBU;BU60..T1,TW1,TW2,TW4;BU66,87..DM5,T2,T4,TW4;BU61,67,70,73,74,78,83,84,88,94..TR,V198808-199505

main44310-36180iBU60,66..T3..5F..WT..20T..IV3199210-199505

main44310-36190iBU91,96198808-199505

main44310-36200iBU60..T3..WT..IV3198808-199505

main44320-36140iBU85,90,95198808-198910

main44320-36260iBU68..LPG199311-199505

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S)198808-199505

44328BEND, VANE PUMP HOUSING

main44328-89101iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S)198808-199505

subS4432-61180

44328CRING, O(FOR PUMP HOUSING END)

main96711-19020iBU6#,7#,8#,9#198808-199505

44330VALVE ASSY, FLOW CONTROL

main44330-36021iBU60..T3..WT..IV3198808-199505

main44330-36030iBU67,68,87..DMP,V;BU60..T3..WT..CBU;BU66,87..(DM1,DM2,DM3,T3,TW1)..WT198808-199505

main44330-36040iBU67,68,87..DMP,V;BU60..T3..WT..CBU;BU66,87..(DM1,DM2,DM3,T3,TW1)..WT198808-199505

main44330-36050iBU60..T3..WT..IV3198808-199505

main44330-36050iBU60..(T2,T4)..IV3198808-199505

main44330-36060iBU60..T3..WT..IV3198808-199505

main44330-36060iBU72;BU68..LPG;BU87..T2,T4;BU60,66..T3..ST;BU61,67,70,73,74,78,83,84,88,94..TR,V;BU60,66..(DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)198808-199505

main44330-36070iBU60..T3..WT..IV3198808-199505

main44330-36070iBU72;BU60,66..T3..ST;BU60..T1,TW2,TW4;BU60..(T2,T4)..CBU;BU66,87..DM5,T2,T4;BU61,67,70,74,78,83,84,85,88,90,94,95..(SRF,T2,T3,T4,TW1)..(03S,06S)198808-199505

main44330-36110iBU91,96198808-199505

main44330-36120iBU91,96198808-199505

main44330-36130iBU91,96198808-199505

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBU60..WT..20T..IV3198808-199505

44336ARETAINER, VANE PUMP OIL SEAL

main44336-89101iBU6#,7#,8#,9#198808-199502

44342PLATE, VANE PUMP SIDE, REAR

main44342-89102iBU60..WT..20T..IV3198808-199505

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iBU60..T3..ST..IV3;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,7#,8#,9#198808-199505

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60003iBU60..T3..ST..IV3;BU60..(T2,T3,T4)..CBU;BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,TW2,TW4)..(03S,06S)198808-199505

9161161020

main91611-61020

9161161035

main91611-61035

27 parts on this diagram · 4 diagrams in section
