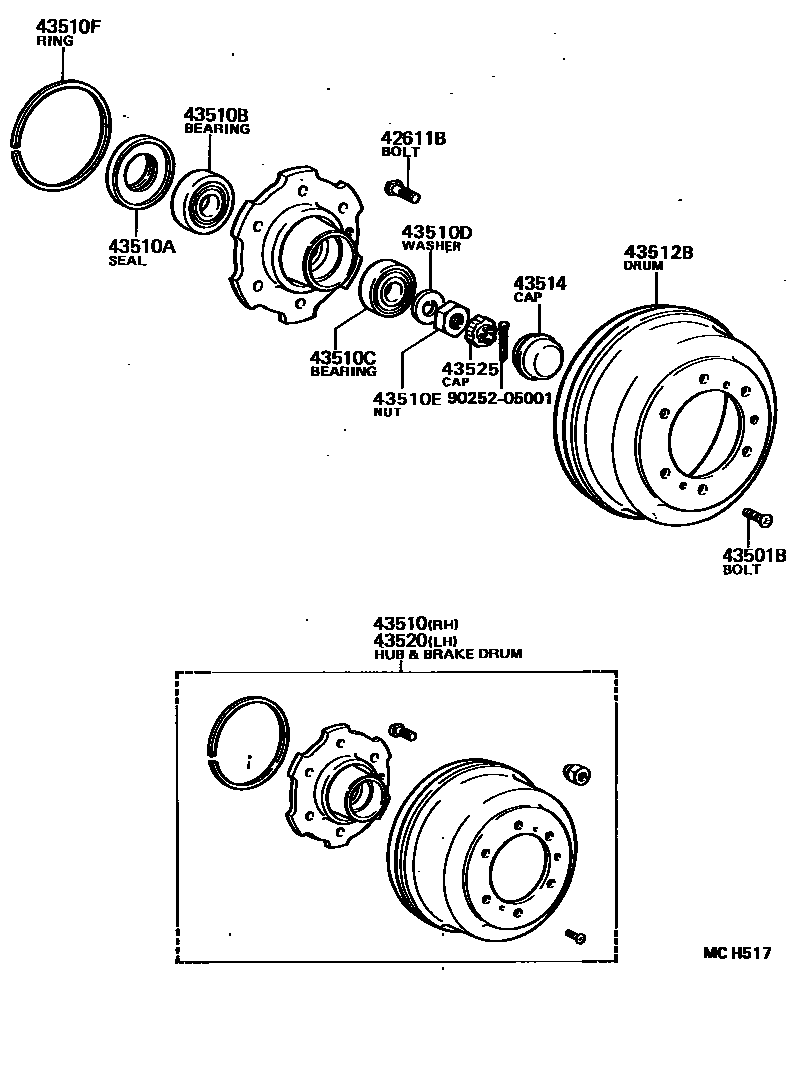

FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024iBU61..T2,T3;BU87,88..T2;BU60,66..T3..ST;BU60,66,70,84..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198808-199505

main90942-02025iBU61..T2,T3;BU87,88..T2;BU60,66..T3..ST;BU60,66,70,84..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198808-199505

main90942-02045iBU73,74,91,96;BU72..DM3,DM4199309-199505

main90942-02046iBU87..T3..4FC..20T199309-199505

main90942-02050iBU60,61,66,72,83,84,87..DM5,T4,TW4198808-199505

main90942-02051iBU66,87..T4..4FC198808-199309

main90942-02061iBU60..TW4;BU61,84..T4;BU66..175..IV3;BU66,87..T4..4FC;BU60,87..T4..5F..CBU;BU66..(T4,TW4)..5F..CBU199310-199505

main90942-02062iBU60,66,87..T4..5F..IV3199310-199505

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035×2iBU61..T2,T3;BU87,88..T2;BU60,66..T3..ST;BU60,66,70,84..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198808-199505

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36110iBU61..T2,T3;BU87,88..T2;BU60,66..T3..ST;BU60,66,70,84..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198808-199505

main43510-36120iBU60,61,66,83,84,87..DM5,T4,TW4198808-199505

main43510-36131iBU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)198808-199505

main43510-36140iBU90,91,95,96198808-199008

main43510-36170iBU91,96199008-199505

main43510-36190iBU72..DM5,T4198910-199505

main43510-36200iBU72,73,74..DM3,DM4,T3,TW1198910-199505

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90033-19001×2iBU90,91,95,96198808-199505

main90311-68001×2iBU6#,70,78,8#,94198808-199505

main90311-75008×2iBU72,73,74199309-199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-60005×2iBU72,73,74199309-199505

main90368-42045×2iBU6#,70,78,8#,94198808-199505

main90368-50001×2iBU90,91,95,96198808-199505

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90366-55042×2iBU72,73,74198910-199309

main90368-28001×2iBU6#,70,78,8#,94198808-199505

main90368-35001×2iBU90,91,95,96198808-199505

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001×2iBU6#,70,78,8#,94198808-199505

main90214-33001×2iBU90,91,95,96198808-199505

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001×2iBU6#,70,78,8#,94198808-199505

main90171-33001×2iBU90,91,95,96198808-199505

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-33009×2iBU72,73,74198910-199309

main90520-99065iBU61..T2,T3;BU87,88..T2;BU60,66..T3..ST;BU60,66,70,84..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198808-199505

43512DISC, FRONT

main43512-25050×2iBU60,61,66,83,84,87..T4,TW4198808-199203

main43512-36070×2iBU87..V;BU67,78,88,94..T3,T4,TW1;BU60,66,68,87..(DM1,T3,TW1)..WT199309-199505

main43512-36150iBU72,73,74..DM3,DM4,T3,TW1199309-199505

43512BDRUM, BRAKE

main43512-36060×2iBU61..T2,T3;BU87,88..T2;BU60,66..T3..ST;BU60,66,70,84..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198808-199505

main43512-36090×2iBU60,61,66,83,84,87..DM5,T4,TW4198808-199505

main43512-36101×2iBU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)198808-199505

main43512-36110×2iBU90,91,95,96198808-199008

main43512-36120×2iBU91,96199008-199505

main43512-36140×2iBU72..DM5,T4198910-199505

main43512-36150iBU72,73,74..DM3,DM4,T3,TW1198910-199505

43514CAP, FRONT HUB GREASE

main43514-36030×2iBU6#,70,78,8#,94198808-199505

main43514-37020×2iBU90,91,95,96198808-199505

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36110iBU61..T2,T3;BU87,88..T2;BU60,66..T3..ST;BU60,66,70,84..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198808-199505

main43520-36120iBU60,61,66,83,84,87..DM5,T4,TW4198808-199505

main43520-36131iBU87..V;BU60,66,87..(DM1,DM3,T3,TW1)..WT;BU67,68,78,85,88,94..(DM1,DM4,T3,T4,TW1)..(DSL,TD)198808-199505

main43520-36140iBU90,91,95,96198808-199008

main43520-36170iBU91,96199008-199505

main43520-36190iBU72..DM5,T4198910-199505

main43520-36200iBU72,73,74..DM3,DM4,T3,TW1198910-199505

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010×2iBU6#,70,78,8#,94198808-199505

9025205001

main90252-05001

15 parts on this diagram · 6 diagrams in section
