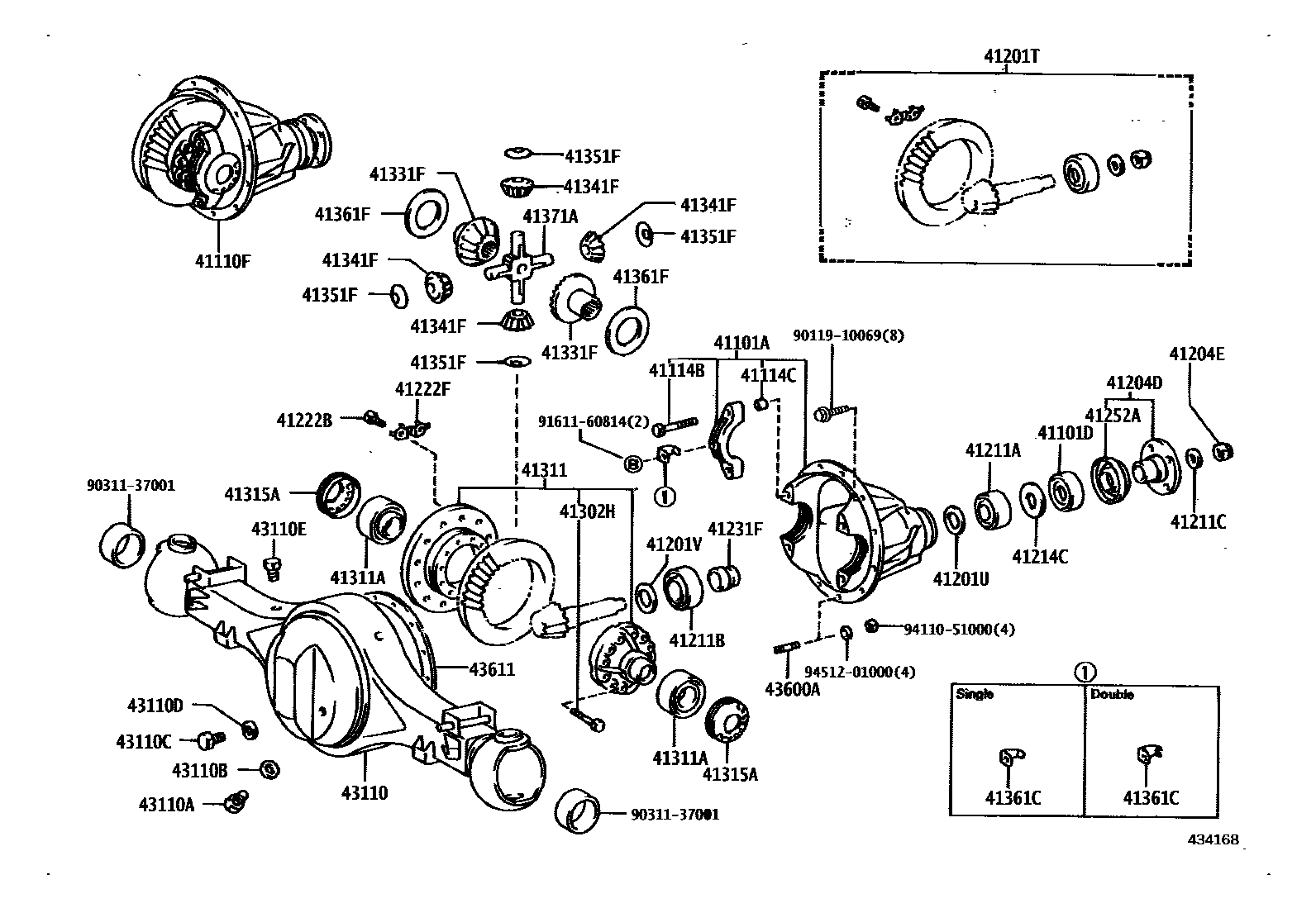

FRONT AXLE HOUSING & DIFFERENTIAL

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-36030iBU72..DM5,T4198910-199505

sub41101-37010

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-48135iBU72,73,74198910-199505

sub90311-48019

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-36391iBU72..T4198910-199505

sub41110-37090

main41110-36460iBU72..DM5198910-199505

sub41110-37110

main41110-36520iBU74198910-199505

sub41110-37120

main41110-36530iBU74..30T;BU72..30T..IV3198910-199505

sub41110-37190

main41110-36540iBU72..DM3,DM4;BU72,73,74..30T198910-199505

sub41110-36541

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-16022iBU72..DM5,T4198910-199505

41114CPIN, RING, FRONT DIFFERENTIAL BEARING CAP BOLT

main90253-21001iBU74;BU72..(DM5,T4)..CBU;BU72..(DM5,T3,T4)..20T..IV3198910-199505

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-39198iBU74198910-199505

main41201-39306iBU72..T4198910-199505

sub41201-39307

main41201-39525iBU72..DM5198910-199505

sub41201-39526

sub41204-36090

main41201-39615iBU72,73,74..(T3,TW1)..(20T,IV4)198910-199505

sub41201-80640

main41201-39785iBU72..DM3,DM4;BU72,73,74..30T198910-199505

sub41201-39786

sub41204-36090

41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBU72,73,74198808-199505

main90564-35020iBU72,73,74198808-199505

main90564-35021iBU72,73,74198808-199505

main90564-35022iBU72,73,74198808-199505

main90564-35023iBU72,73,74198808-199505

main90564-35024iBU72,73,74198808-199505

main90564-35025iBU72,73,74198808-199505

main90564-35026iBU72,73,74198808-199505

main90564-35027iBU72,73,74198808-199505

main90564-35028iBU72,73,74198808-199505

main90564-35029iBU72,73,74198808-199505

main90564-35030iBU72,73,74198808-199505

main90564-35031iBU72,73,74198808-199505

main90564-35032iBU72,73,74198808-199505

main90564-35033iBU72,73,74198808-199505

main90564-35034iBU72,73,74198808-199505

main90564-35035iBU72,73,74198808-199505

main90564-35036iBU72,73,74198808-199505

main90564-35037iBU72,73,74198808-199505

main90564-35038iBU72,73,74198808-199505

main90564-35039iBU72,73,74198808-199505

main90564-35040iBU72,73,74198808-199505

41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-40551iBU74;BU72..(DM5,T4)..CBU;BU72..(DM5,T3,T4)..20T..IV3198910-199505

sub90564-40004

main90201-40552iBU72..DM5,T4198910-199505

sub90564-40007

main90201-40553iBU72..DM5,T4198910-199505

sub90564-40009

main90201-40554iBU72..DM5,T4198910-199505

sub90564-40011

main90201-40555iBU74;BU72..(DM5,T4)..CBU;BU72..(DM5,T3,T4)..20T..IV3198910-199505

sub90564-40013

main90201-40556iBU72,73,74198910-199505

sub90564-40015

main90201-40557iBU72,73,74198910-199505

sub90564-40017

main90201-40558iBU72,73,74198910-199505

sub90564-40019

main90201-40559iBU72,73,74198910-199505

sub90564-40021

main90201-40560iBU72..DM5,T4198910-199505

sub90564-40023

main90201-40561iBU72..T4198910-199505

sub90564-40025

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-36050iBU72,73,74198808-199505

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-22003iBU72,73,74198808-199505

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35023iBU72,73,74198910-199505

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-40001iBU72,73,74198910-199505

sub90366-40100

41211CGEAR, DIFFERENTIAL RING

main90201-23002iBU72..DM5,T4198910-199505

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-36030iBU72,73,74198808-199505

sub41214-37010

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-14315iBU72..DM5,T4198910-199505

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020iBU72..DM5,T4198910-199505

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBU72,73,74198808-199505

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-36010iBU72,73,74198808-199505

sub41252-37020

41302HBOLT(FOR FRONT DIFFERENTIAL CASE)

main90105-12087iBU72..DM5,T4198910-199505

41311CASE, FRONT DIFFERENTIAL

main41301-36030iBU72..DM5,T4198910-199505

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90368-52043iBU72,73,74198910-199505

41315ANUT, FRONT DIFFERENTIAL BEARING ADJUSTING

main41315-36011iBU72..DM5,T4198910-199505

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-36020iBU72,73,74198910-199505

41341FPINION, FRONT DIFFERENTIAL

main41341-55012iBU72..DM5,T4198910-199505

sub41341-55013

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-35011iBU72..DM5,T4198910-199505

41361CLOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011iBU72,73,74198910-199505

SINGLE TYPE

main41317-36011iBU72,73,74198910-199505

DOUBLE TYPE

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-60010iBU72..DM5,T4198910-199505

sub41361-60011

main41361-60020iBU72..DM5,T4198910-199505

sub41361-60021

main41361-60030iBU72..DM5,T4198910-199505

sub41361-60031

main41361-60040iBU74;BU72..(DM5,T4)..CBU;BU72..(DM5,T3,T4)..20T..IV3198910-199505

sub41361-60041

41371ASPIDER, FRONT DIFFERENTIAL

main41371-36011iBU72..DM5,T4198910-199505

43110HOUSING ASSY, FRONT AXLE

main43110-36040iBU72,73,74198910-199007

main43110-36050iBU72,73,74199011-199505

main43110-36060iBU72,73,74199007-199011

sub43110-36050

43110APLUG SUB-ASSY, DRAIN

main90341-18057iBU72,73,74198910-199505

43110BGASKET, DRAIN

main12157-10010iBU72,73,74198910-199505

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18006iBU72,73,74198910-199505

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iBU72,73,74198910-199505

43110EPLUG, BREATHER (FOR FRONT AXLE HOUSING)

main90930-03031iBU72,73,74198910-199505

43600ABOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING)

main90116-10082iBU72,73,74198910-199505

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-36030iBU72,73,74198910-199010

sub42181-36060

main42181-36060iBU72,73,74199010-199505

9011910069

main90119-10069

9031137001

main90311-37001

9161160814

main91611-60814

9411051000

main94110-51000

9451201000

main94512-01000

41 parts on this diagram · 1 diagram in section
