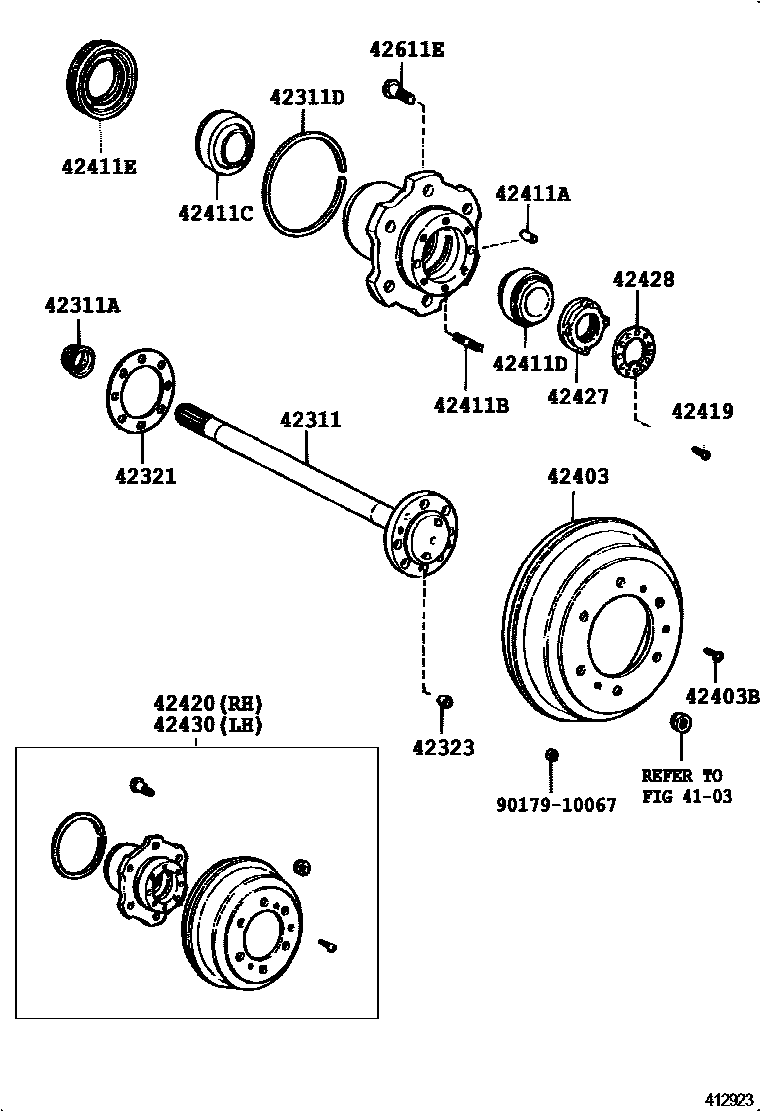

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1

4103

42311SHAFT, REAR AXLE

main42311-36051iBU87..V;BU60,61,66,70..ST;BU87,88..(T3,TW1)..20T..DSL198808-199505

main42311-36071iBU60,66,67..(DM3,T3)..WT..20T198808-199505

main42311-36091iBU60,61,66..DM2,T2,TW2198808-199505

main42311-36101iBU84,87,88..T2198808-199505

main42311-36131iBU90,91,95,96198808-199505

main42311-36151iBU60,61,66,72..DM5,T4,TW4198808-199505

main42311-36161iBU83,84,87..T4198808-199505

main42311-36171iBU72..DM3,DM4,T3;BU66,67,68..DM1,DM4198808-199505

main42311-36181iBU87..T3..5F..20T199105-199505

main42311-36181iBU88..T4;BU88..20T..TD;BU73,74,78,85,94;BU66,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

main42311-36181iBU87..T3..4FC..20T199309-199505

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-38033iBU72..DM5,T4198808-199505

main90310-40001iBU87..T3..4FC..20T199305-199505

main90310-40001iBU66..DM1;BU73,74,85,94;BU88..20T..TD;BU72..DM3,DM4,T3;BU67,68,78,88..DM1,DM4,T4;BU66,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

main90310-41001iBU90,91,95,96198808-199505

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-99065iBU60,61,66,70..ST198808-199505

42321GASKET, REAR AXLE SHAFT

main42321-36020iBU90,91,95,96198808-199505

main42321-36040iBU6#,7#,8#,94198808-199010

sub42321-36050

main42321-36050iBU6#,7#,8#,94199010-199505

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main42323-36010iBU87..T3..4FC..20T199309-199505

main42323-36020iBU90,91,95,96198808-199505

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36090iBU60,61,66,84,87,88..DM2,T2,TW2198808-199505

main42431-36100iBU60,61,66,72,83,84,87..DM5,T4,TW4198808-199505

main42431-36110iBU90,91,95,96198808-199008

main42431-36120iBU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1198808-199505

main42431-36130iBU91,96199008-199505

main43512-36020iBU60,61,66,70..ST198808-199505

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035iBU60,61,66,70..ST198808-199505

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-10055iBU60..T1,T2,T4,TW1,TW2,TW4198808-199505

main90250-13066iBU90,91,95,96198808-199505

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-10191iBU66,87..275,30T198808-199505

main90116-10191iBU87..T3..4FC..20T199309-199505

main90116-12009iBU90,91,95,96198808-199505

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90368-57010iBU88..T2,T4,TW1198808-199505

main90368-66006iBU90,91,95,96198808-199505

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-52043iBU6#,7#,8#,94198808-199505

main90368-57046iBU90,91,95,96198808-199505

42411ESEAL, OIL (FOR REAR AXLE HUB)

main90311-75003iBU66..DM1,DM2,DM5,T2,T3,T4,TW4198808-199505

main90311-88102iBU96..4FC..TD198808-199505

42419SCREW, REAR AXLE BEARING LOCK NUT

main93311-16012iBU66198808-199505

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-36050iBU60,61,66,70..ST198808-199505

main42420-36100iBU60,61,66,84,87,88..DM2,T2,TW2198808-199505

sub42420-29035

main42420-36110iBU60,61,66,72,83,84,87..DM5,T4,TW4198808-199505

main42420-36120iBU90,91,95,96198808-199008

main42420-36130iBU87..V;BU60,66,67,87,88..(DM3,T3,TW1)..WT..20T..DSL198808-199505

sub42420-37040

main42420-36150iBU66..DM1;BU73,74,85,94;BU88..20T..TD;BU72..DM3,DM4,T3;BU67,68,78,88..DM1,DM4,T4;BU66,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

sub42420-37050

main42420-36170iBU91,96199008-199505

main42420-36200iBU87..T3..20T199309-199505

sub42420-37902

42427NUT, REAR AXLE BEARING LOCK

main42427-36020iBU90,91,95,96198808-199505

main42427-36030iBU6#,7#,8#,94198808-199505

42428PLATE, REAR AXLE LOCK NUT

main42428-36020iBU66198808-199505

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-36050iBU60,61,66,70..ST198808-199505

main42430-36100iBU60,61,66,84,87,88..DM2,T2,TW2198808-199505

sub42430-29035

main42430-36110iBU60,61,66,72,83,84,87..DM5,T4,TW4198808-199505

main42430-36120iBU90,91,95,96198808-199008

main42430-36130iBU87..V;BU60,66,67,87,88..(DM3,T3,TW1)..WT..20T..DSL198808-199505

sub42430-37040

main42430-36150iBU66..DM1;BU73,74,85,94;BU88..20T..TD;BU72..DM3,DM4,T3;BU67,68,78,88..DM1,DM4,T4;BU66,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

sub42430-37050

main42430-36170iBU91,96199008-199505

main42430-36200iBU87..T3..20T199309-199505

sub42430-37902

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02024iBU60,61,66,70..ST198808-199505

main90942-02025iBU60,61,66,70..ST198808-199505

main90942-02045iBU87..T3,TW1198808-199505

main90942-02046iBU67,68,73,74,78,9#198808-199505

main90942-02050iBU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4198808-199505

main90942-02051iBU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4198808-199505

9017910067

main90179-10067

20 parts on this diagram · 8 diagrams in section
