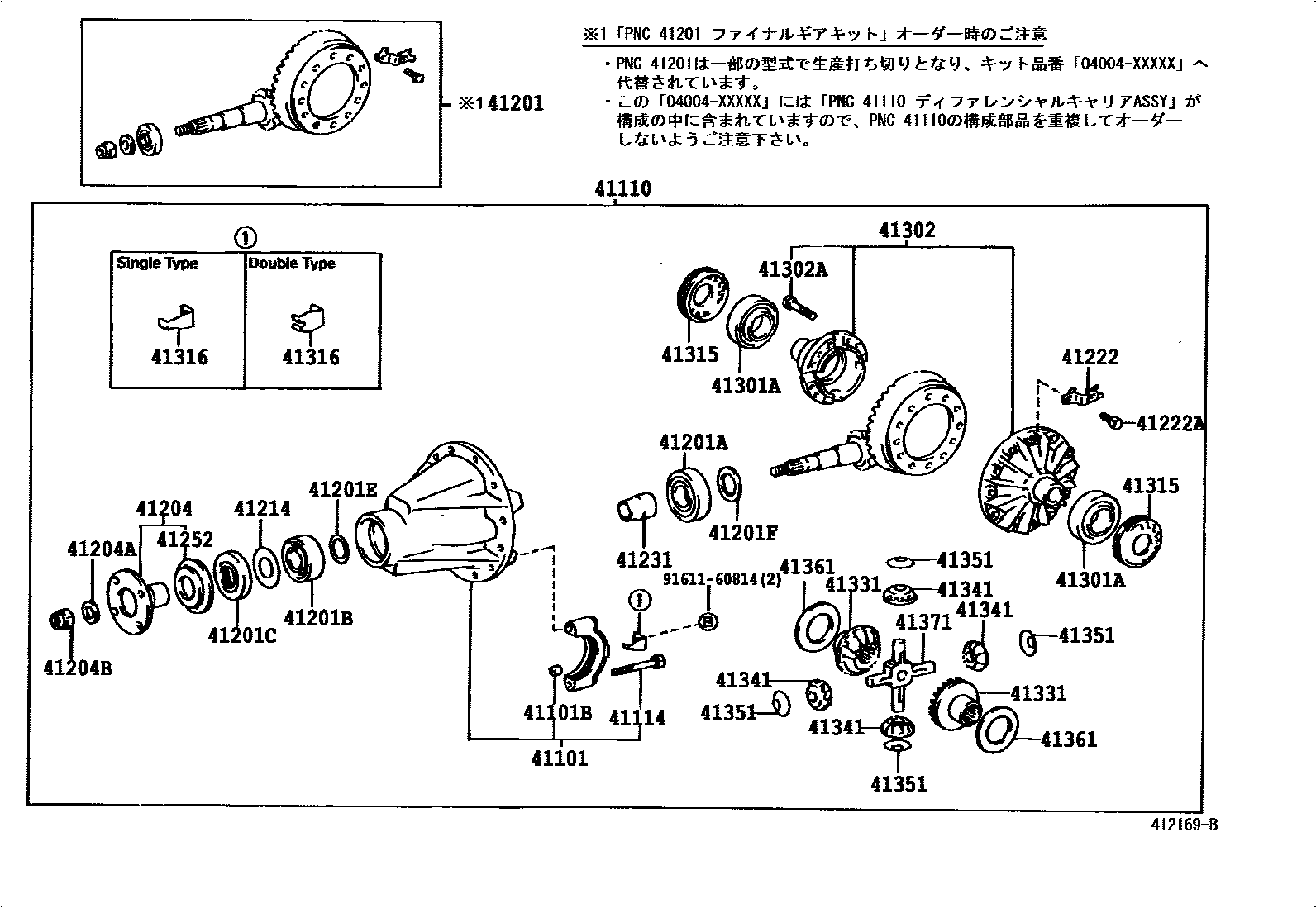

REAR AXLE HOUSING & DIFFERENTIAL

0001 110.5��� ���������� 0002 112��� ���������� 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-36030iBU60,61,70,83,84198808-199505

sub41101-37010

main41101-36040iBU66..IV4198808-199505

main41101-36040iBU87..T3..5F..20T199309-199505

41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)

main90253-21001iBU73..06S198808-199505

main90253-22002iBU87,88..275,30T198808-199505

main90253-22002iBU87..T3..4FC..20T199309-199505

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-36381iBU66,87..T2..5F198808-199505

sub41110-37080

main41110-36391iBU60,61,88..(T2,TW2)..5F;BU66,72,87..(T4,TW4)..5F198808-199505

sub41110-37090

main41110-36460iBU88..T2..5F;BU66..T3..4FC..WT198808-199505

sub41110-37110

main41110-36470iBU88..20T..TD;BU78,88..T4..5F..30T198808-199505

sub41110-36471

main41110-36480iBU88..30T..TD;BU94..T3..20T198808-199505

sub41110-36481

main41110-36490iBU67..DMP..5F;BU88..4FC..30T;BU85,88,94..T3..(275,30T)198808-199505

sub41110-37250

main41110-36500iBU67..4FC198808-199505

sub41110-36501

main41110-36510iBU91,96..T3..5F..DSL198808-199505

sub41110-36511

main41110-36520iBU66..DM3,DM5;BU66..4FC..ST;BU60,88..(T3,TW1)..5F..WT..20T..DSL198808-199505

sub41110-37120

main41110-36530iBU66,87..T3..4FC..WT..20T198808-199505

sub41110-37190

main41110-36540iBU88..T3..4FC198808-199505

sub41110-36541

main41110-36550iBU66..4FC..ST198808-199505

sub41110-37040

main41110-36570iBU78,88,94..T4..5F..20T198910-199505

sub41110-37240

main41110-36570iBU87..T3..5F..20T199309-199505

sub41110-37240

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-16009iBU87..T3..5F..20T199309-199505

main90105-16009iBU87,88..275,30T198808-199505

main90105-16022iBU72..T4198808-199505

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29436iBU66,87..T2..5F198808-199505

sub41201-29437

main41201-39198iBU74198910-199210

main41201-39306iBU60,61,88..(T2,TW2)..5F;BU66,72,87..(T4,TW4)..5F198808-199505

sub41201-39307

main41201-39485iBU66..30T..IV3198808-199505

sub41201-80154

main41201-39495iBU67..4FC;BU96..4FC..TD;BU91,96..T3..5F198808-199505

sub04004-16537

main41201-39505iBU68..LPG;BU96..4FC..DSL198808-199505

sub04004-48237

main41201-39515iBU91..T4;BU66,87..275,30T,IV4;BU68,72,73,74..(DM1,T3,TW1)..(20T,IV4)198808-199505

sub41201-80153

main41201-39515iBU88..30T..TD;BU87..T3..4FC..20T199008-199505

sub41201-80153

main41201-39525iBU88..T2..5F;BU66..T3..4FC..WT198808-199505

sub41201-39526

sub41204-36090

main41201-39605iBU66..DM3,DM5;BU66..4FC..ST;BU60,88..(T3,TW1)..5F..WT..20T..DSL198808-199505

sub41201-80630

main41201-39605iBU87..T3..4FC..20T199309-199505

sub41201-80630

main41201-39615iBU66,87..T3..4FC..WT..20T198808-199505

sub41201-80640

main41201-39645iBU74198808-199505

sub41201-80152

main41201-39645iBU78,94..20T;BU66,68..DM1..DSL199008-199505

sub41201-80152

main41201-39785iBU88..T3..4FC198808-199505

sub41201-39786

sub41204-36090

main41201-39825iBU66..4FC..ST198808-199505

sub41201-39826

main41201-80018iBU87..T3..5F..20T199309-199505

sub41201-80155

main41201-80018iBU78,88,94..T4..5F..20T198910-199505

sub41201-80155

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40001iBU87..V;BU72..DM5;BU83,84..T4;BU88..T2..4FC;BU60,61,70..ST;BU66,87..T4..4FC;BU66,87..(DM2,T3,TW1)..5F..WT..20T198808-199505

sub90366-40100

main90366-49001iBU85..20T;BU88..T4..5F..30T198808-199505

main90366-49001iBU87..T3..5F..20T199309-199505

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35023iBU60..DYN..T1..IV3198808-199505

main90366-45001iBU87..T3..5F..20T199309-199505

main90366-45001iBU87,88..275,30T198808-199505

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-48135iBU67..T3198808-199505

sub90311-48019

main90311-58002iBU72..30T198808-199505

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBU72..T4198808-199505

main90564-35019iBU72..T4198808-199505

main90564-35020iBU72..T4198808-199505

main90564-35020iBU72..DM5198808-199505

main90564-35021iBU72..T4198808-199505

main90564-35021iBU87..V198808-199505

main90564-35022iBU87..20T198808-199505

main90564-35022iBU72..DM5198808-199505

main90564-35023iBU87..V198808-199505

main90564-35023iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main90564-35024iBU87..V198808-199505

main90564-35024iBU72..T4198808-199505

main90564-35025iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main90564-35025iBU87..V198808-199505

main90564-35026iBU72..T4198808-199505

main90564-35026iBU87..20T198808-199505

main90564-35027iBU87..20T198808-199505

main90564-35027iBU60,61,70,83,84198808-199505

main90564-35028iBU88..(T2,T3,TW1)..20T..DSL198808-199505

main90564-35028iBU72..T4198808-199505

main90564-35029iBU72..DM5198808-199505

main90564-35029iBU72..T4198808-199505

main90564-35030iBU88..(T2,T3,TW1)..20T..DSL198808-199505

main90564-35030iBU87..V198808-199505

main90564-35031iBU87..20T198808-199505

main90564-35031iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main90564-35032iBU87..20T198808-199505

main90564-35032iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main90564-35033iBU87..20T198808-199505

main90564-35033iBU88..(T2,T3,TW1)..20T..DSL198808-199505

main90564-35034iBU88..(T2,T3,TW1)..20T..DSL198808-199505

main90564-35034iBU72..T4198808-199505

main90564-35035iBU72..T4198808-199505

main90564-35035iBU87..V198808-199505

main90564-35036iBU87..V198808-199505

main90564-35036iBU72..DM5198808-199505

main90564-35037iBU72..T4198808-199505

main90564-35037iBU72..T4198808-199505

main90564-35038iBU87..V198808-199505

main90564-35038iBU87..V198808-199505

main90564-35039iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main90564-35039iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main90564-35040iBU67..T3198808-199505

main90564-35040iBU88..(T2,T3,TW1)..20T..DSL198808-199505

main90564-45020iBU66..DM1;BU88..20T..TD;BU67,68,78,88..DM1,DM4,T4;BU72,73,74..DM3,DM4,T3,TW1;BU66,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

main90564-45020iBU87..T3..4FC..20T199309-199505

main90564-45021iBU67..DMP198808-199505

main90564-45021iBU87..T3..5F..20T199309-199505

main90564-45022iBU66..275,30T198808-199505

main90564-45022iBU87..T3..5F..20T199309-199505

main90564-45023iBU66..275,30T198808-199505

main90564-45023iBU87..T3..5F..20T199309-199505

main90564-45024iBU87,88..275,30T198808-199505

main90564-45024iBU87..T3..5F..20T199309-199505

main90564-45025iBU87..T3..5F..20T199309-199505

main90564-45025iBU67..DMP198808-199505

main90564-45026iBU66..IV4198808-199505

main90564-45026iBU87..T3..4FC..20T199309-199505

main90564-45027iBU67..DMP198808-199505

main90564-45027iBU87..T3..4FC..20T199309-199505

main90564-45028iBU67..DMP198808-199505

main90564-45028iBU87..T3..5F..20T199309-199505

main90564-45029iBU87,88..275,30T198808-199505

main90564-45029iBU87..T3..5F..20T199309-199505

main90564-45030iBU66..275,30T198808-199505

main90564-45030iBU87..T3..5F..20T199309-199505

main90564-45031iBU87,88..275,30T198808-199505

main90564-45031iBU87..T3..5F..20T199309-199505

main90564-45032iBU67..DMP198808-199505

main90564-45032iBU87..T3..4FC..20T199309-199505

main90564-45033iBU66..275,30T198808-199505

main90564-45033iBU87..T3..5F..20T199309-199505

main90564-45034iBU66..275,30T198808-199505

main90564-45034iBU87..T3..5F..20T199309-199505

main90564-45035iBU66..IV4198808-199505

main90564-45035iBU87..T3..5F..20T199309-199505

main90564-45036iBU87..T3..4FC..20T199309-199505

main90564-45036iBU66..IV4198808-199505

main90564-45037iBU67..DMP198808-199505

main90564-45037iBU87..T3..4FC..20T199309-199505

main90564-45038iBU67..DMP198808-199505

main90564-45038iBU87..T3..4FC..20T199309-199505

main90564-45039iBU87,88..275,30T198808-199505

main90564-45039iBU87..T3..5F..20T199309-199505

main90564-45046iBU66..IV4198808-199505

main90564-45046iBU87..T3..4FC..20T199309-199505

main90564-45047iBU67..DMP198808-199505

main90564-45047iBU87..T3..4FC..20T199309-199505

main90564-45048iBU66..IV4198808-199505

main90564-45048iBU87..T3..5F..20T199309-199505

main90564-45049iBU66..275,30T198808-199505

main90564-45049iBU87..T3..5F..20T199309-199505

main90564-45050iBU67..DMP198808-199505

main90564-45050iBU87..T3..5F..20T199309-199505

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-40551iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40004

main90201-40552iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40007

main90201-40553iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40009

main90201-40554iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40011

main90201-40555iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40013

main90201-40556iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40015

main90201-40557iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40017

main90201-40558iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40019

main90201-40559iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40021

main90201-40560iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40023

main90201-40561iBU87..V;BU73..06S;BU72..DM3,DM4,T3,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

sub90564-40025

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-36050iBU87..V198808-199505

main41204-36060iBU87..T3..4FC..20T199309-199505

sub41204-37020

main41204-36060iBU87,88..275,30T198808-199505

sub41204-37020

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iBU72;BU87..V;BU73..06S;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,74,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iBU60,61,70,83,84198808-199505

main90179-24001iBU87..T3..4FC..20T199309-199505

main90179-24001iBU66..275,30T198808-199505

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-36020iBU67..DMP198808-199505

main41214-36020iBU87..T3..5F..20T199309-199505

main41214-36030iBU87..20T198808-199505

sub41214-37010

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020iBU72..T4198808-199505

main41222-36030iBU67..DMP198808-199505

main41222-36030iBU87..T3..4FC..20T199309-199505

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-14315iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main90101-16015iBU87..T3..4FC..20T199309-199505

main90101-16015iBU66..DM1;BU88..20T..TD;BU72,73..DM3,DM4,T3;BU67,68,78,88..DM1,DM4,T4;BU66,74,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBU67..T3198808-199505

main41231-36050iBU87..T3..5F..20T199309-199505

main41231-36050iBU66..DM1;BU88..20T..TD;BU72..DM3,DM4,T3;BU67,68,78,88..DM1,DM4,T4;BU66,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-36010iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

sub41252-37020

main41252-36020iBU67..DMP198808-199505

sub41252-37030

main41252-36020iBU87..T3..4FC..20T199309-199505

sub41252-37030

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-60001iBU87,88..275,30T198808-199505

main90366-60001iBU87..T3..5F..20T199309-199505

main90368-52043iBU60..DYN..(T2,T3,T4,TW1,TW2,TW4)198808-199505

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBU67..T3198808-199505

main41301-36040iBU87,88..275,30T198808-199505

main41301-36040iBU87..T3..4FC..20T199309-199505

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-12047iBU66..IV4198808-199505

main90105-12047iBU87..T3..5F..20T199309-199505

main90105-12087iBU87..V198808-199505

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011iBU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T)198808-199505

main41315-36020iBU67..DMP198808-199505

main41315-36020iBU87..T3..5F..20T199309-199505

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011iBU60,61,70,83,84198808-199505

SINGLE TYPE

main41316-36020iBU66..275,30T198808-199505

SINGLE TYPE

main41316-36020iBU87..T3..5F..20T199309-199505

main41317-36011iBU72..T4198808-199505

DOUBLE TYPE

main41317-36020iBU66..275,30T198808-199505

DOUBLE TYPE

main41317-36020iBU87..T3..4FC..20T199309-199505

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020iBU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)198808-199505

main41331-36031iBU87..T3..5F..20T199309-199505

main41331-36031iBU66..DM1;BU88..20T..TD;BU67,68,78,88..DM1,DM4,T4;BU72,73,74..DM3,DM4,T3,TW1;BU66,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

41341PINION, REAR DIFFERENTIAL

main41341-36011iBU66..275,30T198808-199505

main41341-36011iBU87..T3..5F..20T199309-199505

main41341-55012iBU87..V198808-199505

sub41341-55013

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011iBU73..06S198808-199505

main41351-36010iBU66..DM1;BU88..20T..TD;BU72,73..DM3,DM4,T3;BU67,68,78,88..DM1,DM4,T4;BU66,74,87,88..(T3,TW1)..(275,30T,IV4)198808-199505

main41351-36010iBU87..T3..5F..20T199309-199505

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-36010iBU87..T3..5F..20T199309-199505

main41361-36010iBU66..275,30T198808-199505

main41361-36020iBU67..DMP198808-199505

main41361-36020iBU87..T3..5F..20T199309-199505

main41361-36030iBU66..275,30T198808-199505

main41361-36030iBU87..T3..4FC..20T199309-199505

main41361-36040iBU87..T3..4FC..20T199309-199505

main41361-36040iBU85,9#;BU67..DMP;BU66,87,88..275,30T,IV4198808-199505

main41361-60010iBU73..06S198808-199505

sub41361-60011

main41361-60010iBU73..06S198808-199505

sub41361-60011

main41361-60020iBU72..T4198808-199505

sub41361-60021

main41361-60020iBU73..06S198808-199505

sub41361-60021

main41361-60030iBU87..V198808-199505

sub41361-60031

main41361-60030iBU87..V198808-199505

sub41361-60031

main41361-60040iBU72..T4198808-199505

sub41361-60041

main41361-60040iBU73..06S198808-199505

sub41361-60041

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBU88..(T2,T3,TW1)..20T..DSL198808-199505

main41371-36020iBU66..275,30T198808-199505

main41371-36020iBU87..T3..5F..20T199309-199505

9161160814

main91611-60814

29 parts on this diagram · 3 diagrams in section
