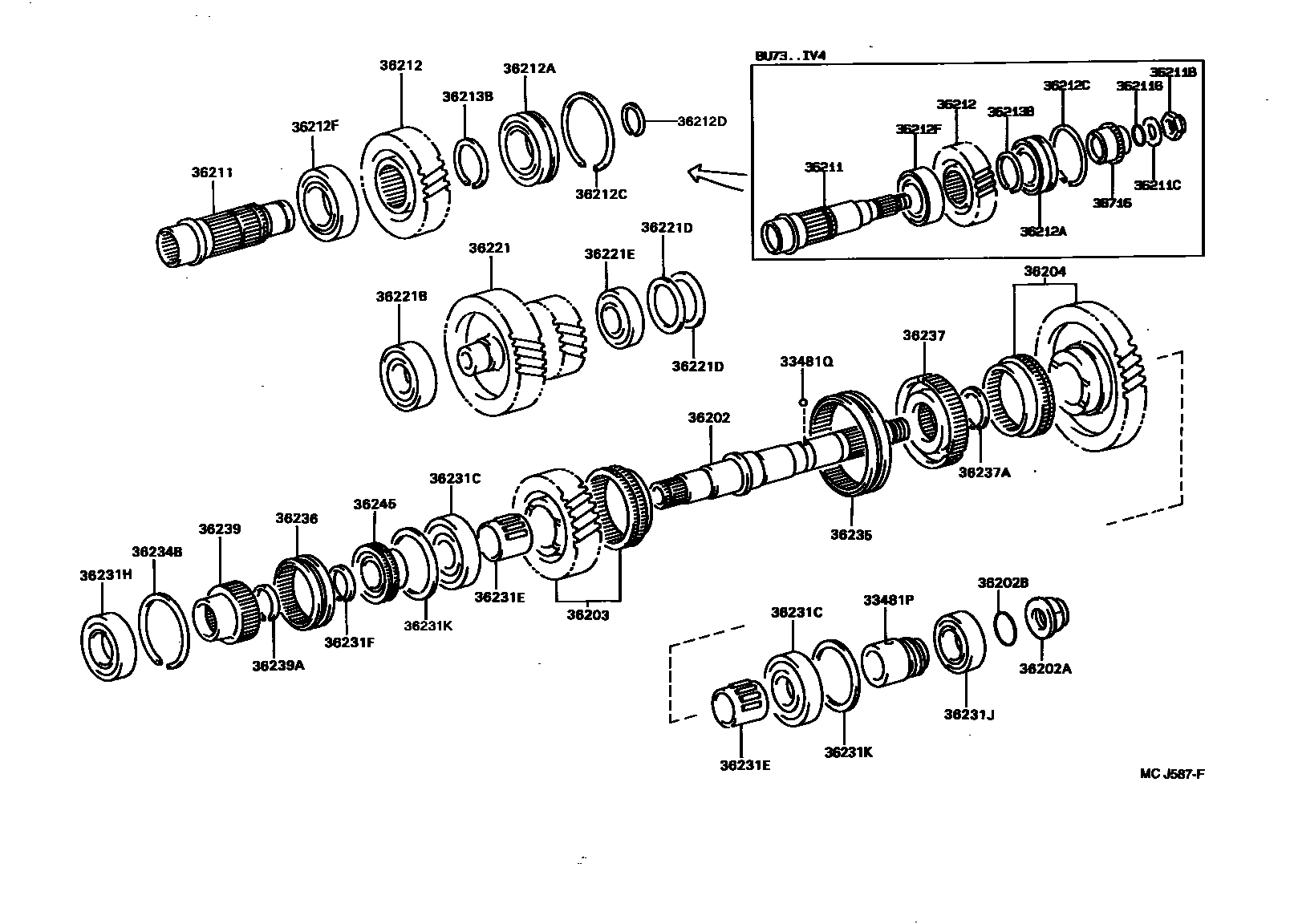

TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36202ANUT(FOR TRANSFER OUTPUT REAR SHAFT)
36202BRING, O(FOR TRANSFER OUTPUT REAR SHAFT)
36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
36211SHAFT, TRANSFER INPUT
36211BNUT (FOR TRANSFER INPUT SHAFT)
36211CWASHER, PLATE (FOR TRANSFER INPUT SHAFT)
36211GRING, O (FOR TRANSFER INPUT SHAFT)
36212GEAR, TRANSFER INPUT
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
36221GEAR, TRANSFER IDLER
36221BBEARING (FOR TRANSFER IDLER GEAR)
36221DWASHER, PLATE(FOR TRANSFER IDLER GEAR)
36221EBEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR)
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
sub90363-40083
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
sub90363-38008
36231KWASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
sub36237-60050
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
36239HUB, TRANSFER DRIVE CLUTCH
36239ARING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB)
36245PIECE, TRANSFER FRONT DRIVE GEAR
36716HUB, POWER TAKE-OFF CLUTCH
36 parts on this diagram · 1 diagram in section
