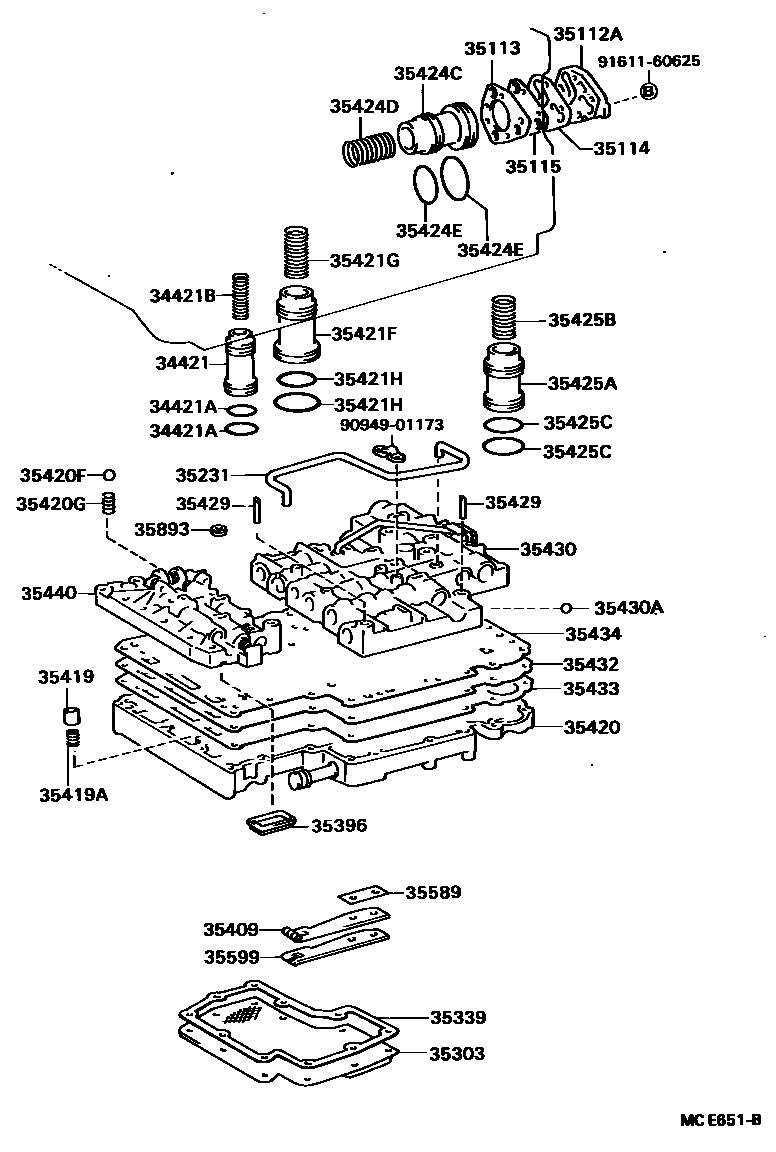

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

34421PISTON, OVERDRIVE BRAKE ACCUMULATOR

main34421-36010iBU66,67,87,88,96..4FC198808-199505

sub34421-37010

34421ARING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

main90301-26003iBU66,67,87,88,96..4FC198808-199505

main90301-29003iBU66,67,87,88,96..4FC198808-199505

34421BSPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

main90501-32013iBU66,67,87,88,96..4FC..DSL198808-199505

main90501-33008iBU96..4FC..TD199001-199505

35112ACOVER, FRONT CLUTCH ACCUMULATOR

main35112-36010iBU66,67,87,88,96..4FC198808-199505

35113GASKET, FRONT CLUTCH ACCUMLATOR, NO.2

main35113-36010iBU66,67,87,88,96..4FC198808-199208

sub35113-60010

main35113-60010iBU66,67,87,88,96..4FC199208-199505

35114GASKET, FRONT CLUTCH ACCUMLATOR, NO.1

main35114-36010iBU66,67,87,88,96..4FC198808-199208

sub35114-60010

main35114-60010iBU66,67,87,88,96..4FC199208-199505

35115PLATE, FRONT CLUTCH ACCUMULATOR

main35115-36010iBU66,67,87,88,96..4FC198808-199505

35231TUBE, LOCK UP SIGNAL VALVE APPLY

main35231-36010iBU66,67,87,88,96..4FC198808-199505

FR X RR VALVE BODY

main35231-36020iBU66,67,87,88,96..4FC198808-199505

RR VALVE BODY

35303STRAINER SUB-ASSY, OIL

main35303-36010iBU66,67,87,88,96..4FC198808-199505

35339GASKET, OIL STRAINER

main35339-36010iBU66,67,87,88,96..4FC198808-199208

sub35339-60020

main35339-60020iBU66,67,87,88,96..4FC199208-199505

35396STRAINER, THROTTLE OIL

main35396-36010iBU66,67,87,88,96..4FC198808-199505

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-36010iBU66,67,87,88,96..4FC198808-198912

main35409-36020iBU66,67,87,88,96..4FC198912-199505

35419VALVE, CHECK, NO.1

main35419-36010iBU66,67,87,88,96..4FC198808-199505

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-10098iBU66,67,87,88,96..4FC198808-199505

35420BODY ASSY, LOWER VALVE

main35420-36012iBU66,67,87,88,96..4FC198808-198909

sub35420-36013

main35420-36013iBU66,67,87,88,96..4FC198909-199505

35420FBALL, CHECK, NO.1

main90360-09001iBU66,67,87,88,96..4FC198808-199505

35420GSPRING, BARREL SHAPED

main90503-04003iBU66,67,87,88,96..4FC198808-199505

35421FPISTON, ACCUMULATOR, NO.2

main35402-36010iBU66,67,87,88,96..4FC..DSL198901-199505

main35423-36010iBU96..4FC..TD199001-199002

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-20104iBU66,67,87,88,96..4FC198808-199505

main90501-40010iBU66,67,87,88,96..4FC..DSL198808-199505

35421HRING (FOR ACCUMULATOR PISTON NO.2)

main90301-29003iBU66,67,87,88,96..4FC198808-199505

main90301-37004iBU66,67,87,88,96..4FC198808-199505

35424CPISTON, C-1 ACCUMULATOR

main35424-36010iBU66,67,87,88,96..4FC198808-199505

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-27008iBU66,67,87,88,96..4FC198808-199505

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-22003iBU66,67,87,88,96..4FC198808-199505

main90301-24002iBU66,67,87,88,96..4FC198808-199505

35425APISTON, C-2 ACCUMULATOR

main35425-36010iBU96..4FC..TD199001-199505

main35425-36020iBU66,67,87,88,96..4FC..DSL198808-199505

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-35009iBU66,67,87,88,96..4FC198808-199505

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-28003iBU66,67,87,88,96..4FC198808-199505

main90301-33006iBU66,67,87,88,96..4FC198808-199505

35429TUBE, LINE PRESSURE

main35429-36010iBU66,67,87,88,96..4FC198808-199505

35430BODY ASSY, REAR UPPER VALVE

main35430-36030iBU96..4FC..TD199001-199002

main35430-36080iBU66,67,87,88,96..4FC..WT..DSL198808-199505

main35430-36090iBU66..4FC..ST198808-199505

*AXC=L404

main35430-36130iBU96..4FC..TD199002-199505

35430ABALL (FOR REAR UPPER VALVE BODY)

main90360-06004iBU66,67,87,88,96..4FC198808-199505

35432PLATE, VALVE BODY, NO.1

main35432-36011iBU66,67,87,88,96..4FC..DSL198808-199505

main35432-36021iBU96..4FC..TD199001-199505

35433GASKET, VALVE BODY, NO.1

main35433-36010iBU66,67,87,88,96..4FC198808-199505

35434GASKET, VALVE BODY, NO.2

main35434-36010iBU66,67,87,88,96..4FC198808-199505

35440BODY ASSY, FRONT UPPER VALVE

main35440-36011iBU66,67,87,88,96..4FC..DSL198808-199505

main35440-36020iBU96..4FC..TD199002-199505

main35440-60021iBU96..4FC..TD199001-199002

35589SPACER, MANUAL DETENT SPRING

main35589-36010iBU66,67,87,88,96..4FC198808-199505

35599COVER, MANUAL DETENT SPRING

main35599-36010iBU66,67,87,88,96..4FC198808-198912

main35599-60010iBU66,67,87,88,96..4FC198912-199505

35893GASKET, CENTER SUPPORT APPLY

main35893-36010iBU66,67,87,88,96..4FC198808-199505

9094901173

main90949-01173

9161160625

main91611-60625

38 parts on this diagram · 5 diagrams in section
