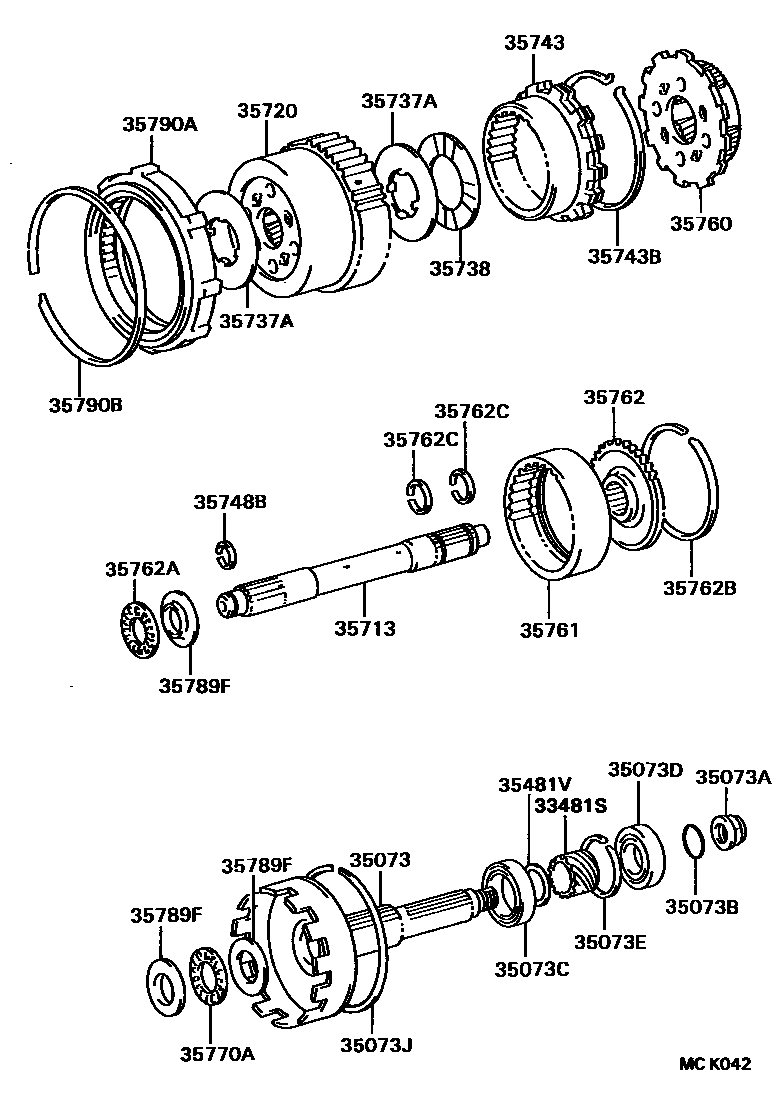

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-36130iBU96..4FC..TD;BU66,67,87,88..4FC..WT198808-199006

sub33481-36131

main33481-36131iBU96..4FC..TD;BU66,67,87,88..4FC..WT199006-199505

main33481-36140iBU66..4FC..ST198808-199006

*AXC=L404

sub33481-36141

main33481-36141iBU66..T3..4FC..WT199006-199505

*AXC=L404

main33481-36180iBU96..4FC..DSL198808-199006

sub33481-36181

main33481-36181iBU96..4FC..DSL199006-199505

main33481-36200iBU66..4FC..ST198808-199006

*AXC=L154

sub33481-36201

main33481-36201iBU66..4FC..ST199006-199505

*AXC=L154

35073SHAFT SUB-ASSY, OUTPUT

main35073-36010iBU66,67,87,88,96..4FC..DSL198808-199505

main35073-36020iBU96..4FC..TD199001-199505

35073ANUT (FOR OUTPUT SHAFT)

main90179-22008iBU66,67,87,88,96..4FC198808-199505

35073BRING, O (FOR OUTPUT SHAFT)

main90301-29002iBU66,67,87,88,96..4FC198808-199505

35073CBEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)

main90363-45008iBU66,67,87,88,96..4FC198808-199505

35073DBEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)

main90363-35019iBU66,67,87,88,96..4FC198808-199505

35073ERING, HOLE SNAP (FOR OUTPUT SHAFT REAR BEARING)

main90521-78001iBU66,67,87,88,96..4FC198808-199505

35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)

main90521-99042iBU96..4FC..TD199001-199505

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90560-35010iBU66,67,87,88,96..4FC..DSL198808-199505

main90560-35012iBU96..4FC..TD199001-199505

35713SHAFT, INTERMEDIATE

main35713-36011iBU66,67,87,88,96..4FC198808-199505

35720GEAR ASSY, FRONT PLANETARY

main35720-36010iBU66,67,87,88,96..4FC..DSL198808-199505

main35720-60010iBU96..4FC..TD199001-199505

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-36010iBU66,67,87,88,96..4FC198808-199208

sub35737-60011

main35737-60011iBU66,67,87,88,96..4FC199208-199505

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-36010iBU66,67,87,88,96..4FC..DSL198808-199505

main35738-60010iBU96..4FC..TD199001-199505

35743GEAR, FRONT PLANETARY RING

main35743-36010iBU66,67,87,88,96..4FC..DSL198808-199505

main35743-60010iBU96..4FC..TD199001-199505

35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)

main90521-99018iBU66,67,87,88,96..4FC198808-199505

35748BRING, INTERMEDIATE SHAFT OIL SEAL

main35748-36010iBU66,67,87,88,96..4FC198808-199505

35760GEAR ASSY, REAR PLANETARY

main35760-36010iBU66,67,87,88,96..4FC..DSL198808-199505

main35760-60010iBU96..4FC..TD199001-199505

35761GEAR, REAR PLANETARY RING

main35761-36010iBU66,67,87,88,96..4FC..DSL198808-199505

main35761-60010iBU96..4FC..TD199001-199505

35762FLANGE, REAR PLANETARY RING GEAR

main35762-36010iBU66,67,87,88,96..4FC..DSL198808-199505

main35762-60010iBU96..4FC..TD199001-199505

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-34001iBU66,67,87,88,96..4FC198808-199505

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-99020iBU66,67,87,88,96..4FC..DSL198808-199505

main90521-99041iBU96..4FC..TD199001-199505

35762CRING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)

main90520-22013iBU66,67,87,88,96..4FC198808-199505

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-34001iBU66,67,87,88,96..4FC198808-199505

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-36090iBU66,67,87,88,96..4FC198808-199505

35790ACLUTCH ASSY, 1 WAY

main35790-36010iBU66,67,87,88,96..4FC198808-199505

sub35790-36020

35790BRING, HOLE SNAP (FOR 1 WAY CLUTCH)

main90521-99021iBU66,67,87,88,96..4FC198808-199407

sub90521-99109

main90521-99109iBU66,67,87,88,96..4FC199407-199505

26 parts on this diagram · 1 diagram in section
