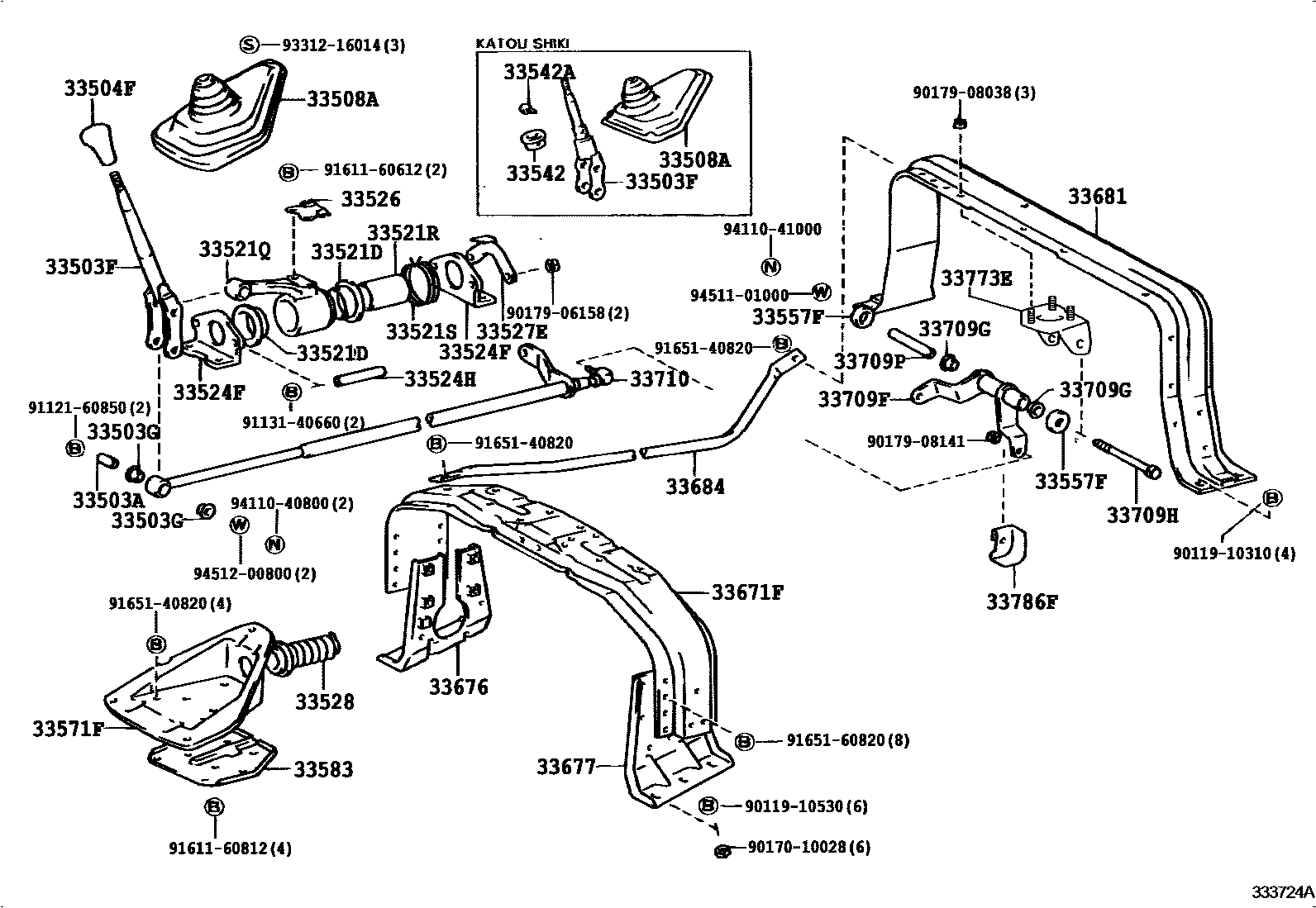

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08009×2iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199401

main90387-08065×2iBU73..03S;BU6#,70,72,74,78,8#,9#..5F199401-199505

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-36010iBU72,73,74..03S198910-199401

main33055-36011iBU72,73,74..03S199401-199505

main33055-36040iBU73..06S199005-199505

main33501-36210iBU6#,70,78,8#,9#..5F..(CBU,IV3)198808-199109

main33501-36211iBU6#,70,78,8#,9#..5F..(CBU,IV3)199401-199505

main33501-36220iBU66..IV4199109-199401

main33501-36221iBU66..IV4199401-199505

main33503-36050iBU66..IV4198808-199109

main33503-36060iBU6#,70,78,8#,9#..5F..(CBU,IV3)198808-199109

main33503-36110iBU66,67,87..4FC198808-199505

main33503-36120iBU88,96..4FC198808-199505

33503GBUSH(FOR SHIFT LEVER)

main90389-11006×4iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-06iBU66..IV4198808-199109

BROWN,TRIM4#

main33504-24010-48iBU66..IV4199109-199505

GRAY,TRIM1#

main33504-35030-B1iBU66..IV4199309-199505

BLUISH GRAY,TRIM1#

sub33504-60121

main33504-36050-04iBU6#,72,74,78,8#,9#..TOY..5F198808-199109

BLUE,TRIM8#

main33504-36050-06iBU66..DYN..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..DYN..5F198808-199109

BROWN,TRIM4#

main33504-36050-B0iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F199109-199309

GRAY,TRIM1#

main33504-36051-B0iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F199309-199505

GRAY,TRIM1#

main33504-36070-04iBU66,67,87,88,96..TOY..4FC198808-199109

BLUE,TRIM8#

main33504-36070-06iBU66,67,87,88,96..DYN..4FC198808-199109

BROWN,TRIM4#

main33504-36070-B0iBU66,67,87,88,96..4FC199109-199505

GRAY,TRIM1#

33508ABOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT)

main33508-36010iBU6#,70,78,8#,9#..5F198808-199109

main33508-36030iBU6#,70,78,8#,9#..5F198808-199109

main33508-36040iBU66,67,87,88,96..4FC198808-199505

main33508-36050iBU72,73,74198910-199505

33521DBUSH (FOR SHIFT LEVER HOUSING)

main90389-38004×2iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-36050iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199401

main33521-36051iBU73..03S;BU6#,70,72,74,78,8#,9#..5F199401-199505

33521RCOLLAR (FOR SHIFT LEVER HOUSING)

main90387-34001iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33521SSPRING (FOR SHIFT LEVER HOUSING)

main90508-26063iBU73..03S;BU6#,70,72,74,83,84,87..5F198808-199505

main90508-26067iBU78,85,88,9#..5F198808-199505

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-36030×2iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33524HCOLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)

main90387-06026×2iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33526PLATE, SHIFT LEVER SUPPORT, NO.1

main33526-36010iBU6#,70,83,84,87..5F198808-199505

main33526-36020iBU72,73,74..03S198910-199505

main33526-36030iBU78,85,88,9#..5F198808-199505

main33526-36040iBU73..06S199005-199505

33527EPLATE, SHIFT LEVER SUPPORT, NO.2

main33527-36130iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33528COVER, CONTROL SHAFT

main33528-36020iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33542KNOB, SPRING BACK SHIFT LEVER

main33542-25010iBU6#,70,78,8#,9#..5F198808-199505

33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)

main90159-40109×2iBU6#,70,78,8#,9#..5F198808-199505

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-36020×2iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33571FBRACKET, CONTROL SHAFT, LOWER NO.2

main33571-36090iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33583BRACKET, CONTROL SHAFT, LOWER NO.2

main33583-36050iBU6#,70,78,8#,9#..5F..(CBU,IV3)199109-199505

33671FSUPPORT, CONTROL ROD, NO.1

main33607-36080iBU78,85,88,9#198808-199505

main33607-36090iBU90..T3..IV3198808-198910

main33671-36080iBU87..V;BU6#,70,84,87..DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4198808-199305

main33671-36081iBU87..V;BU6#,70,84,87..DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4199305-199505

main33671-36090iBU60,66,87..DM5,T4;BU61,72,73,74,83,84..(DM3,DM4,DM5,T3,T4,TW1)..WT198808-199505

33676SUPPORT, CONTROL ROD MEMBER, RH (FOR FLOOR SHIFT)

main33676-36011iBU6#,70,72,73,74,83,84,87198808-199505

33677SUPPORT, CONTROL ROD MEMBER, LH (FOR FLOOR SHIFT)

main33677-36010iBU6#,70,72,73,74,83,84,87198808-199505

33681MEMBER, CONTROL ROD, REAR

main33681-36011iBU88,96..5F;BU67..DM4,T3;BU60,61,66,68,70,78,83,84,87,91,94199008-199505

main33681-36020iBU67..DM1199008-199505

33684ROD, CONTROL MEMBER BRACE

main33684-36010iBU6#,70,83,84,87..DSL198808-199505

main33684-36030iBU78,85,88,9#..5F198808-199505

main33684-36050iBU68..LPG199311-199505

33709FSHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)

main33709-36290iBU6#,70,83,84,87..5F198808-199505

main33709-36310iBU78,85,90,95;BU88,91,94,96..5F..DSL198808-199505

main33709-36340iBU72,73,74..03S198910-199505

main33709-36350iBU88,9#..5F..TD198910-199505

33709GBUSH (FOR CROSS SHAFT, NO.1

main90386-13007×2iBU73..03S;BU6#,70,72,74,78,8#,9#..5F198808-199505

33709HBOLT, HEXAGON (FOR CROSS SHAFT)

main90101-10117iBU78,85,88,9#..5F198808-199505

main90101-10279iBU73..03S;BU6#,70,72,74,83,84,87..5F198808-199505

33709PCOLLAR (FOR CROSS SHAFT)

main90387-10002iBU73..03S;BU6#,70,72,74,83,84,87..5F198808-199505

main90387-10064iBU78,85,88,9#..5F198808-199505

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-36190iBU6#,70,83,84,87..5F198808-199401

main33710-36191iBU6#,70,84,87..5F199401-199505

main33710-36210iBU78,85,88,9#..5F198808-199401

main33710-36211iBU78,88,9#..5F199401-199505

main33710-36250iBU72,73,74..03S198910-199401

main33710-36251iBU72,73,74..03S199401-199505

33773ESUPPORT, CROSS SHAFT, NO.1

main33773-36080iBU6#,70,83,84,87..5F198808-199505

main33773-36130iBU72,73,74..03S198910-199505

33786FINSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIFT)

main33786-36020iBU6#,70,83,84,87..5F..(CBU,IV3)198808-199505

9011910310

main90119-10310

9011910530

main90119-10530

9017010028

main90170-10028

9017906158

main90179-06158

9017908038

main90179-08038

9017908141

main90179-08141

9112160850

main91121-60850

9113140660

main91131-40660

9161160612

main91611-60612

9161160812

main91611-60812

9165140820

main91651-40820

9165160820

main91651-60820

9331216014

main93312-16014

9411040800

main94110-40800

9411041000

main94110-41000

9451101000

main94511-01000

9451200800

main94512-00800

48 parts on this diagram · 11 diagrams in section
