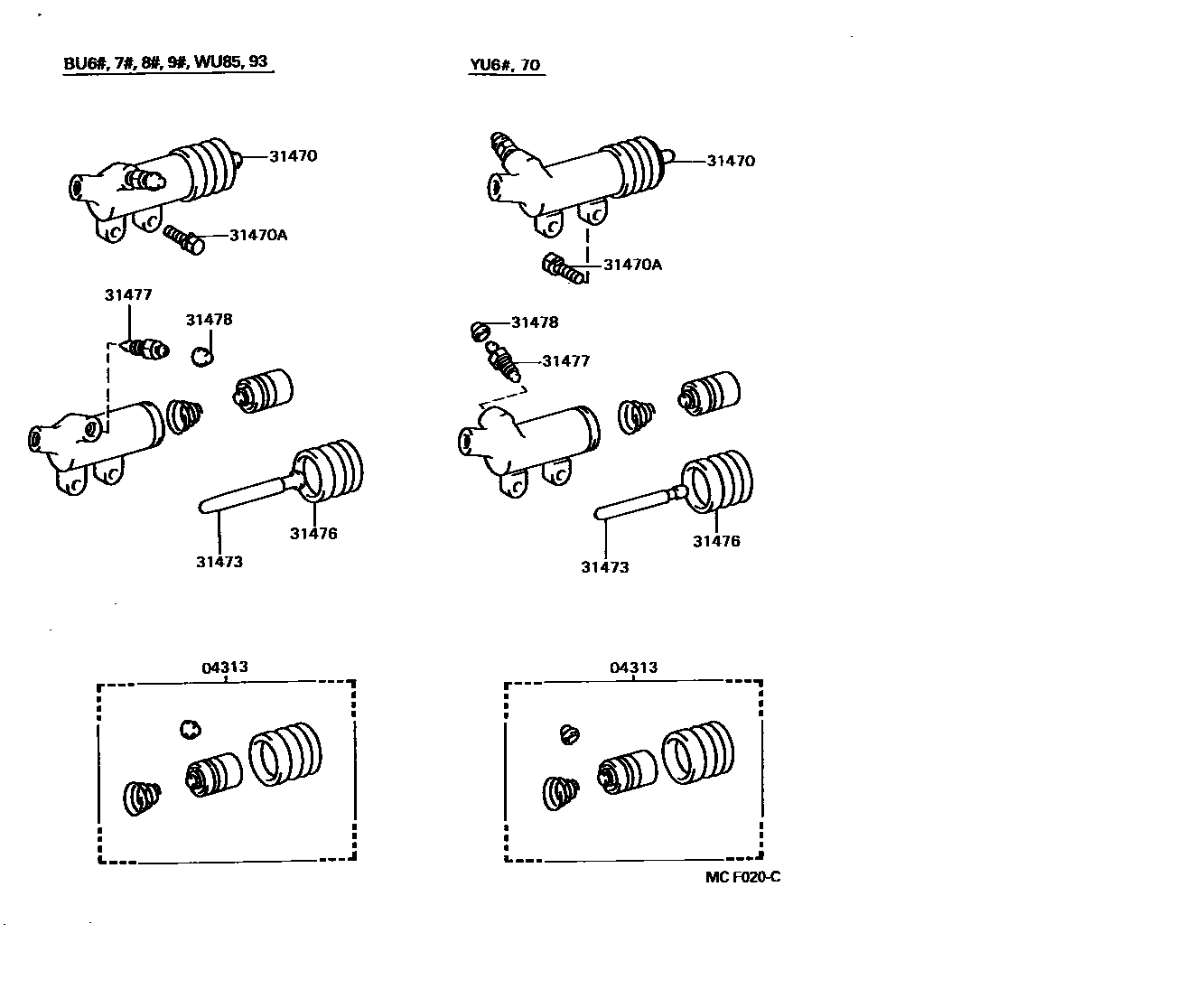

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22030iBU68..LPG199311-199505

main04313-36090iBU66..IV4198808-199408

sub04313-36160

main04313-36100iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F198808-199206

sub04313-36140

main04313-36140iBU67,87,88,96..5F199206-199408

sub04313-36150

main04313-36150iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)199408-199505

main04313-36160iBU66..IV4199408-199505

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36150iBU66..IV4198808-199408

sub31470-36151

main31470-36151iBU66..IV4199408-199505

main31470-36211iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F198808-199206

sub31470-36212

main31470-36212iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)199206-199408

sub31470-36213

main31470-36213iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)199408-199505

main31470-37030iBU68..LPG199311-199505

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iBU68..LPG199311-199505

sub91611-B0825

main91611-G0820iBU88..T2..5F..IV3;BU66..5F..(CBU,IV3);BU88,94..T4..5F..DSL;BU88,94..T3..(275,30T);BU60,61,67,68,7#,83,84,87,91,96..5F198808-199505

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)198808-199505

main31473-32010iBU68..LPG199311-199505

main31473-36040iBU66..IV4198808-199505

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F198808-199505

main31476-36020iBU66..IV4198808-199505

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBU6#,70,8#,9#..5F198808-199505

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBU6#,70,8#,9#..5F198808-199505

7 parts on this diagram · 1 diagram in section
