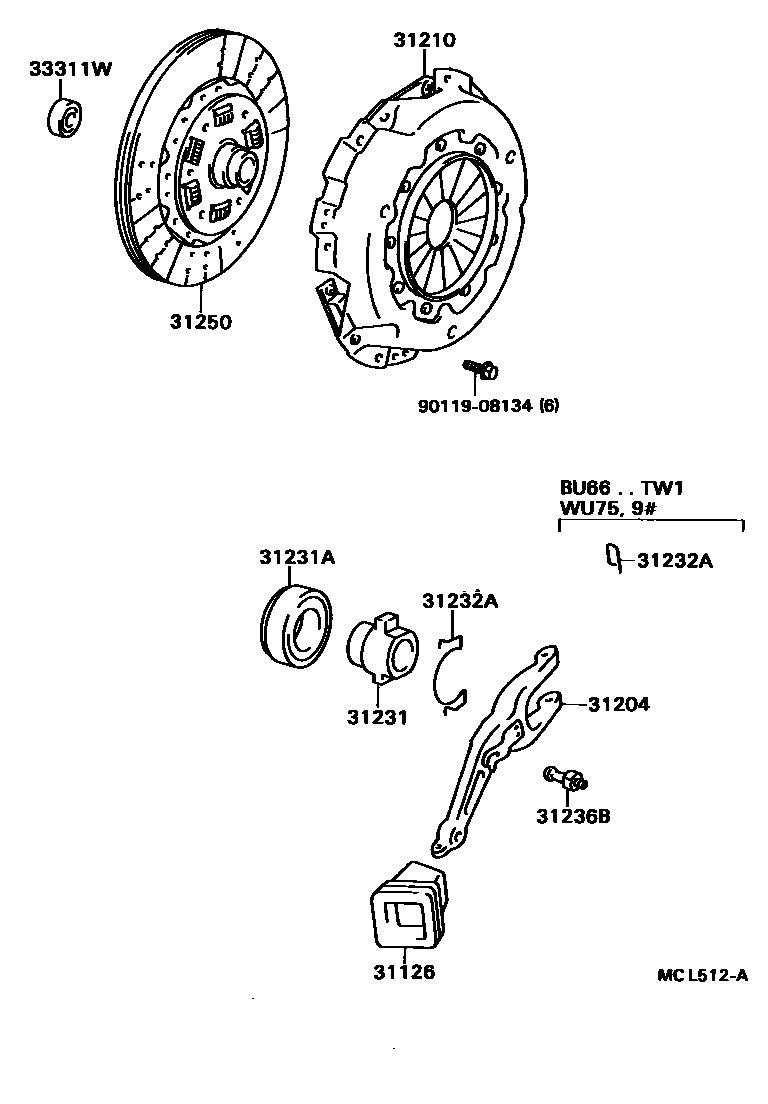

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iBU66..IV4198808-199505

main31126-20060iBU6#,70,8#,9#..5F..(CBU,IV3)198808-198910

main31126-36050iBU72,73,74,78,88,9#..5F198910-199505

main31126-36080iBU6#,70,83,84,87..5F..DSL..(CBU,IV3)199301-199505

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iBU68..LPG199311-199505

main31204-35031iBU6#,70,8#,9#..5F..(CBU,IV3)198808-198910

main31204-36080iBU66..IV4198808-198910

main31204-36100iBU72,73,74,78,88,9#..5F198910-199505

main31204-36130iBU66..IV4198910-199505

31210COVER ASSY, CLUTCH

main31210-35200iBU68..LPG199311-199505

sub31210-26170

main31210-36140iBU60,61,70,83,84198808-198910

main31210-36150iBU66,67,85,87,88,9#..5F198808-198910

sub31210-36340

main31210-36160iBU60,61,70,83,84198910-199505

sub31210-36161

main31210-36170iBU66,67,68,78,87,88,9#..5F..DSL198910-199505

sub31210-36340

main31210-36180iBU72,73,74198910-199505

sub31210-36181

main31210-36190iBU88,9#..5F..TD198910-199505

sub31210-36191

31231HUB, CLUTCH RELEASE BEARING

main31231-36100iBU85,90,95198808-198910

main31231-36110iBU66..IV4198808-198910

main31231-36120iBU66..5F..03S198902-198910

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45013iBU6#,70,8#,9#..5F198808-198910

31232ACLIP, RELEASE BEARING HUB

main31232-30010×2iBU66..IV4198808-198910

main31232-35010iBU6#,70,8#,9#..5F..(CBU,IV3)198808-198910

main31232-35020iBU68..LPG199311-199505

NSK BEARING

main31232-35030iBU68..LPG199311-199505

NACHI BEARING

main31232-36010iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)198910-199505

main31232-36030iBU66..IV4198910-199505

31236BSUPPORT, RELEASE FORK

main31236-30060iBU68..LPG199311-199505

main31236-35030iBU6#,70,8#,9#..5F..(CBU,IV3)198808-198910

main31236-36030iBU66..IV4198808-199505

main31236-36040iBU72,73,74,78,88,9#..5F198910-199505

31250DISC ASSY, CLUTCH

main31250-34010iBU68..LPG199311-199505

sub31250-35400

main31250-36401iBU85,90,95198808-198910

sub31250-36402

main31250-36410iBU6#,70,78,83,84,87,88,91,94,96..5F198808-199006

main31250-36411iBU6#,70,78,8#,9#..5F..(DSL,TD)199006-199412

main31250-36412iBU96..5F;BU6#,70,78,8#,91,94..5F..DSL199412-199505

sub31250-37070

main31250-36470iBU72,73,74198910-199505

sub31250-36471

main31250-36481iBU88,91,94..TD199412-199505

sub31250-36482

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBU6#,7#,8#,9#..5F198808-199505

sub90363-12024

9011908134

main90119-08134

10 parts on this diagram · 2 diagrams in section
