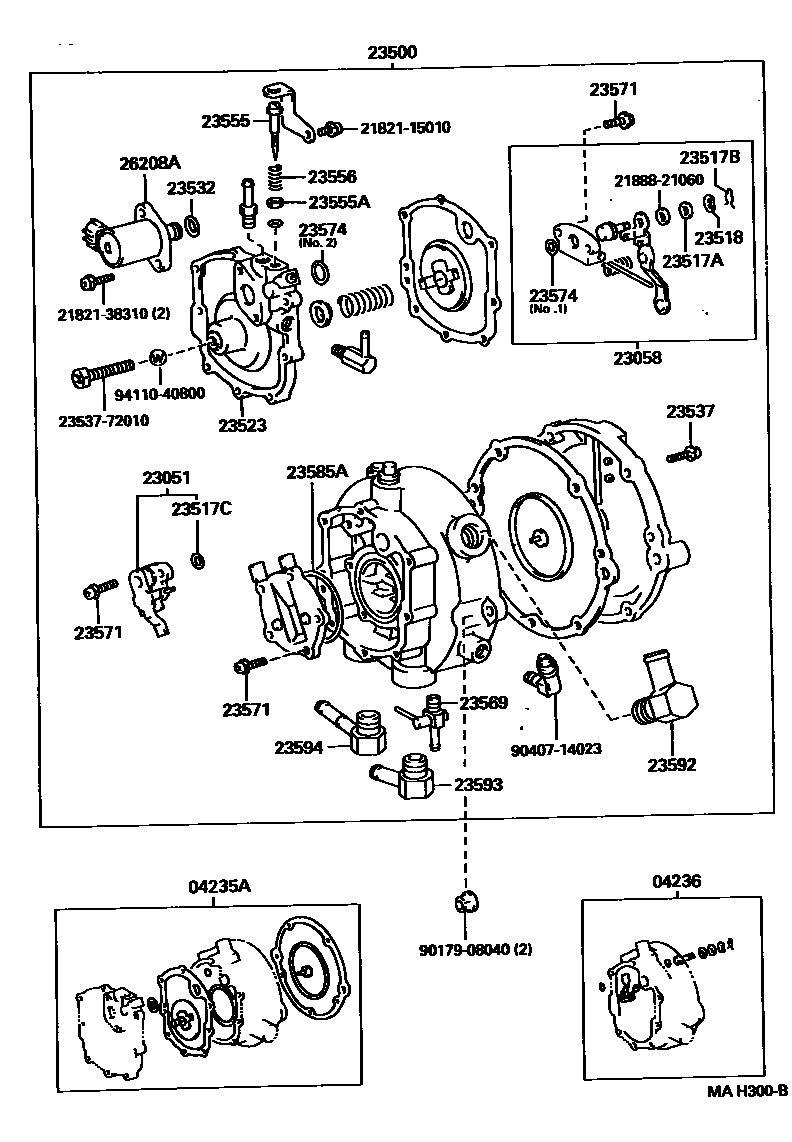

LPG OR CNG REGULATOR
04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
04236VALVE KIT, LPG REGULATOR
sub04236-75020
23051VALVE SUB-ASSY, 1ST
23058VALVE SUB-ASSY, 2ND
sub23058-48010
23500REGULATOR ASSY, LPG(CNG)
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)
23517CGASKET(FOR ELASTIC FACE VALVE)
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23523COVER, 1ST REGULATOR
sub23523-70040
23532RING, O, NO.2(FOR BULB)
23537SCREW(FOR 2ND REGULATOR COVER SET)
23555SCREW, IDLE ADJUST
sub23555-48050
23555AWASHER, IDLE ADJUST SCREW
23556SPRING, IDLE ADJUST SCREW
23569COCK, DRAIN
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23574RING, O, NO.1(FOR BULB)
23585ARING, O(FOR PREHEATER)
23592UNION, NO.2, FUEL HOSE
23593UNION, NO.3
23594UNION, NO.4, WATER HOSE
26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)
sub26208-73131
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188821060WASHER(FOR POSITIONER VALVE SET)
main21888-21060
2353772010SCREW(FOR 2ND REGULATOR COVER SET)
main23537-72010
9017908040
main90179-08040
9040714023
main90407-14023
9411040800
main94110-40800
30 parts on this diagram · 1 diagram in section
