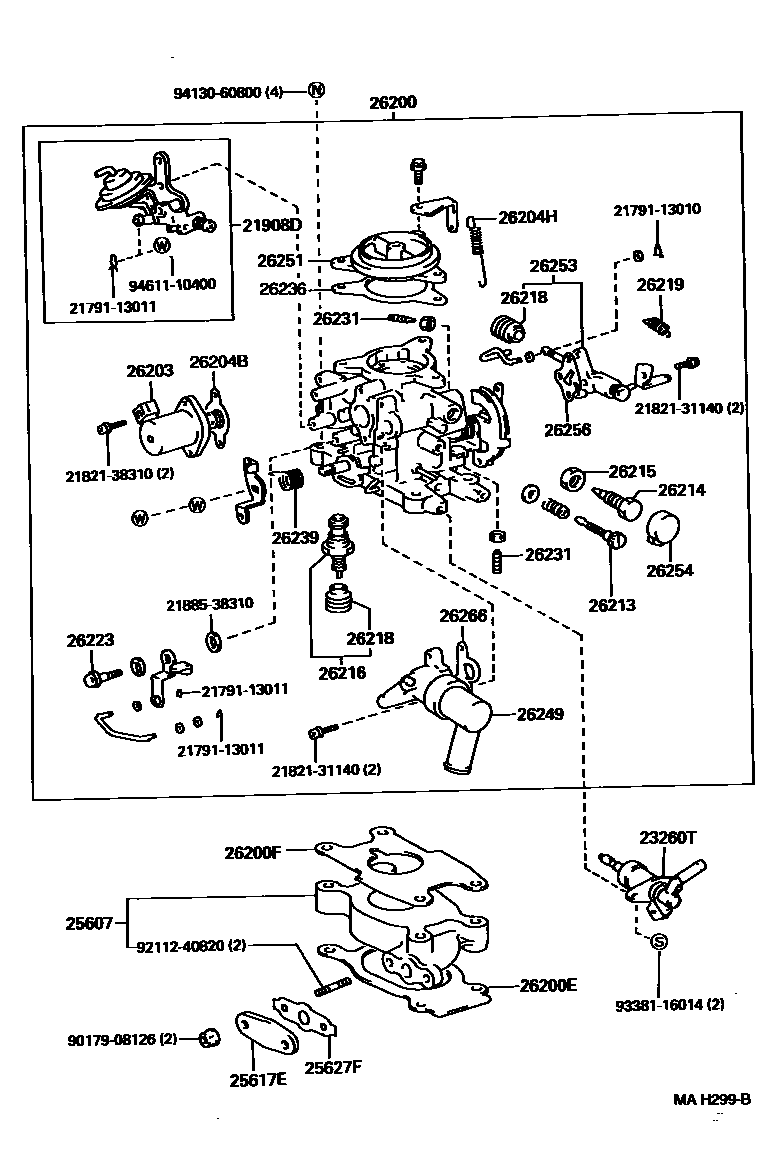

LPG CARBURETOR
21908DACTUATOR SUB-ASSY, IDLE-UP
23260TINJECTOR ASSY, LPG
25607ADAPTER SUB-ASSY, EGR VALVE
25617EPLATE, EGR HOLE COVER
25627FGASKET, EGR VALVE
26200CARBURETOR ASSY, LPG
26200EGASKET, CARBURETOR, NO.1
26200FGASKET, CARBURETOR, NO.2
26203VALVE SUB-ASSY, SOLENOID, NO.2
26204BGASKET, SOLENOID VALVE(FOR LPG)
26204HSPRING, THROTTLE RETURN(FOR LPG)
26213SCREW, ADJUST
sub26214-10010
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26216VALVE, POWER
26218BOOT(FOR POWER VALVE)
26219SPRING, POWER VALVE
26223SCREW, SET(FOR POWER VALVE CAM)
26231SCREW(FOR LPG CARBURETOR)
26236GASKET, AIR HORN
26239SPRING
26249UNION, FUEL HOSE(FOR LPG)
26251HORN, AIR
26253VALVE, CHANGE(FOR SLOW)
26254CAP, POWER SCREW LIMIT
26256GASKET, CHANGE VALVE
26266GASKET, FUEL INLET UNION
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2179113011RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13011
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188538310
main21885-38310
9017908126
main90179-08126
9211240820
main92112-40820
9338116014
main93381-16014
9413060800
main94130-60800
9461110400
main94611-10400
37 parts on this diagram · 1 diagram in section
