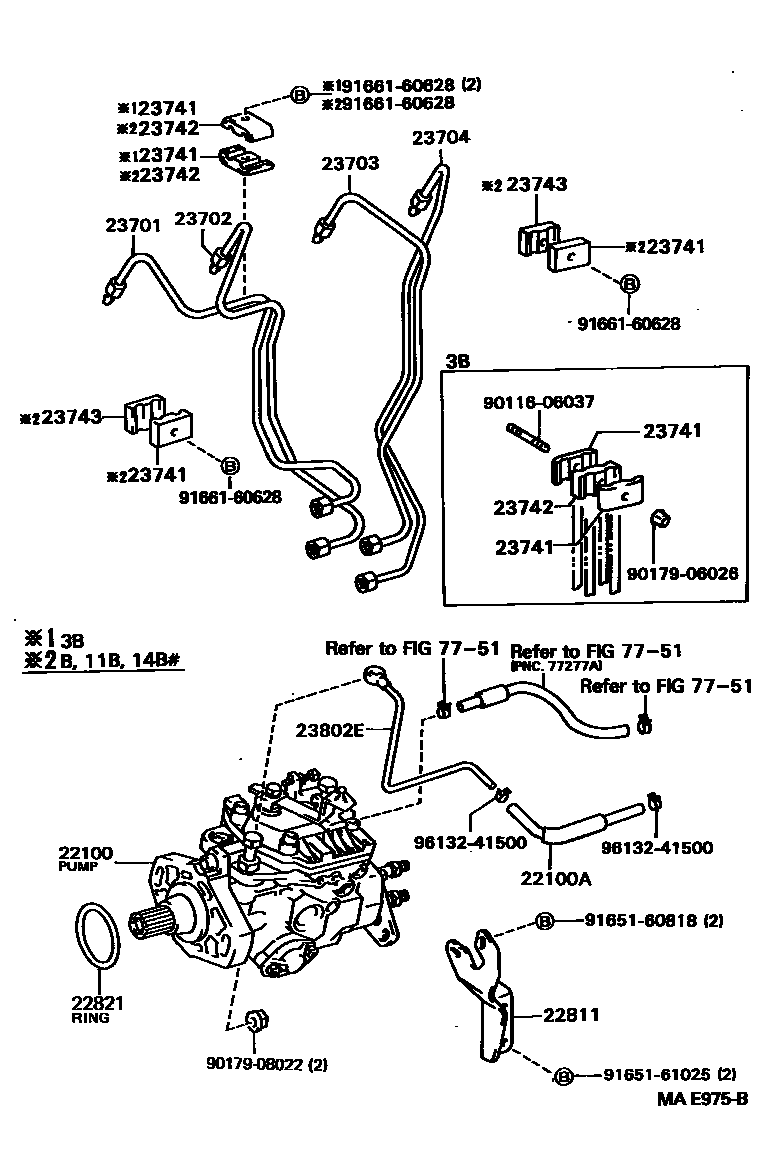

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56290iB..BU60,70,83198808-199505

sub22100-56430

main22100-56350i11B..BU61,84198808-199505

sub22100-56440

main22100-56430iB..BU70,83;B..BU60..T3..ST..IV3;B..BU60..T1,TW1,TW2,TW4;B..BU60..(T2,T3,T4)..CBU199109-199505

main22100-56430iB..BU60..WT..20T..IV3199109-199505

main22100-56440i11B..BU84;11B..BU61..CBU;11B..BU61..ST..IV3199109-199505

main22100-56440i11B..BU61..WT..IV3199210-199505

main22100-56440i11B..BU61..WT..IV3199109-199210

main22100-58202i3B..BU68198910-199505

sub22100-58840

main22100-58272i13BT..BU85,90,95198808-198910

main22100-58470i14B..BU87..V;14B..BU67,72,74..5F;14B..BU66,87..5F..(175,20T);14B..BU88..(T2,T3,TW1)..5F..20T198808-199109

sub22100-58570

main22100-58480i14B..BU78,94;14B..BU88..T4..5F;14B..BU66,87,88..T3..5F..(275,30T)198808-199109

sub22100-58580

main22100-58490i14B..BU66,67,87,88..4FC198808-199109

sub22100-58590

main22100-58500i14B..BU87..(T3,T4)..5F..20T..IV3198808-199109

sub22100-58600

main22100-58500i14B..BU66..TR..5F..WT..20T..IV3198808-199109

sub22100-58600

main22100-58500i14B..BU87..V;14B..BU87..T2,TW1;14B..BU67,72,74..5F;14B..BU66..5F..ST..IV3;14B..BU66..TR..5F..20T..CBU;14B..BU87..(T3,T4)..20T..CBU;14B..BU66..DM1,DM2,DM3,DM5,TW4;14198808-199109

sub22100-58600

main22100-58510i14B..BU78,94;14B..BU88..T4..5F;14B..BU66,87,88..T3..5F..(275,30T)198808-199109

sub22100-58610

main22100-58570i14B..BU87..V;14B..BU66,87..5F..(175,20T);14B..BU88..(T2,T3,TW1)..5F..20T;14B..BU67,72,73,74..5F..(CBU,IV3)199109-199505

main22100-58570i14B..BU67,72,74..5F;14B..BU88..(T2,T3)..5F..20T;14B..BU66,87..(DM2,DM3,DM5,T2,T3,T4)..5F..20T198808-199109

main22100-58580i14B..BU78,9#..5F;14B..BU88..T4..5F;14B..BU66,87,88..T3..5F..(275,30T)199109-199505

main22100-58580i14B..BU91,96..5F198808-199109

main22100-58590i14B..BU66..TOY..T4..4FC..IV3199107-199109

main22100-58590i14B..BU66..TOY..T4..4FC..IV3198808-199109

main22100-58590i14B..BU88..DYN..4FC..30T..IV3199008-199109

main22100-58590i14B..BU88..DYN..4FC..30T..IV3198910-199109

main22100-58590i14B..BU96..4FC198808-199505

main22100-58600i14B..BU72..T4..IV3199109-199505

main22100-58600i14B..BU72..T4..CBU;14B..BU72..DM4,DM5,T3;14B..BU66,67,87..5F..03S..20T;14B..BU74,88..5F..03S..20T..CBU198808-199109

main22100-58600i14B..BU74..IV3;14B..BU72..T4..IV3198910-199107

main22100-58600i14B..BU87..T2;14B..BU72..T4..CBU;14B..BU66..DM2,DM3,DM5;14B..BU66..5F..ST..IV3;14B..BU66..TR..5F..20T..CBU;14B..BU87..(T3,T4)..20T..CBU;14B..BU88..(T2,T3)..5F..20T.198808-199109

main22100-58600i14B..BU88..T2..5F..IV3198808-199109

main22100-58600i14B..BU88..T2..5F..IV3;14B..BU87..(T3,T4)..5F..20T..IV3199109-199505

main22100-58600i14B..BU88..T2..5F..IV3;14B..BU87..(T3,T4)..5F..20T..IV3199109-199505

main22100-58600i14B..BU87..V;14B..BU74..CBU;14B..BU87..T2,TW1;14B..BU74..30T..IV3;14B..BU66..5F..ST..IV3;14B..BU66,72..TR..5F..20T..CBU;14B..BU87..(T3,T4)..5F..20T..CBU;14B..BU88..199210-199505

main22100-58600i14B..BU87..(T3,T4)..5F..20T..IV3199107-199109

main22100-58600i14B..BU87..T2;14B..BU72..T4..CBU;14B..BU66..DM2,DM3,DM5;14B..BU66..5F..ST..IV3;14B..BU87..(T3,T4)..20T..CBU;14B..BU66,74..TR..5F..20T..CBU;14B..BU88..(T2,T3)..5F..2199108-199109

main22100-58610i14B..BU88..TOY..T4..5F..IV3;14B..BU88..DYN..T4..5F..20T..IV3199210-199505

main22100-58610i14B..BU88..T3..30T..IV3198808-199109

main22100-58610i14B..BU88..T3..30T..IV3198808-199505

main22100-58610i14B..BU78,94;14B..BU88..275;14B..BU88..T4..5F;14B..BU88..T3..30T..CBU;14B..BU66,87..5F..(275,30T)198808-199109

main22100-58610i14B..BU88..DYN..T4..5F..30T..IV3199109-199309

main22100-58610i14B..BU88..TOY..T4..5F..IV3;14B..BU88..DYN..T4..5F..20T..IV3199109-199505

main22100-58650i14B..BU66..IV4198808-199505

main22100-58780i14BT..BU88,9#..5F198910-199505

main22100-58790i14BT..BU96..4FC199001-199505

main22100-58800i14B..BU73..IV4199005-199505

main22100-58840i3B..BU68199109-199505

main22100-58850i14B..BU66..30T..IV3199111-199505

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-56060iB,11B,14B#,3B..BU6#,70,78,83,84,87,88,91,94,96198808-199505

main23801-56060i13BT..BU85,90,95198808-198910

main23801-58011i13BT..BU85,90..IV3198808-199001

main23802-56040i13BT..BU85,90,95198808-198910

main23802-58010i13BT..BU85,90..IV3198808-199001

main95332-10022i14B..BU72,73,74198910-199505

sub95332-10030

22811STAY, INJECTION PUMP, NO.1

main22811-56040i13BT..BU85,90,95198808-198910

main22811-56050iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96198808-199505

22821GASKET, INJECTION PUMP

main90301-49003iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96198808-199505

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56060i13BT..BU85,90,95198808-198910

main23701-56070iB..BU60,70,83198808-199505

main23701-56080i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

main23701-58010i3B..BU68198910-199505

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56060i13BT..BU85,90,95198808-198910

main23702-56070iB..BU60,70,83198808-199505

main23702-56080i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

main23702-58010i3B..BU68198910-199505

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56060i13BT..BU85,90,95198808-198910

main23703-56070iB..BU60,70,83198808-199505

main23703-56080i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

main23703-58010i3B..BU68198910-199505

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56060i13BT..BU85,90,95198808-198910

main23704-56070iB..BU60,70,83198808-199505

main23704-56080i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96198808-199505

main23704-58010i3B..BU68198910-199505

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010iB,11B,14B#..BU60,61,66,67,7#,83,84,87,88,91,94,96198808-199505

main23741-56010i13BT..BU85,90,95198808-199505

23742CLAMP, INJECTION PIPE, NO.2

main23741-56010iB,11B,14B#..BU60,61,66,67,7#,83,84,87,88,91,94,96198808-199505

main23741-56020i3B..BU68198910-199505

sub23741-56021

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010iB,11B,14B#..BU60,61,66,67,7#,83,84,87,88,91,94,96198808-199505

23802EPIPE SUB-ASSY, FUEL

main23801-56090iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96198808-199505

7751

9011606037

main90116-06037

9017906026

main90179-06026

9017908022

main90179-08022

9165160818

main91651-60818

9165161025

main91651-61025

9166160628

main91661-60628

9613241500

main96132-41500
