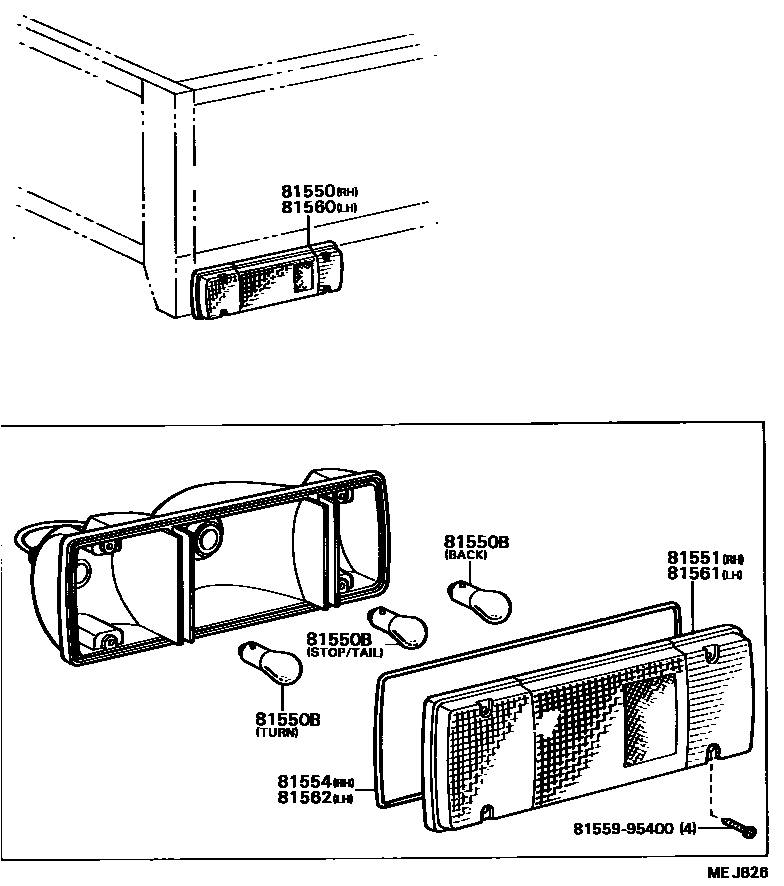

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39455iBU6#,8#,9#198708-198808

main81550-92605iBU70198708-198808

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16021×2iBU6#,8#,9#198708-198808

main99134-11250×4iBU6#,70,8#,9#198708-198808

main99134-22250×2iBU70198708-198808

81551LENS, REAR COMBINATION LAMP, RH

main81551-92605iBU70198708-198808

main81551-95400iBU6#,8#,9#198708-198808

sub81554-60441

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-95400iBU70198708-198808

main81554-92605iBU70198708-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81550-92605iBU70198708-198808

main81560-39425iBU6#,8#,9#198708-198808

81561LENS, REAR COMBINATION LAMP, LH

main81551-92605iBU70198708-198808

main81561-95400iBU6#,8#,9#198708-198808

sub81564-60371

81562GASKET, REAR COMBINATION LAMP LENS, LH

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

8 parts on this diagram · 2 diagrams in section
