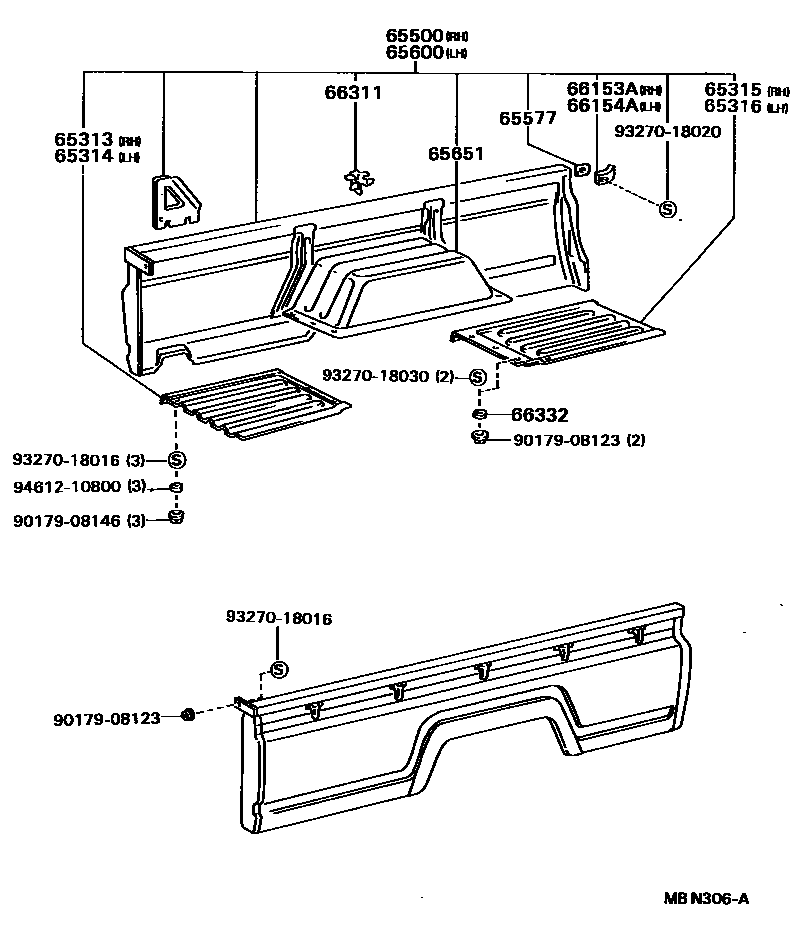

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-95407iBU60..T1..CBU198708-198808

sub65313-37050

main65313-95408iBU60..ST..175..CBU198708-198711

main65313-95409iBU60..ST..175..CBU198711-198808

sub65313-37060

65314PANEL, FLOOR FRONT CORNER, LH

main65314-95406iBU60..T1..CBU198708-198808

sub65314-37010

main65314-95407iBU60..ST..175..CBU198708-198711

main65314-95408iBU60..ST..175..CBU198711-198808

sub65314-37020

65315PANEL, FLOOR REAR CORNER, RH

main65315-95407iBU60..(T1,TW1)..CBU198708-198808

sub65315-37010

65316PANEL, FLOOR REAR CORNER, LH

main65316-95407iBU60..(T1,TW1)..CBU198708-198808

sub65316-37010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-92730iBU60..WT..175..CBU198708-198808

main65500-92731iBU6#..(T2,T3,T4)..20T..CBU198708-198808

main65500-92732iBU62..275..CBU198708-198808

main65500-92843iBU82..T3..20T..CBU198708-198808

main65500-92845iBU93,95..CBU198708-198808

sub65500-37010

main65500-92846iBU82..06S..CBU198708-198808

main65500-92847iBU85..06S..CBU198708-198808

main65500-92848iBU82..(275,30T)..CBU;BU80,81,82..(T2,T4)..CBU198708-198808

main65500-92849iBU85,90..03S..CBU198708-198808

main65500-92856iBU93,95..CBU198708-198808

FRONT

main65500-93108iBU64..DM4..CBU198708-198808

main65500-93109iBU64..DM1198708-198808

main65500-93110iBU62..DM2..CBU198708-198808

main65500-93111iBU62..DM2..CBU198708-198808

main65500-93301×2iBU62..DM3198708-198808

main65500-95429iBU60..ST..175..CBU198708-198808

sub65500-37140

main65500-95430iBU60..T1..CBU198708-198808

sub65500-37130

main65660-92803iBU93,95..CBU198708-198808

REAR

65577RETAINER, TAIL GATE LATCH FEMALE

main65577-95012iBU60..(T1,TW1)..CBU198708-198808

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-92730iBU60..WT..175..CBU198708-198808

main65600-92731iBU6#..(T2,T3,T4)..20T..CBU198708-198808

main65600-92732iBU62..275..CBU198708-198808

main65600-92843iBU82..T3..20T..CBU198708-198808

main65600-92845iBU93,95..CBU198708-198808

sub65600-37010

main65600-92846iBU82..06S..CBU198708-198808

main65600-92847iBU85..06S..CBU198708-198808

main65600-92848iBU82..(275,30T)..CBU;BU80,81,82..(T2,T4)..CBU198708-198808

main65600-92849iBU85,90..03S..CBU198708-198808

main65600-92856iBU93,95..CBU198708-198808

FRONT

main65600-93108iBU62..DM2..CBU198708-198808

sub65600-93111

main65600-93109iBU64..DM4..CBU198708-198808

main65600-93110iBU64..DM1198708-198808

main65600-93112iBU62..DM2..CBU198708-198808

main65600-95420iBU60..T1..CBU198708-198808

sub65600-37130

main65600-95422iBU60..ST..175..CBU198708-198808

sub65600-37140

main65670-92803iBU93,95..CBU198708-198808

REAR

65651PANEL, WHEEL HOUSE

main65651-95014iBU60..(T1,TW1)..CBU198708-198808

sub65651-37010

66153ALATCH, TAIL GATE FEMALE, RH

main66153-95012iBU60..(T1,TW1)..CBU198708-198808

66154ALATCH, TAIL GATE FEMALE, LH

main66153-95012iBU60..(T1,TW1)..CBU198708-198808

66311HOOK, ROPE

main66311-93105×8iBU62,64..(DM1,DM2)..CBU198708-198808

main66311-95010×5iBU60..T1..CBU198708-198808

sub66311-90K00

66332CUSHION, RUBBER

main66332-95A00×4iBU60..(T1,TW1)..CBU198708-198808

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

18 parts on this diagram · 8 diagrams in section
