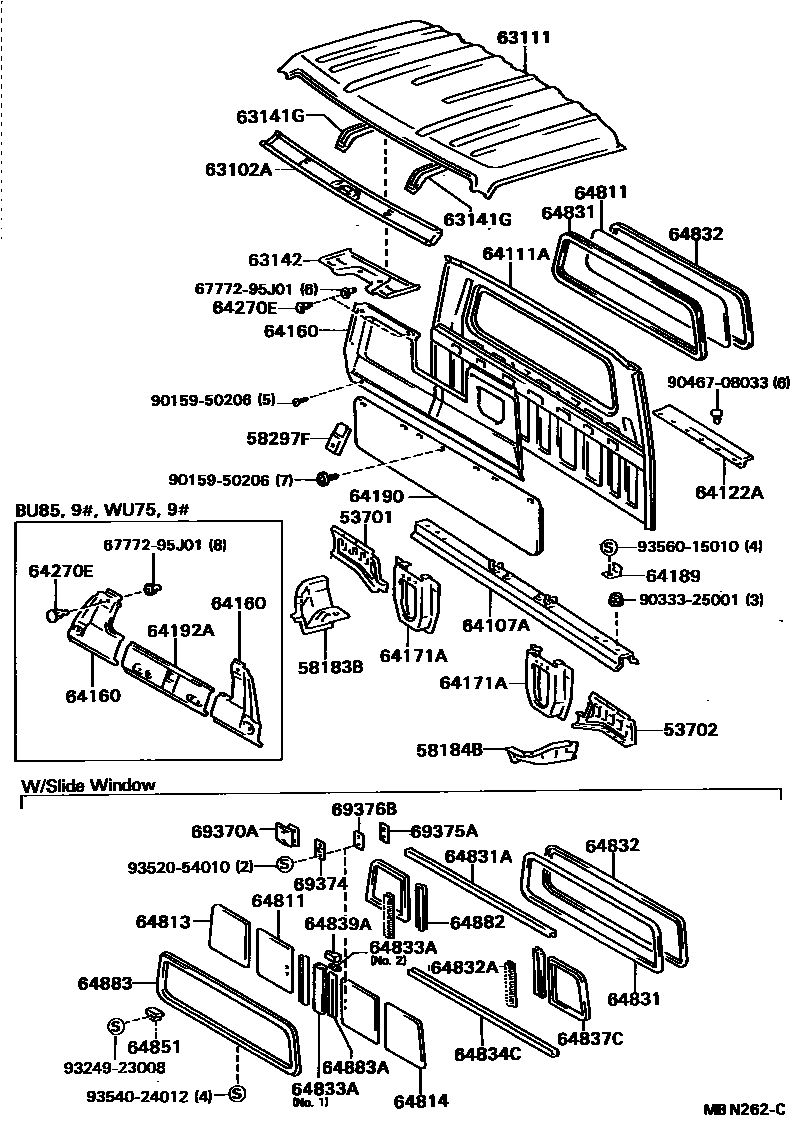

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95408iBU6#,80,81,82..03S198708-198808

sub53701-95407

main53703-92600iBU70198708-198808

main53703-92607iBU85..06S198708-198808

main53717-95413iBU60,62,82..06S198708-198808

sub53717-95411

main53717-95414iBU85,9#..03S198708-198808

sub53717-95410

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95413iBU6#,80,81,82..03S198708-198808

sub53702-95412

main53704-92600iBU85..06S198708-198808

main53704-92601iBU70198708-198808

main53718-95414iBU60,62,82..06S198708-198808

sub53718-95412

main53718-95415iBU85,9#..03S198708-198808

sub53718-95411

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95406iBU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4198708-198808

sub58183-95405

main58183-95407iBU85,9#..03S198708-198808

sub58183-95404

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95405iBU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4198708-198808

sub58184-95404

main58184-95406iBU6#,8#,9#..03S198708-198808

sub58184-95403

58297FREINFORCEMENT, SEAT BELT ANCHOR, NO.2

main58297-95401iBU85..DYN..T3..30T..DSL..IV3198708-198808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-92600iBU62,70..HRF,TW1198708-198808

main63102-95403iBU85,90,93,95..TR..03S198708-198808

main63132-95418iBU6#,70,80,81,82..(DM1,DM2,DM3,DM4,SRF,T1,T2,T3,T4,TW1,TW2,TW4)..(CBU,IV3)198708-198808

sub63132-37010

main63132-95420iBU60,61,80,81..20T198708-198808

sub63132-37010

main63132-95420iBU60,61,80,81..20T198708-198808

sub63132-37010

main63132-95423iBU85,9#198708-198808

sub63132-37040

63111PANEL, ROOF

main63018-92601iBU70..HRF198708-198808

FRONT

main63019-92601iBU70..HRF198708-198808

REAR

main63100-92607iBU85..06S198708-198808

sub63100-37020

main63111-92608iBU62..IV4198708-198808

main63111-95409iBU6#,80,81,82..03S198708-198808

sub63111-37010

sub63141-37010

main63111-95410iBU62,64,82..03S198708-198808

sub63111-37020

sub63141-37010

main63111-95412iBU85,9#..03S198708-198808

main63111-95417iBU60,82..06S198708-198808

main63113-92602iBU70..HRF198708-198808

CENTER

main63113-92605iBU70..SRF198708-198808

CENTER

main63114-92602iBU70..HRF198708-198808

CENTER SIDE

main63115-92605iBU70..SRF198708-198808

REAR

main63115-92612iBU70..SRF198708-198808

FRONT

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-95403iBU85,9#..03S198708-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iBU62,64,82..03S198708-198808

64107AFRAME SUB-ASSY, BACK

main64107-92615iBU70..03S,06S198708-198808

sub64107-92617

sub90333-25001

main64107-92617iBU70..09S198708-198808

main64107-92621iBU62..IV4198708-198808

main64107-92622iBU85..06S198708-198808

sub64107-37180

sub90333-25001

main64107-95422iBU60,82..06S198708-198808

main64107-95425iBU6#,80,81,82..03S198708-198808

sub64107-37100

sub90333-25001

main64107-95433iBU85,9#..03S198708-198808

sub64107-37120

sub90333-25001

main64107-95434iBU85..DYN..T3..30T..DSL..IV3198708-198808

64111APANEL, BACK

main64100-95446iBU62,64,82..03S198708-198808

sub64100-37670

main64100-95448iBU6#,80,81,82..03S198708-198808

sub64100-37690

main64100-95449iBU62..T4;BU60..T2,T4;BU60..T3..ST;BU61,80,81,82..03S198708-198808

sub64100-37700

main64100-95450iBU60,82..06S198708-198808

sub64111-95412

sub63218-95402

sub64116-95A01

sub64117-95400

sub64119-95A01

main64100-95452iBU85,9#..03S198708-198808

sub64100-37880

main64100-95453iBU85,90,93,95..TR..03S198708-198808

sub64100-37890

main64100-95454iBU85,93,98..03S..DSL198708-198808

sub64100-3V010

main64101-92603iBU62..IV4198708-198808

sub64111-95412

sub63218-95402

sub63358-92602

sub64117-95400

sub64121-95A00

sub64145-95010

main64101-92604iBU85..06S198708-198808

sub64101-37010

64122ABAFFLE, DUST REAR BODY

main64122-95405iBU6#,80,81,82..T2,T3,T4198708-198808

main64122-95406iBU85,9#198708-198808

main64122-95407iBU60..T1198708-198808

main64122-95A06iBU60,62,82..06S198708-198808

main65455-93100iBU62..DM2..CBU198708-198808

64160SILENCER ASSY, BACK PANEL, UPPER

main64160-95401-03iBU62,64..TOY..TR..20T198708-198711

sub64270-95400

main64160-95401-06iBU64..DYN..T3198708-198711

sub64270-95400

main64160-95402-03iBU90,93,95..TOY198708-198711

RH,GRAY,GRAY,TRIM8#

sub64270-95401

main64160-95402-03iBU90,93,95..TOY198708-198711

sub64270-95401

main64160-95402-06iBU85..DYN..TD198708-198711

RH,BROWN,BROWN,TRIM4#

sub64270-95401

main64160-95402-06iBU85..DYN..TD198708-198711

sub64270-95401

main64160-95403-03iBU85..TOY..03S..DSL198708-198711

sub64270-95402

main64160-95403-06iBU85..DYN..TR..03S..DSL198708-198711

sub64270-95402

main64270-95400-03iBU62..TOY..(275,30T)198711-198808

main64270-95400-06iBU64..DYN..T3198711-198808

main64270-95401-03iBU85..TOY..03S..DSL198711-198808

main64270-95401-06iBU85..DYN..TR..03S..DSL198711-198808

main64270-95402-03iBU85..TOY..03S..DSL198711-198808

main64270-95402-06iBU85..DYN..TR..03S..DSL198711-198808

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-95400iBU85,9#..03S198708-198808

sub64025-37030

main64026-95400iBU85,9#..03S198708-198808

main64171-95410iBU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4198708-198808

64189CLAMP, BACK PANEL SILENCER

main64189-95400iBU6#,8#,9#..03S198708-198808

64190SILENCER ASSY, BACK PANEL

main64190-95400iBU6#,80,81,82..03S198708-198808

main64190-95402-06iBU62,64..DYN..TR..20T198708-198808

sub64190-95402

main64190-95402-13iBU62,64..TOY..TR..20T198708-198808

sub64190-95402

main64190-95405-03iBU85..TOY..03S..DSL198708-198808

main64190-95405-06iBU85..DYN..TD;BU90,93,95..DYN198708-198808

main64190-95405-06iBU85..DYN..TD;BU90,93,95..DYN198708-198808

main64190-95406iBU85,9#..03S198708-198808

64192ABOARD, BACK PANEL SILENCER, UPPER

main64192-95402-03iBU85..TOY..03S..DSL198708-198808

main64192-95402-06iBU85..DYN..TR..03S..DSL198708-198808

64270ECLIP

main90467-07054-13iBU62,64..TOY..TR..20T198708-198808

sub90467-07054

main90467-07054-16iBU62,64..DYN..TR..20T198708-198808

sub90467-07054

64811GLASS, BACK WINDOW

main64811-95409iBU6#,80,81,82..03S198708-198808

main64811-95410iBU85,93,98..03S;BU62,90,95..35T,IV4198708-198808

sub64811-37080

main64812-95402iBU85,90,93,95..TR..03S198708-198808

sub64811-37050

64813GLASS, BACK WINDOW CORNER, RH

main64814-95400iBU60,82,85..06S198708-198808

sub64814-37010

main64814-95400iBU60,82,85..06S198708-198808

sub64814-37010

64814GLASS, BACK WINDOW CORNER, LH

main64814-95400iBU60,82,85..06S198708-198808

sub64814-37010

main64814-95400iBU60,82,85..06S198708-198808

sub64814-37010

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95405iBU6#,80,81,82..03S198708-198808

sub64831-95406

main64831-95406iBU85,9#;BU60,62,82..06S198708-198808

sub64831-37050

64831AWEATHERSTRIP, BACK WINDOW GLASS, UPPER

main64831-95404iBU60,82,85..06S198708-198808

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iBU6#,80,81,82..03S198708-198808

sub64832-95013

main64832-95013iBU85,9#;BU60,62,82..06S198708-198808

sub64832-37040

64832AWEATHERSTRIP, BACK WINDOW VERTICAL

main64832-95400iBU60,82,85..06S198708-198808

sub64834-37010

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-95400iBU60,82,85..06S198708-198808

main64833-95400iBU60,82,85..06S198708-198808

main64833-95401iBU60,82,85..06S198708-198808

main64833-95401iBU60,82,85..06S198708-198808

64834CWEATHERSTRIP, BACK WINDOW GLASS, LOWER

main64834-95400iBU60,82,85..06S198708-198808

64837CWEATHERSTRIP, BACK WINDOW CORNER GLASS

main64837-95400iBU60,82,85..06S198708-198808

64839APACKING, BACK WINDOW

main64839-89101iBU60,82,85..06S198708-198808

64851STOP, BACK WINDOW SLIDE GLASS

main64851-95400iBU60,82,85..06S198708-198808

64882FRAME, BACK WINDOW VERTICAL

main64882-95400iBU60,82,85..06S198708-198808

64883FRAME, BACK WINDOW

main64881-95400iBU60,82,85..06S198708-198808

64883ACHANNEL, BACK WINDOW SLIDE

main64883-95400iBU60,82,85..06S198708-198808

69370ALOCK ASSY, BACK WINDOW

main69370-89101iBU60,82,85..06S198708-198808

69374CATCH, BACK WINDOW LOCK

main69374-89101iBU60,82,85..06S198708-198808

69375ARETAINER, BACK WINDOW LOCK

main69375-89102iBU85,90,93,95..TR..03S198708-198808

69376BPACKING, BACK WINDOW LOCK

main69376-89101iBU85,90,93,95..TR..03S198708-198808

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9015950206

main90159-50206

9033325001

main90333-25001

9046708033

main90467-08033

9324923008

main93249-23008

9352054010

main93520-54010

9354024012

main93540-24012

9356015010

main93560-15010

45 parts on this diagram · 4 diagrams in section
