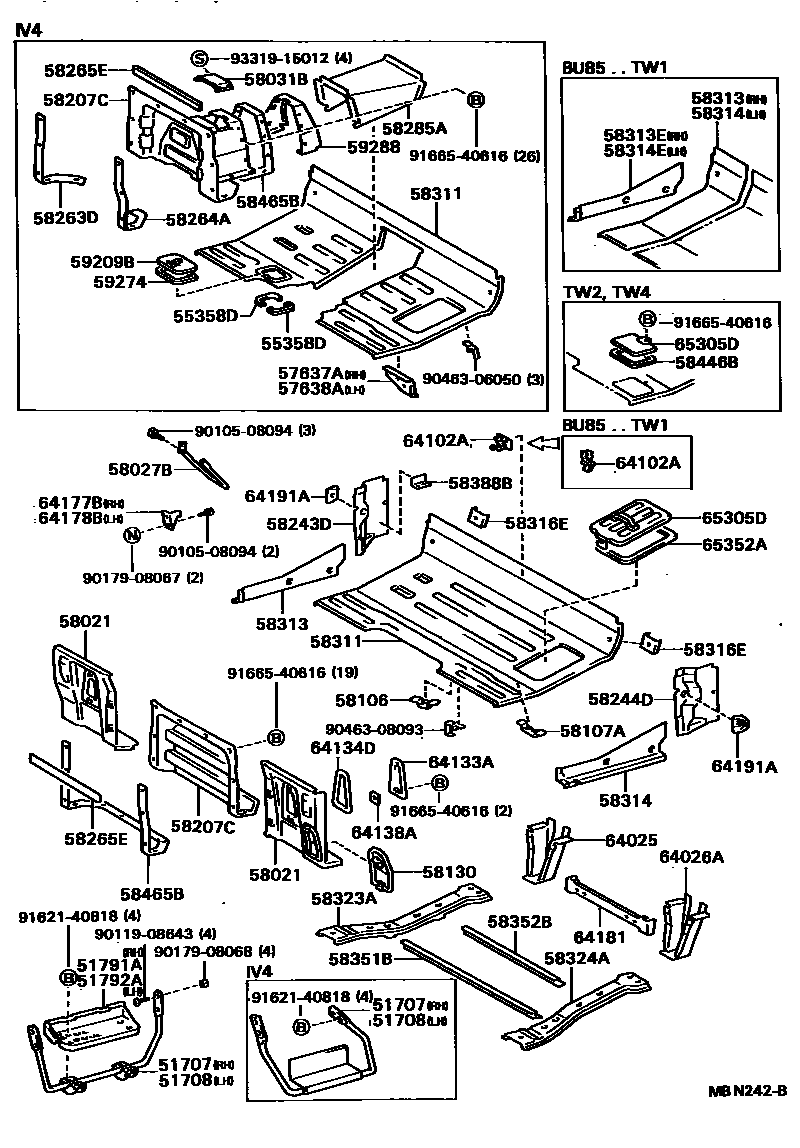

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51707STEP SUB-ASSY, RH

main51770-92601iBU62..IV4198708-198808

sub51770-92602

main58307-95403iBU60,82,85..06S198708-198808

51708STEP SUB-ASSY, LH

main51780-92602iBU62..IV4198708-198808

sub51780-92603

main58308-95400iBU60,82,85..06S198708-198808

51791APANEL, STEP, REAR RH

main51792-95400iBU60,82,85..06S198708-198808

51792APANEL, STEP, REAR LH

main51792-95400iBU60,82,85..06S198708-198808

55358DPROTECTOR, EDGE

main55358-92601iBU62..IV4198708-198808

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-92604iBU62..IV4198708-198808

57638AREINFORCEMENT, REAR FLOOR SIDE, LH

main57638-92604iBU62..IV4198708-198808

58021PANEL SUB-ASSY, HEADER

main58021-92608iBU85..06S198708-198808

main58022-92614iBU85..06S198708-198808

sub58022-92616

main58022-92616iBU85..06S198708-198808

sub58022-37060

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-92602iBU85..06S198708-198808

main58028-92602iBU85..06S198708-198808

58031BCOVER SUB-ASSY, REAR FLOOR SERVICE HOLE

main58031-92600iBU62..IV4198708-198808

58106BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2

main58106-95A00iBU60,82..06S198708-198808

58107ABRACKET SUB-ASSY, CLAMP SET, NO.1

main58107-95A00iBU60,82..06S198708-198808

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58130-92600iBU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-92601iBU62..IV4198708-198808

main58207-92605iBU60,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

sub58207-37020

main58207-92607iBU85..06S198708-198808

58243DPANEL, FLOOR SIDE, REAR RH

main58243-92603iBU70198708-198808

sub58243-37010

sub90950-01641

main58243-95415iBU60,62,82,85..06S198708-198808

58244DPANEL, FLOOR SIDE, REAR LH

main58244-92603iBU70198708-198808

sub58244-37010

sub90950-01641

main58244-95411iBU60,62,82,85..06S198708-198808

58263DPACKING, TRANSMISSION COVER

main58263-92601iBU62..IV4198708-198808

58264APACKING, TRANSMISSION COVER, B

main58264-92601iBU62..IV4198708-198808

58265EPACKING, TRANSMISSION COVER, C

main58265-95400iBU60,62,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

58285APANEL, POWER TAKE-OFF SHAFT COVER

main58285-92600iBU62..IV4198708-198808

sub58285-37010

58311PAN, REAR FLOOR

main58311-92642iBU62..IV4198708-198808

main58311-92644iBU85..06S198708-198808

main58311-92647iBU85..06S198708-198808

58313PANEL, REAR FLOOR SIDE, RH

main58313-92607iBU85..06S198708-198808

main58313-95402iBU60,62,82..06S198708-198808

58313EEXTENSION, REAR FLOOR SIDE PANEL, RH

main58313-95402iBU85..06S198708-198808

58314PANEL, REAR FLOOR SIDE, LH

main58314-92609iBU85..06S198708-198808

main58314-95403iBU60,62,82..06S198708-198808

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58314-95403iBU85..06S198708-198808

58316ERETAINER, REAR SEAT SET

main58316-95402iBU60,82,85..06S198708-198808

58323ABRACE, CENTER TO REAR MOUNTING, RH

main58323-92602iBU85..06S198708-198808

58324ABRACE, CENTER TO REAR MOUNTING, LH

main58324-92602iBU85..06S198708-198808

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-92600iBU85..06S198708-198808

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58352-92601iBU85..06S198708-198808

58388BBRACKET, PLATE REAR FLOOR

main58388-92601iBU62..IV4198708-198808

58446BPACKING, BATTERY SERVICE HOLE, NO.2

main58446-95402iBU60..WT..175198708-198808

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-92600iBU62..IV4198708-198808

main58465-92601iBU60,70,82..HRF,SRF,TW1,TW2,TW4198708-198808

main58465-92603iBU85..06S198708-198808

59209BLID, SUB-ASSY, POWER TAKE-OFF OIL LEVEL GAGE

main59209-92601iBU62..IV4198708-198808

59274PACKING, POWER TAKE-OFF OIL LEVEL GAGE LID

main59274-92600iBU62..IV4198708-198808

59288BACE, TRANSMISSION COVER, REAR

main59288-92600iBU62..IV4198708-198808

64025BRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-92602iBU85..06S198708-198808

main64025-95401iBU60,62,82..06S198708-198808

64026ABRACKET SUB-ASSY, REAR MOUNTING, LH

main64025-95401iBU60,62,82..06S198708-198808

main64026-92601iBU85..06S198708-198808

64102ABRACKET SUB-ASSY, JACK HANDLE SUPPORT

main64102-92601iBU85..06S198708-198808

main64102-95403iBU60,82..06S198708-198808

64133ACOVER, HEADER PANEL

main64133-95400iBU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4198708-198808

64134DPACKING, HEADER PANEL COVER

main64134-95400iBU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4198708-198808

64138ASEAL, HEADER PANEL COVER

main64138-95400iBU62,85..06S198708-198808

64177BSTOPPER, REAR MOUNTING BRACKET, RH

main64177-92600iBU85..06S198708-198808

64178BSTOPPER, REAR MOUNTING BRACKET, LH

main64178-92600iBU85..06S198708-198808

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main64084-92603iBU62..IV4198708-198808

main64084-92604iBU85..06S198708-198808

main64181-95401iBU60,82..06S198708-198808

64191ABRACKET, REAR SEAT BELT ANCHORAGE, RH

main64191-95405iBU60,62,82,85..06S198708-198808

65305DCOVER SUB-ASSY, BATTERY HOLE

main65305-95A03iBU60..WT..175198708-198808

395 X 235

main65306-92605iBU70198708-198808

main65350-95405iBU60..WT..175198708-198808

176 X 142

65352APACKING, BATTERY HOLE COVER, NO.2

main65352-92607iBU70198708-198808

sub65352-37010

main65352-95A02iBU60,62,82,85..06S198708-198808

9010508094

main90105-08094

9011908643

main90119-08643

9017908067

main90179-08067

9017908068

main90179-08068

9046306050

main90463-06050

9046308093

main90463-08093

9162140818

main91621-40818

9166540616

main91665-40616

9331915012

main93319-15012

57 parts on this diagram · 2 diagrams in section
