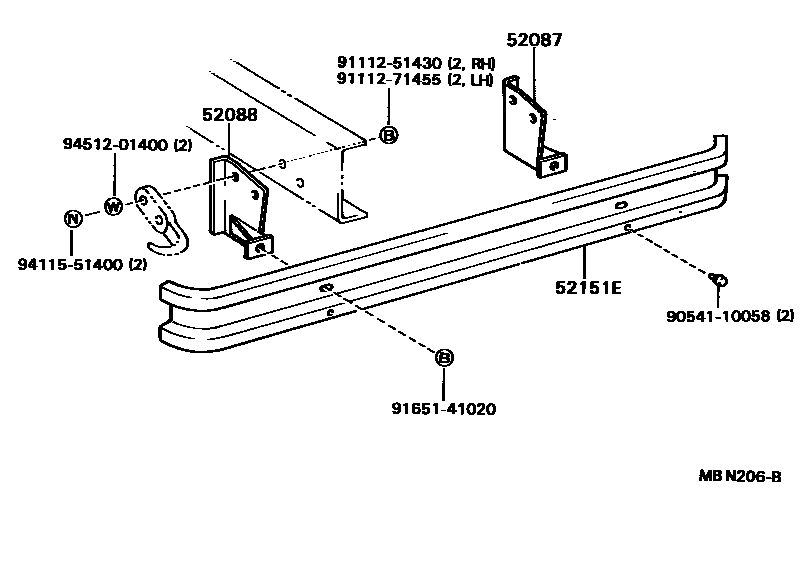

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52087-92800iBU62..275,30T198708-198808

main52087-92804iBU81,82..T2198708-198808

main52087-92805iBU85..V;BU85,90,93,95..T3,TW1198708-198808

main52087-92806iBU85..T2,T4;BU80,81,82,90..T4198708-198808

sub52087-37080

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52088-92800iBU62..275,30T198708-198808

main52088-92804iBU81,82..T2198708-198808

main52088-92805iBU85..V;BU85,90,93,95..T3,TW1198708-198808

main52088-92806iBU85..T2,T4;BU80,81,82,90..T4198708-198808

sub52088-37080

52151EBAR, REAR BUMPER

main52105-92700iBU60,61,62..T3..ST..CBU198708-198808

main52151-92801iBU85..IV3;BU62..275,30T;BU80,81,82..T2,T4;BU85..(T3,TW1)..CBU198708-198808

main52151-92802iBU93,95;BU90..IV3;BU90..T3..CBU198708-198808

main52151-92805iBU85..(T2,T4)..CBU198708-198808

main52151-92806iBU90..T4..CBU198708-198808

main52151-95401iBU60..(T1,TW1)..CBU198708-198808

9054110058

main90541-10058

9111251430

main91112-51430

9111271455

main91112-71455

9165141020

main91651-41020

9411551400

main94115-51400

9451201400

main94512-01400

9 parts on this diagram · 3 diagrams in section
