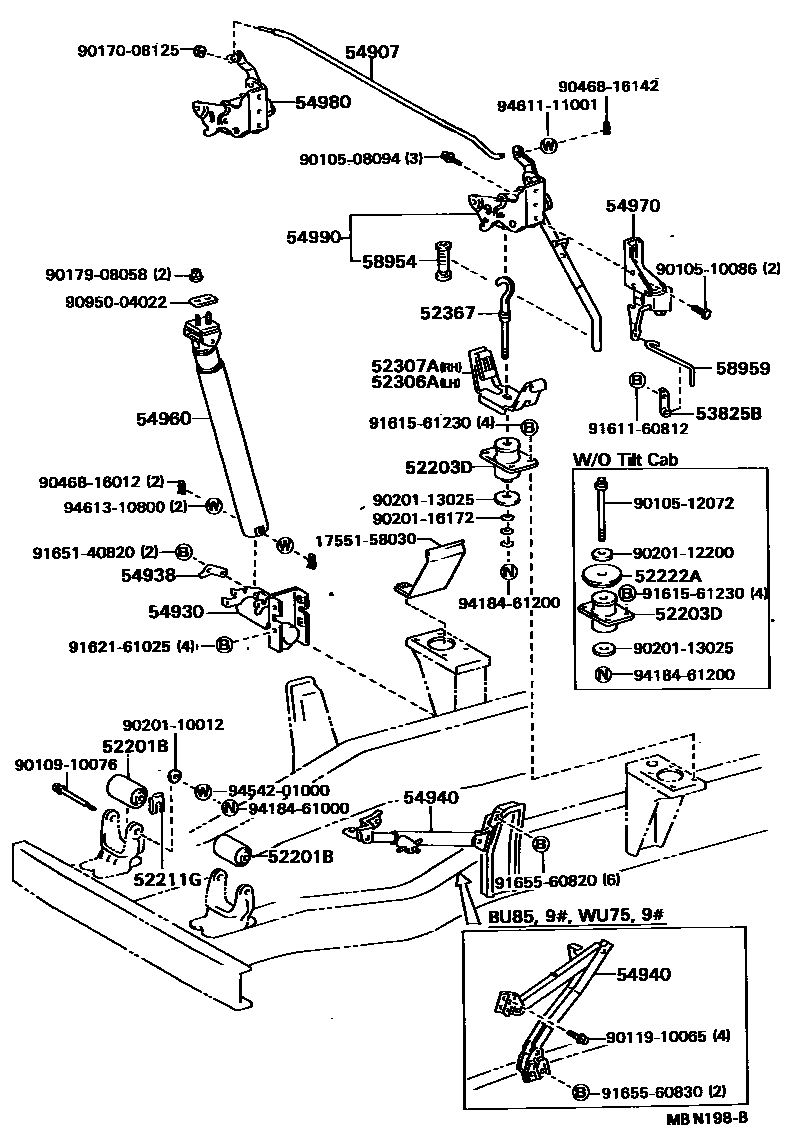

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-36040×2iBU6#,70,80,81,82198708-198808

main52201-36050×2iBU85,9#198708-198808

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-35050×2iBU82..06S..IV3198708-198808

main52203-36040×2iBU60,62,82,85..06S198708-198808

main52203-36050×2iBU85,90,95..TD198708-198808

NO. 1

main52203-36060×4iBU70198708-198808

52211GSPACER, CAB FRONT MOUNTING

main52211-36020iBU6#,70,8#,9#198708-198808

52222ASPACER, CAB REAR MOUNTING, UPPER

main52222-36030×2iBU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4198708-198808

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-36020iBU6#,8#,9#..03S198708-198808

sub52306-36021

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-36020iBU6#,8#,9#..03S198708-198808

sub52307-36021

52367HOOK, CAB REAR MOUNTING

main52367-36030×2iBU6#,8#,9#..03S198708-198808

53825BBRACKET, REAR LOCK HANDLE ROD

main53825-95401iBU85,9#..03S198708-198808

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-95400iBU6#,80,81,82..03S198708-198808

main54907-95401iBU85,9#..03S198708-198808

54930BRACKET ASSY, TILT CAB COIL SPRING, LOWER

main54930-95400iBU85,9#..03S198708-198808

main54930-95401iBU6#,80,81,82..03S198708-198808

54938PLATE, TILT CAB COIL SPRING SUPPORT

main54938-95400×2iBU6#,8#,9#..03S198708-198808

54940STAY ASSY, TILT CAB

main54940-95400iBU6#,81,82..DM1,DM2,DM4,T1,T2,T3198708-198808

main54940-95401iBU60,61,62,80,81,82..DM3,T4198708-198808

main54940-95402iBU85,9#..03S198708-198808

54960SPRING ASSY, TILT CAB COIL

main54960-95400iBU6#,80,81,82..03S198708-198808

main54960-95402iBU98198802-198808

main54960-95403iBU85,9#..03S198708-198808

54970LATCH ASSY, TILT CAB STOPPER

main54970-95400iBU6#,80,81,82..03S198708-198808

main54970-95401iBU85,9#..03S198708-198808

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-95401iBU6#,8#,9#..03S198708-198808

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-95403iBU6#,80,81,82..03S198708-198808

main54990-95404iBU85,9#..03S198708-198808

sub54990-37010

58954COVER, REAR LOCK HANDLE GRIP

main58954-95400iBU6#,8#,9#..03S198708-198808

58959ROD, REAR LOCK, HANDLE LATCH

main58959-95402iBU85,9#..03S198708-198808

1755158030INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-58030

9010508094

main90105-08094

9010510086

main90105-10086

9010512072

main90105-12072

9010910076

main90109-10076

9011910065

main90119-10065

9017008125

main90170-08125

9017908058

main90179-08058

9020110012

main90201-10012

9020112200

main90201-12200

9020113025

main90201-13025

9020116172

main90201-16172

9046816012

main90468-16012

9046816142

main90468-16142

9095004022

main90950-04022

9161160812

main91611-60812

9161561230

main91615-61230

9162161025

main91621-61025

9165140820

main91651-40820

9165560820

main91655-60820

9165560830

main91655-60830

9418461000

main94184-61000

9418461200

main94184-61200

9454201000

main94542-01000

9461111001

main94611-11001

9461310800

main94613-10800

44 parts on this diagram · 2 diagrams in section
