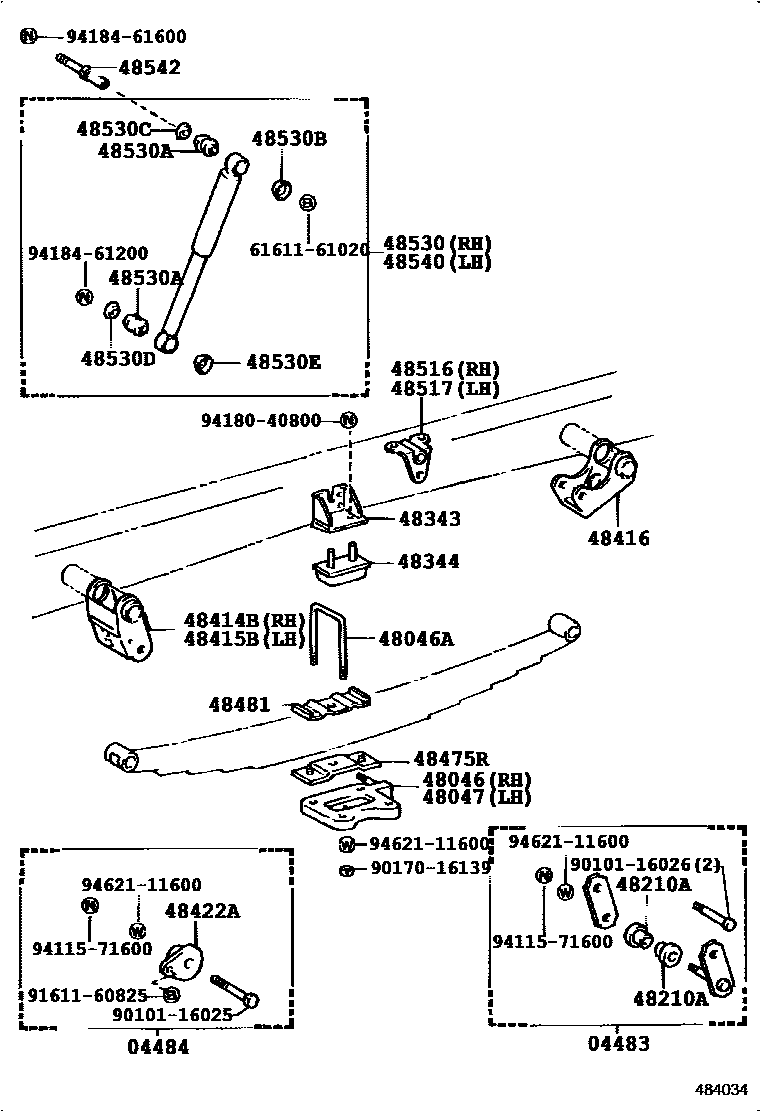

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

04483SHACKLE KIT, REAR SPRING

main04483-36060×2iBU70198708-198808

main04483-36070×2iBU62..IV4198708-198808

04484PIN KIT, REAR SPRING

main04484-36030×6iBU90,95198708-198808

main04484-36040×2iBU70198708-198808

main04484-36050×2iBU62..IV4198708-198808

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main42152-36030iBU90,95198708-198808

main48046-36090iBU60,61,62,70..ST198708-198808

main48046-36120iBU64..T3198708-198808

sub48046-36121

main48046-36160iBU60,61,62..DM2,T2,TW2198708-198808

main48046-36170iBU60,62..(DM3,T3)..WT..20T198708-198808

main48046-36180iBU60,61,62..T4,TW4198708-198808

main48046-36190iBU64..DMP198708-198808

main48473-36100iBU85..V;BU62..IV4;BU8#,93..20T..DSL198708-198808

main48473-36110iBU85..20T..TD;BU62,82,85,93..275,30T198708-198808

main48473-36130iBU98198708-198808

48046ABOLT, U(FOR REAR SPRING)

main90117-16008×4iBU60,62..(DM3,T3)..WT..20T198708-198808

main90117-16014×4iBU60,61,62..DM2,T2,T4,TW2,TW4198708-198808

main90117-16018×6iBU82,85,93..275,30T198708-198808

main90117-16022×2iBU64..DMP198708-198808

main90117-16023×2iBU98198708-198808

main90117-16025×2iBU82,85,93..275,30T198708-198808

main90117-16031×4iBU70198708-198808

main90117-16103×4iBU64..DMP198708-198808

main90117-16115×2iBU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T198708-198808

main90117-16122×4iBU60,61,62..ST198708-198808

main90117-16142×4iBU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T198708-198808

main90117-16144×6iBU98198708-198808

main90117-16184×4iBU64..T3198708-198808

main90117-18002×4iBU90,95198708-198808

main90117-18005×4iBU95..IV3198708-198808

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main42152-36030iBU90,95198708-198808

main48046-36090iBU60,61,62,70..ST198708-198808

main48047-36120iBU64..T3198708-198808

sub48047-36121

main48047-36160iBU60,61,62..DM2,T2,TW2198708-198808

main48047-36170iBU60,62..(DM3,T3)..WT..20T198708-198808

main48047-36180iBU60,61,62..T4,TW4198708-198808

main48047-36190iBU64..DMP198708-198808

main48473-36100iBU85..V;BU62..IV4;BU8#,93..20T..DSL198708-198808

main48473-36110iBU85..20T..TD;BU62,82,85,93..275,30T198708-198808

main48473-36130iBU98198708-198808

48210SPRING ASSY, REAR RH

main48210-36690iBU85,93..T3..30T198708-198808

main48210-36800iBU62..30T198708-198808

main48210-36810iBU62..275198708-198808

main48210-36830iBU81,82..T2198708-198808

main48210-36840iBU82..(T3,TW1)..20T198708-198808

main48210-36861iBU82,85..275198708-198808

main48210-36870iBU62..IV4;BU80,81,82..T4198708-198808

main48210-3B060iBU82,85,93..T3..30T198708-198808

main48210-3B100iBU98198708-198808

main48210-3B160iBU85..T4198708-198808

main48210-3B170iBU90..T4198708-198808

main48210-3B180iBU60..T1,TW1198708-198808

main48210-3B190iBU60,61,62..T3..ST198708-198808

main48210-3B200iBU70198708-198808

main48210-3B220iBU60,61,62..T2,TW2198708-198808

main48210-3B230iBU60,61,62..T4,TW4198708-198808

main48210-3B240iBU62..DM2198708-198808

main48210-3B250iBU60,62..(DM3,T3)..WT..20T198708-198808

main48210-3B260iBU64..T3198708-198808

main48210-3B270iBU64..DMP198708-198808

main48210-3B300iBU90,95..T3198708-198808

main48210-3B310iBU95..IV3198708-198808

main48210-3B330iBU62..30T198801-198803

main48210-3B340iBU85..T2198708-198808

main48210-3B350iBU85..V;BU85,93..(T3,TW1)..20T198708-198808

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23002×4iBU62..20T;BU60,61,64,70198708-198808

48343BRACKET, REAR AXLE CUSHION

main48308-36040×2iBU60,61,62..DM2,T2,TW2198708-198808

main48343-36040×2iBU60,61,62,70..ST198708-198808

main48343-36050×2iBU64..T3198708-198808

main48343-36060×2iBU64..DMP198708-198808

48344STOPPER, BUMPER, REAR

main48344-36040×2iBU98198708-198808

main48344-36090×2iBU81,82..T2198708-198808

main48344-36140×2iBU60,70..HRF,SRF,T1,TW1198708-198808

main48344-36150×2iBU60,61,62..T3..ST198708-198808

main48344-36180×2iBU62..275,30T,IV4198708-198808

main48344-36190×2iBU82,90,95..T3,TW1198708-198808

main48344-36200×2iBU85,93..30T;BU80,81,82..T4198708-198808

main48344-36210×2iBU60,61,62..T4,TW4198708-198808

main48344-36220×2iBU85..V;BU90..T4;BU85,93..(T3,TW1)..(20T,275)198708-198808

main48344-36230×2iBU60,62..(DM3,T3)..WT..20T198708-198808

main48344-36250×2iBU85..T2198708-198808

main48344-36270×2iBU64198708-198808

main48344-36280×2iBU62..30T198801-198803

48414BBRACKET, SPRING, NO.3 RH

main48414-36150iBU90,95198708-198808

main48414-36210iBU8#,93,98;BU62..275,30T,IV4198708-198808

main48414-36230iBU60,61,62,70..ST198708-198808

main48414-36240iBU60,61,62..T2,TW2198805-198808

main48414-36250iBU60,61,62..T4,TW4198708-198808

main48414-36260iBU60,62..(DM3,T3)..WT..20T198708-198808

main48414-36270iBU64198708-198808

48415BBRACKET, SPRING, NO.3 LH

main48414-36150iBU90,95198708-198808

main48414-36210iBU8#,93,98;BU62..275,30T,IV4198708-198808

main48414-36240iBU60,61,62..T2,TW2198805-198808

main48414-36250iBU60,61,62..T4,TW4198708-198808

main48414-36260iBU60,62..(DM3,T3)..WT..20T198708-198808

main48414-36270iBU64198708-198808

main48415-36070iBU60,61,62,70..ST198708-198808

48416BRACKET, SPRING, NO.4

main48416-36160×2iBU90,95198708-198808

main48416-36190×2iBU8#,93,98;BU62..275,30T,IV4198708-198808

main48416-36230iBU60,61,62..T2,TW2198805-198808

main48416-36240iBU60,61,62..T4,TW4198708-198808

main48416-36250iBU60,62..(DM3,T3)..WT..20T198708-198808

main48416-36260iBU64198708-198808

main48416-36270×2iBU60,61,62,70..ST198708-198808

main48417-36110iBU60,61,62..DM2,T2,TW2198708-198805

main48417-36120iBU60,61,62..T4,TW4198708-198808

main48417-36130iBU60,62..(DM3,T3)..WT..20T198708-198808

main48417-36140iBU64198708-198808

48422ASUPPORT, REAR SPRING PIN

main48422-36030×2iBU8#,93,98;BU62..275,30T,IV4198708-198808

sub48422-37010

main48422-36090×2iBU62..20T;BU60,61,64,70198708-198808

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iBU85..T2;BU62..IV4;BU80,81,82..(T3,T4,TW1)..20T198708-198808

main48475-36090iBU85..20T..TD198708-198808

48481SEAT, REAR SPRING, UPPER

main48481-36040×2iBU85..V;BU62..ST..IV3;BU60,61,70..ST;BU8#,93..20T..DSL;BU62..(T3,TW1)..(20T,IV4)..(CBU,IV4)198708-198808

main48481-36050×2iBU85..20T..TD;BU62,82,85,93,98..275,30T198708-198808

main48481-37011×2iBU90,95198708-198808

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36040iBU93;BU82,85..275,30T198708-198808

main48505-36050iBU85..V;BU82,85..20T;BU60,61,62,80,81,98..WT198708-198808

main48516-36050iBU60,61,62,70..ST198708-198808

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-36040iBU93;BU82,85..275,30T198708-198808

main48505-36050iBU85..V;BU82,85..20T;BU60,61,62,80,81,98..WT198708-198808

main48516-36050iBU60,61,62,70..ST198708-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29635iBU85,93198708-198808

sub48531-80021

main48531-39715iBU60,61,62,70..ST198708-198808

sub48531-39716

main48531-39725iBU62..275,30T,IV4;BU64,80,81,82,90,95,98..TR198708-198808

sub48531-39726

main48531-39745iBU64..DMP198708-198808

sub48531-39746

main48531-39755iBU60,61,62..WT..(175,20T)198708-198808

sub48531-39756

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16009×4iBU6#,70,8#,9#198708-198808

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003×2iBU60,61,62,80,81,82,90,95,98..WT198708-198808

main90948-03004×2iBU60,61,62,70..ST198708-198808

main90948-03007×2iBU64,85,93198708-198808

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iBU6#,8#,9#..WT198708-198808

main90948-03007×2iBU60,61,62,70..ST198708-198808

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003×2iBU62..20T;BU60,61,64,70,85,93..TR,V198708-198808

main90948-03007×2iBU82,90,95,98;BU62..275,30T,IV4;BU64,80,81..DM1,DM4,T2,T4198708-198808

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iBU6#,70,8#,9#198708-198808

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29635iBU85,93198708-198808

sub48531-80021

main48531-39715iBU60,61,62,70..ST198708-198808

sub48531-39716

main48531-39725iBU62..275,30T,IV4;BU64,80,81,82,90,95,98..TR198708-198808

sub48531-39726

main48531-39745iBU64..DMP198708-198808

sub48531-39746

main48531-39755iBU60,61,62..WT..(175,20T)198708-198808

sub48531-39756

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-36020×2iBU60,61,62,70..ST198708-198808

sub48542-37030

6161161020PANEL, QUARTER, RH

main61611-61020

9010116025

main90101-16025

9010116026

main90101-16026

9017016139

main90170-16139

9161160825

main91611-60825

9411571600

main94115-71600

9418040800

main94180-40800

9418461200

main94184-61200

9418461600

main94184-61600

9462111600

main94621-11600

35 parts on this diagram · 13 diagrams in section
