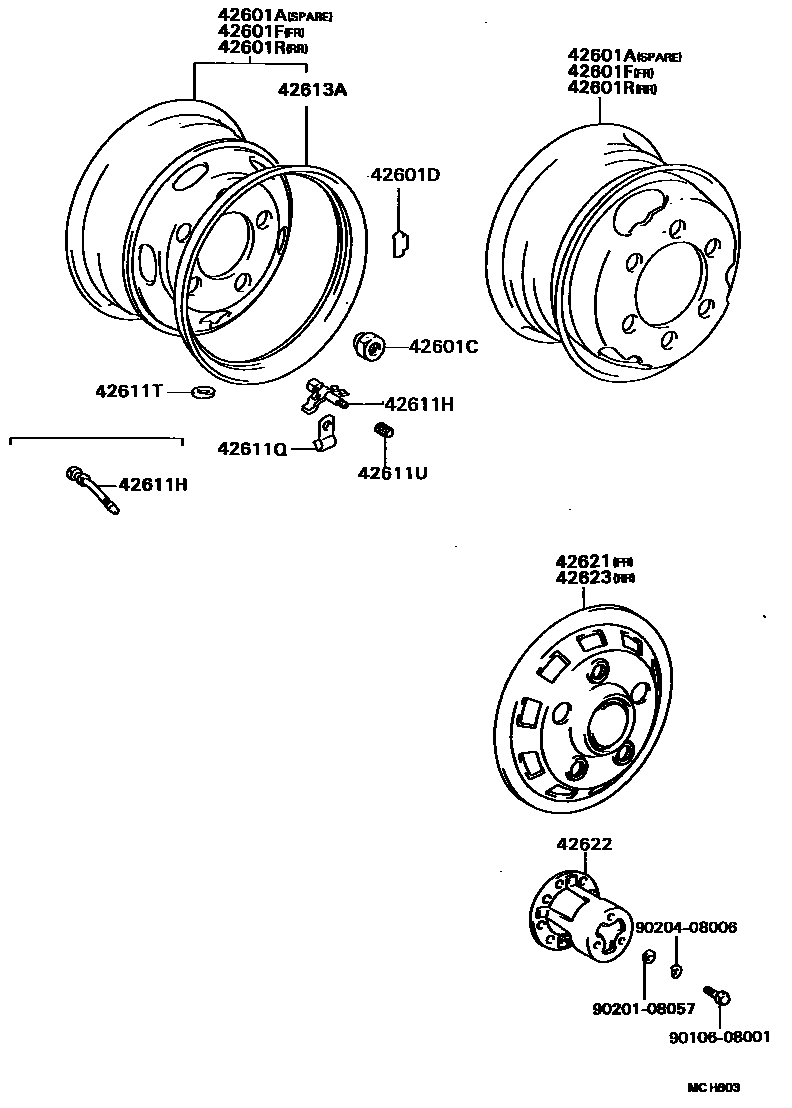

DISC WHEEL & WHEEL CAP

42601AWHEEL, DISC (FOR SPARE)

main42601-36360-03iBU60,61,62,81,82,85..DM2,T2,TW2198708-198808

sub42601-36360

main42601-36400-03iBU60,61,62,80,81,82..T4,TW4198708-198808

main42601-36450iBU85..T4198708-198808

main42601-36460iBU90..T4198708-198808

main42601-36480iBU60..DYN..T4..IV3198708-198808

main42601-36490iBU60..DYN..T2..IV3198708-198808

main42601-36500iBU60,81,82,85..DYN..T2..5F..IV3198708-198808

main42610-25020iBU61..T2,T3;BU62..4FC..ST..IV3;BU60,62..T3..5F..ST;BU62..DYN..4FC..ST..CBU;BU60,62,81,82,85..DM2,T1,T2,TW2198708-198808

main42610-36210iBU60..DYN..T2..IV3198708-198808

main42610-36230iBU62,93,98..30T;BU82,85..T3..(275,30T)198708-198808

main42610-36271iBU90,95..T3198708-198808

sub42610-36272

main42610-36280iBU60,81,82,85..DYN..T2..5F..IV3198708-198808

main42610-36290-03iBU60,70..HRF,SRF,TW1198708-198808

sub42610-36290

main42610-36290-03iBU60,70..HRF,SRF,TW1198708-198808

sub42610-36290

main42610-36300iBU60,70..HRF,SRF,TW1198708-198808

sub42610-36290

main42610-36310iBU62..4FC..ST..IV3;BU60,61,62..5F..ST..20T;BU62..DYN..4FC..ST..CBU198708-198808

sub42610-25020

main42610-36320iBU85..DYN..T3..30T..DSL..IV3198708-198808

main42610-36330iBU90,95..T3198708-198808

main42610-36410iBU85..V;BU82,85..(T3,TW1)..20T;BU60,62,64,93..(DM1,DM3,DM4,T3,TW1)..WT..(20T,275,IV4)198708-198808

42601CNUT, HUB (FOR AXLE)

main42633-55030iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

RR,RH

main42634-55030iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

RR,LH

main90942-01010iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

RR,RH

main90942-01011iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

RR,LH

main90942-01012iBU60,61,62,70..ST198708-198808

RR,RH

main90942-01012iBU60,61,62,70..ST198708-198808

FR,RH

main90942-01013iBU60,61,62,70..ST198708-198808

RR,LH

main90942-01013iBU60,61,62,70..ST198708-198808

FR,LH

main90942-01023iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

FR,RH

main90942-01024iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

FR,LH

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-03020iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-03022iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-03025iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-03027iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-03029iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-03031iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-03041iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-03045iBU64,70,85,9#;BU60,61,62,81,82..DM2,DM3,T1,T2,T3,TW1,TW2198708-198808

sub90942-03079

main90942-03047iBU64,70,85,9#;BU60,61,62,81,82..DM2,DM3,T1,T2,T3,TW1,TW2198708-198808

sub90942-03081

main90942-03049iBU64,70,85,9#;BU60,61,62,81,82..DM2,DM3,T1,T2,T3,TW1,TW2198708-198808

sub90942-03083

main90942-03050iBU64,70,85,9#;BU60,61,62,81,82..DM2,DM3,T1,T2,T3,TW1,TW2198708-198808

sub90942-03080

main90942-03051iBU64,70,85,9#;BU60,61,62,81,82..DM2,DM3,T1,T2,T3,TW1,TW2198708-198808

sub90942-03085

main90942-03052iBU64,70,85,9#;BU60,61,62,81,82..DM2,DM3,T1,T2,T3,TW1,TW2198708-198808

sub90942-03082

main90942-03053iBU64,70,85,9#;BU60,61,62,81,82..DM2,DM3,T1,T2,T3,TW1,TW2198708-198808

sub90942-03086

main90942-03064iBU64,70,85,9#;BU60,61,62,81,82..DM2,DM3,T1,T2,T3,TW1,TW2198708-198808

sub90942-03084

main90942-03173iBU90,95..T3198708-198808

main90942-03174iBU90,95..T3198708-198808

main90942-03175iBU90,95..T3198708-198808

main90942-03175iBU90,95..T3198708-198808

main90942-03175iBU90,95..T3198708-198808

main90942-03176iBU60,61,62..ST..20T..CBU198708-198808

main90942-03176iBU60,61,62..ST..20T..CBU198708-198808

main90942-03176iBU60,61,62..ST..20T..CBU198708-198808

main90942-03177iBU90,95..T3198708-198808

main90942-03178iBU90,95..T3198708-198808

main90942-03179iBU90,95..T3198708-198808

main90942-03180iBU90,95..T3198708-198808

main90942-03181iBU90,95..T3198708-198808

main90942-03182iBU90,95..T3198708-198808

main90942-03183iBU90,95..T3198708-198808

main90942-03184iBU90,95..T3198708-198808

main90942-03185iBU90,95..T3198708-198808

main90942-03186iBU90,95..T3198708-198808

42601FWHEEL, DISC (FOR FRONT)

main42601-36400-03iBU60,61,62,80,81,82..T4,TW4198708-198808

main42601-36450iBU85..T4198708-198808

main42601-36460iBU90..T4198708-198808

main42601-36480iBU60..DYN..T4..IV3198708-198808

main42610-25020iBU61..T2,T3;BU82,85..T2;BU60,62..T3..ST;BU60,62,70,81..(DM2,HRF,SRF,T1,T2,TW1,TW2)..(CBU,IV3)198708-198808

main42610-36210iBU60..DYN..T2..IV3198708-198808

main42610-36230iBU62,93,98..30T;BU82,85..T3..(275,30T)198708-198808

main42610-36271iBU90,95..T3198708-198808

sub42610-36272

main42610-36280iBU60,81,82,85..DYN..T2..5F..IV3198708-198808

main42610-36310iBU60,61,62,70..ST198708-198808

sub42610-25020

main42610-36320iBU85..DYN..T3..30T..DSL..IV3198708-198808

main42610-36330iBU90,95..T3198708-198808

main42610-36410iBU85..V;BU82,85..(T3,TW1)..20T;BU60,62,64,93..(DM1,DM3,DM4,T3,TW1)..WT..(20T,275,IV4)198708-198808

42601RWHEEL, DISC (FOR REAR)

main42601-36360-03iBU60,61,62,81,82,85..DM2,T2,TW2198708-198808

sub42601-36360

main42601-36400-03iBU60,61,62,80,81,82..T4,TW4198708-198808

main42601-36450iBU85..T4198708-198808

main42601-36460iBU90..T4198708-198808

main42601-36480iBU60..DYN..T4..IV3198708-198808

main42601-36490iBU60..DYN..T2..IV3198708-198808

main42601-36500iBU60,81,82,85..DYN..T2..5F..IV3198708-198808

main42610-36230iBU62,93,98..30T;BU82,85..T3..(275,30T)198708-198808

main42610-36271iBU90,95..T3198708-198808

sub42610-36272

main42610-36290-03iBU60,70..HRF,SRF,TW1198708-198808

sub42610-36290

main42610-36290-03iBU60,70..HRF,SRF,TW1198708-198808

sub42610-36290

main42610-36300iBU60,70..HRF,SRF,TW1198708-198808

sub42610-36290

main42610-36310iBU62..4FC..ST..IV3;BU60,61,62..5F..ST..20T;BU62..DYN..4FC..ST..CBU198708-198808

sub42610-25020

main42610-36320iBU85..DYN..T3..30T..DSL..IV3198708-198808

main42610-36330iBU90,95..T3198708-198808

main42610-36410iBU85..V;BU82,85..(T3,TW1)..20T;BU60,62,64,93..(DM1,DM3,DM4,T3,TW1)..WT..(20T,275,IV4)198708-198808

42611HEXTENSION, VALVE

main90942-05019iBU85,90..T4198708-198808

main90942-05020iBU60,61,62,80,81,82..T4,TW4198708-198808

main90942-05022iBU60,61,62,81,82,85..DM2,T2,TW2198708-198808

42611QCLIP (FOR TUBE)

main90468-10014iBU62..IV4198708-198808

42611TWASHER (FOR TUBE)

main90201-11009iBU62..IV4198708-198808

42611UCAP, TIRE VALVE

main90942-05013iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

42613ARING, DISC WHEEL SIDE

main42613-35010iBU60,61,62,70..ST198708-198808

TOPY,5.50FX15

main42613-35020iBU60,70..HRF,SRF,TW1198708-198808

TOPY,6.00GSX15

main42613-36060iBU60,61,62,70..ST198708-198808

CHUO,5.50FX15

sub42613-35010

main42613-36070iBU60,70..HRF,SRF,TW1198708-198808

CHUO,6.00GSX15

sub42613-35020

main42613-36070iBU60,70..HRF,SRF,TW1198708-198808

CHUO

sub42613-35020

main42613-36080iBU85..V;BU60,62,64,82,85,9#..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

main42613-36100iBU60..DYN..T2..IV3198708-198808

main42613-36110iBU60,81,82,85..DYN..T2..5F..IV3198708-198808

main42613-36120iBU85..DYN..T3..30T..DSL..IV3198708-198808

sub42613-37030

main42613-37020iBU90,95..T3198708-198808

42621CAP, WHEEL

main42621-36130iBU85..V;BU60,62,64,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198807

main42621-36131iBU85..V;BU60,62,64,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198808-198808

42622HOLDER, WHEEL CAP

main42622-36010iBU85..V;BU82,85..(T3,TW1)..20T;BU60,62,64,93..(DM1,DM3,DM4,T3,TW1)..WT..(20T,275,IV4)198708-198808

main42622-36020iBU62,93,98..30T;BU82,85..T3..(275,30T)198708-198808

42623CAP, WHEEL, REAR

main42623-36010iBU85..V;BU60,62,64,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198807

main42623-36011iBU85..V;BU60,62,64,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198808-198808

9010608001

main90106-08001

9020108057

main90201-08057

9020408006

main90204-08006

16 parts on this diagram · 1 diagram in section
