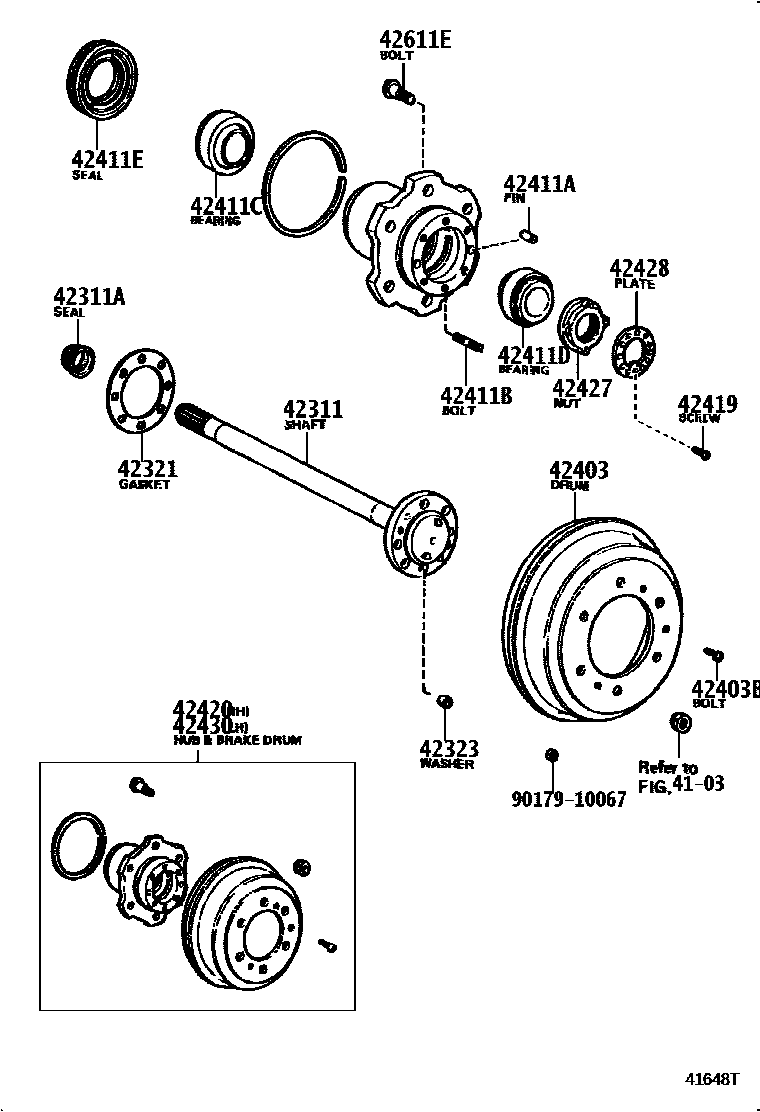

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

4103

42311SHAFT, REAR AXLE

main42311-36050×2iBU85..V;BU62..ST..IV3;BU60,61,70..ST;BU82,85,93..(T3,TW1)..20T..DSL;BU62..(T3,TW1)..(20T,IV4)..(CBU,IV4)198708-198805

main42311-36051×2iBU85..V;BU62..ST..IV3;BU60,61,70..ST;BU82,85,93..(T3,TW1)..20T..DSL;BU62..(T3,TW1)..(20T,IV4)..(CBU,IV4)198805-198808

main42311-36070×2iBU60,62,64..(DM3,T3)..WT..20T198708-198805

main42311-36071×2iBU60,62,64..(DM3,T3)..WT..20T198805-198808

main42311-36090×2iBU60,61,62..DM2,T2,TW2198708-198805

main42311-36091×2iBU60,61,62..DM2,T2,TW2198805-198808

main42311-36100×2iBU81,82,85..T2198708-198805

main42311-36101×2iBU81,82,85..T2198805-198808

main42311-36130×2iBU90,95198708-198805

main42311-36131×2iBU90,95198805-198808

main42311-36150×2iBU60,61,62..T4,TW4198708-198804

main42311-36151×2iBU60,61,62..T4,TW4198805-198808

main42311-36160×2iBU80,81,82..T4198708-198805

main42311-36161×2iBU80,81,82..T4198805-198808

main42311-36170×2iBU64..DMP198708-198805

main42311-36171×2iBU64..DMP198805-198808

main42311-36180×2iBU85..20T..TD;BU62,82,85,93,98..275,30T198708-198805

main42311-36181×2iBU85..20T..TD;BU62,82,85,93,98..275,30T198805-198808

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-38033×2iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90310-40001×2iBU64..DMP;BU85..20T..TD;BU62,82,85,93,98..275,30T198708-198808

main90310-41001×2iBU90,95198708-198808

42321GASKET, REAR AXLE SHAFT

main42321-36020×2iBU90,95198708-198808

main42321-36040×2iBU6#,70,8#,93,98198708-198808

sub42321-36050

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010×12iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main42323-36020×12iBU90,95198708-198808

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36090×2iBU60,61,62,81,82,85..DM2,T2,TW2198708-198808

main42431-36100×2iBU60,61,62,80,81,82..T4,TW4198708-198808

main42431-36110×2iBU90,95198708-198808

main42431-36120×2iBU85..V;BU85..T3,T4,TW1;BU60,62,64,82,93,98..(DM1,DM3,DM4,T3,TW1)..WT198708-198808

main43512-36020×2iBU60,61,62,70..ST198708-198808

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035×2iBU60,61,62,70..ST198708-198808

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-10055×2iBU6#,70,8#,93,98198708-198808

main90250-13066iBU90,95198708-198808

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-10191×8iBU64..DMP;BU85..20T..TD;BU62,82,85,93,98..275,30T198708-198808

main90116-12009iBU90,95198708-198808

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90368-57010iBU6#,70,8#,93,98198708-198808

main90368-66006iBU90,95198708-198808

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-52043×2iBU6#,70,8#,93,98198708-198808

main90368-57046×2iBU90,95198708-198808

42411ESEAL, OIL (FOR REAR AXLE HUB)

main90311-75003iBU6#,70,8#,93,98198708-198808

main90311-88102iBU90,95198708-198808

42419SCREW, REAR AXLE BEARING LOCK NUT

main93311-16012×4iBU6#,70,8#,93,98198708-198808

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-36050iBU60,61,62,70..ST198708-198808

main42420-36100iBU60,61,62,81,82,85..DM2,T2,TW2198708-198808

sub42420-29035

main42420-36110iBU60,61,62,80,81,82..T4,TW4198708-198808

main42420-36120iBU90,95198708-198808

main42420-36130iBU85..V;BU60,62,64,82,85,93..(DM3,T3,TW1)..WT..(20T,IV4)..DSL198708-198808

sub42420-37040

main42420-36150iBU64..DMP;BU85..20T..TD;BU62,82,85,93,98..275,30T198708-198808

sub42420-37050

42427NUT, REAR AXLE BEARING LOCK

main42427-36020×2iBU90,95198708-198808

main42427-36030×2iBU6#,70,8#,93,98198708-198808

42428PLATE, REAR AXLE LOCK NUT

main42428-36020×2iBU6#,70,8#,93,98198708-198808

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-36050iBU60,61,62,70..ST198708-198808

main42430-36100iBU60,61,62,81,82,85..DM2,T2,TW2198708-198808

sub42430-29035

main42430-36110iBU60,61,62,80,81,82..T4,TW4198708-198808

main42430-36120iBU90,95198708-198808

main42430-36130iBU85..V;BU60,62,64,82,85,93..(DM3,T3,TW1)..WT..(20T,IV4)..DSL198708-198808

sub42430-37040

main42430-36150iBU64..DMP;BU85..20T..TD;BU62,82,85,93,98..275,30T198708-198808

sub42430-37050

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02024iBU60,61,62,70..ST198708-198808

main90942-02025iBU60,61,62,70..ST198708-198808

main90942-02045iBU85..V;BU60,62,82..(DM3,T3,TW1)..WT;BU64,85,9#..DM1,DM4,T3,T4,TW1198708-198808

main90942-02046iBU85..V;BU60,62,82..(DM3,T3,TW1)..WT;BU64,85,9#..DM1,DM4,T3,T4,TW1198708-198808

main90942-02050iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

main90942-02051iBU60,61,62,8#..(DM2,T2,T4,TW2,TW4)..(175,20T)198708-198808

9017910067

main90179-10067

19 parts on this diagram · 4 diagrams in section
