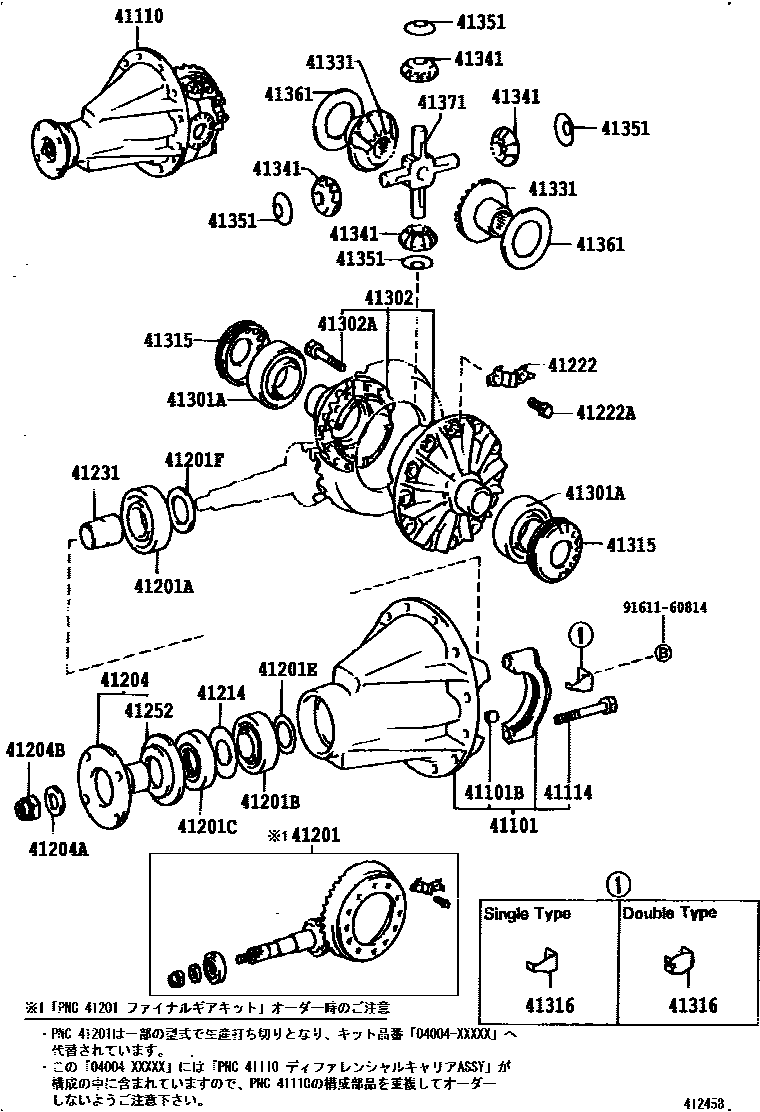

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-36030iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub41101-37010

main41101-36040iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)

main90253-21001iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90253-22002iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-36381iBU62,82..T2..5F198708-198808

sub41110-37080

main41110-36391iBU62,82..T4..5F;BU60,61,85..(T2,TW2)..5F198708-198808

sub41110-37090

main41110-36460iBU85..T2..5F;BU62..T3..4FC..WT198708-198808

sub41110-37110

main41110-36470iBU85..T4;BU85..20T..TD198708-198808

sub41110-36471

main41110-36480iBU85..30T..TD198708-198808

sub41110-36481

main41110-36490iBU64..DMP;BU85,93,98..T3..(275,30T)198708-198808

sub41110-37250

main41110-36500iBU90,95..T3198708-198808

sub41110-36501

main41110-36520iBU62..4FC..ST;BU60,85,93..(T3,TW1)..5F..WT..20T..DSL198708-198808

sub41110-37120

main41110-36530iBU85..V;BU62..DM3,TW1;BU62..T3..4FC..WT198708-198808

sub41110-37190

main41110-36540iBU85..T3..4FC198708-198808

sub41110-36541

main41110-36550iBU62..4FC..ST198708-198808

sub41110-37040

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-16009iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90105-16022iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29436iBU62,82..T2..5F198708-198808

sub41201-29437

main41201-39198iBU62..4FC..ST;BU60,85,93..(T3,TW1)..5F..WT..20T..DSL198708-198808

main41201-39306iBU62,82..T4..5F;BU60,61,85..(T2,TW2)..5F198708-198808

sub41201-39307

main41201-39376iBU85..T3..4FC198708-198808

sub41201-39377

sub41204-36090

main41201-39485iBU64..DMP;BU85,93,98..T3..(275,30T)198708-198808

sub41201-80154

main41201-39495iBU90,95..T3198708-198808

sub04004-16537

main41201-39515iBU85..30T..TD198708-198808

sub41201-80153

main41201-39525iBU80,81..T4;BU62..T4..4FC;BU85..T2..4FC;BU60,61,70..ST;BU62,82..(DM2,T3,TW1)..5F..WT..20T198709-198808

sub41201-39526

sub41204-36090

main41201-39615iBU60,62..T3..5F..WT..20T..IV3;BU85,93..(T3,TW1)..5F..20T..DSL198708-198808

sub41201-80640

main41201-39645iBU85..T4;BU85..20T..TD198708-198808

sub41201-80152

main41201-39785iBU85..T3..4FC198708-198808

sub41201-39786

sub41204-36090

main41201-39825iBU62..4FC..ST198708-198808

sub41201-39826

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40001iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90366-40100

main90366-49001iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35023iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90366-45001iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-48135iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90311-48019

main90311-58002iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35020iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35021iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35022iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35023iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35024iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35025iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35026iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35027iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35028iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35029iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35030iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35031iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35032iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35033iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35034iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35035iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35036iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35037iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35038iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35039iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-35040iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90564-45020iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45021iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45022iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45023iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45024iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45025iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45026iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45027iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45028iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45029iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45030iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45031iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45032iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45033iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45034iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45035iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45036iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45037iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45038iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45039iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45046iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45047iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45048iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45049iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90564-45050iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-40551iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40004

main90201-40552iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40007

main90201-40553iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40009

main90201-40554iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40011

main90201-40555iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40013

main90201-40556iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40015

main90201-40557iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40017

main90201-40558iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40019

main90201-40559iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40021

main90201-40560iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40023

main90201-40561iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub90564-40025

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-36050iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main41204-36060iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

sub41204-37020

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90179-24001iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-36020iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main41214-36030iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub41214-37010

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main41222-36030iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-14315iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main90101-16015iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main41231-36050iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-36010iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub41252-37020

main41252-36020iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

sub41252-37030

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-60001iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90368-52043iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main41301-36040iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-12047iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main90105-12087iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main41315-36020iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

SINGLE

main41316-36020iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

SINGLE

main41317-36011iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

DOUBLE

main41317-36020iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

DOUBLE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main41331-36031iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41341PINION, REAR DIFFERENTIAL

main41341-36011iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main41341-55012iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub41341-55013

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main41351-36010iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-36010iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main41361-36020iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main41361-36030iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main41361-36040iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

main41361-60010iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub41361-60011

main41361-60020iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub41361-60021

main41361-60030iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub41361-60031

main41361-60040iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

sub41361-60041

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBU85..V;BU60,61,64,70,80,81..TR,V;BU62,82,85,93..(20T,IV4)..DSL198708-198808

main41371-36020iBU64..DMP;BU85..20T..TD;BU62,82,85,9#..275,30T,35T198708-198808

9161160814

main91611-60814

29 parts on this diagram · 3 diagrams in section
