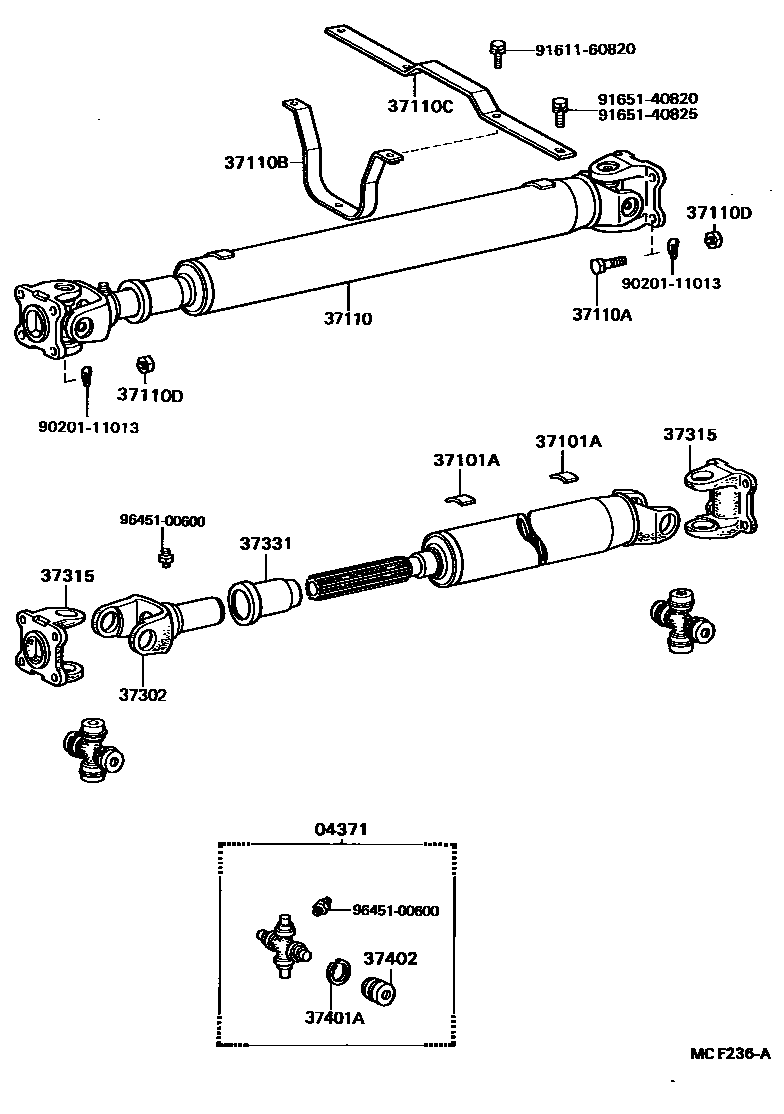

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-36030×2iBU6#,70198708-198808

sub04371-60210

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBU6#,70,8#,9#198708-198808

main90937-01147iBU6#,70,8#,9#198708-198808

main90937-01148iBU6#,70,8#,9#198708-198808

main90937-01149iBU6#,70,8#,9#198708-198808

main90937-01150iBU6#,70,8#,9#198708-198808

main90937-01151iBU6#,70,8#,9#198708-198808

main90937-01152iBU6#,70,8#,9#198708-198808

37110SHAFT ASSY, PROPELLER

main37110-36500iBU6#..5F..(CBU,IV3)198708-198808

main37110-36510iBU62..4FC198708-198808

main37110-36520iBU70198708-198808

main37110-36550iBU80,81,82198708-198808

main37110-36560iBU85..DSL198708-198808

main37110-36570iBU85..TD198708-198808

main37110-36590iBU90198708-198808

main37110-36600iBU98198708-198808

main37110-36610iBU93,95198708-198808

main37110-36620iBU62..IV4198708-198808

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11013×4iBU6#,70,8#,9#198708-198808

37110BGUARD, PROPELLER SHAFT

main51569-36060iBU85..T2;BU62..4FC;BU60,61,62,70..5F..ST198708-198808

main51569-36070iBU93;BU85,90,95..TD198708-198808

main51569-36080iBU98198708-198808

main51569-36090iBU64198708-198808

main51569-36100iBU85..V;BU85..(T3,T4,TW1)..DSL;BU60,61,62,80,81,82..5F..WT198708-198808

37110CBRACKET, PROPELLER SHAFT GUARD

main51568-36020iBU60,61,62,70,8#,90,93,95198708-198808

main51568-36050iBU98198708-198808

main51568-36070iBU64198708-198808

37110DNUT (FOR PROPELLER SHAFT)

main90179-11005×8iBU6#,70198708-198808

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36020iBU6#,70,8#,9#198708-198808

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36020×2iBU6#,70198708-198808

sub37315-60090

37331COVER, SLIDING SHAFT DUST

main37305-36020iBU6#,70,8#,9#198708-198808

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29024×8iBU6#,70198708-198808

main90520-29025×8iBU6#,70198708-198808

main90520-29026×8iBU6#,70198708-198808

main90520-29027×8iBU6#,70198708-198808

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36080×8iBU6#,70198708-198808

9020111013

main90201-11013

9161160820

main91611-60820

9165140820

main91651-40820

9165140825

main91651-40825

9645100600

main96451-00600

17 parts on this diagram · 2 diagrams in section
