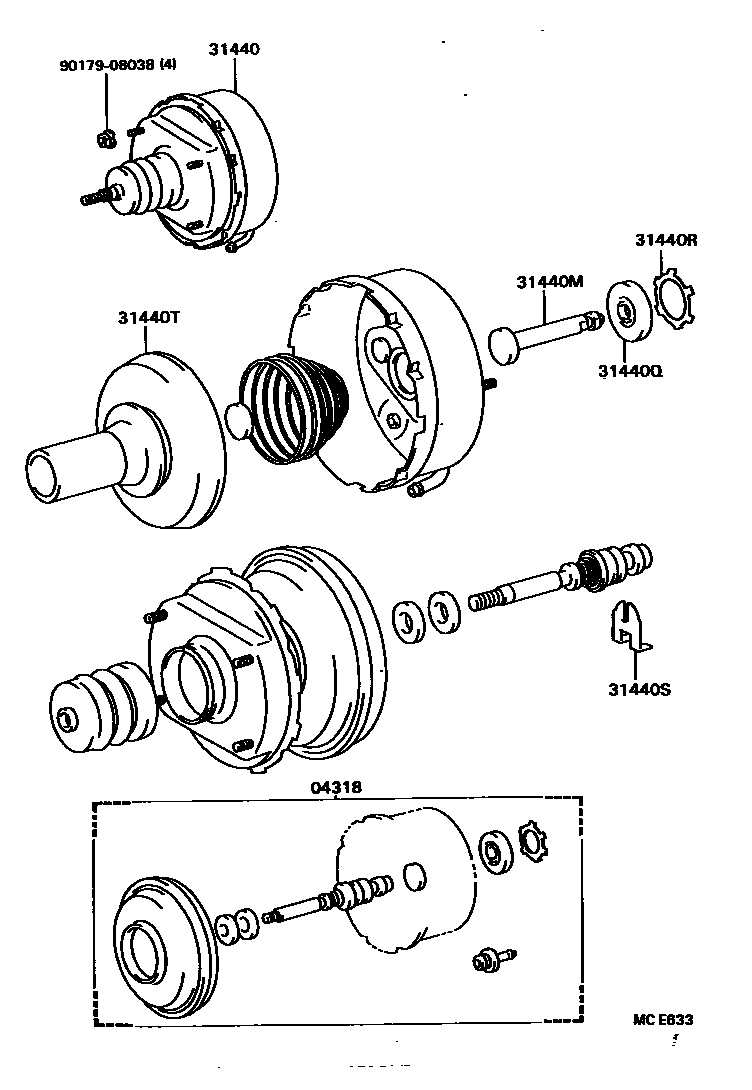

CLUTCH BOOSTER
04318BOOSTER KIT, CLUTCH
main04318-36010iBU62,64,82,85,9#..(DMP,TR)..5F198708-198808 31440BOOSTER ASSY, CLUTCH W/AIR CLEANER
main31440-36011iBU62,64,82,85,9#..(DMP,TR)..5F198708-198808 31440MROD SUB-ASSY, CLUTCH BOOSTER PISTON
main44606-12520iBU62,64,82,85,9#..(DMP,TR)..5F198708-198808 31440QGASKET, BRAKE BOOSTER BRACKET
main44621-28120iBU62,64,82,85,9#..(DMP,TR)..5F198708-198808 31440RRING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)
main44628-28120iBU62,64,82,85,9#..(DMP,TR)..5F198708-198808 31440SKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)
main44635-12480iBU62,64,82,85,9#..(DMP,TR)..5F198708-198808 31440TPISTON, BOOSTER(FOR CLUTCH BOOSTER)
main44642-87502iBU62,64,82,85,9#..(DMP,TR)..5F198708-198808 8 parts on this diagram · 2 diagrams in section
