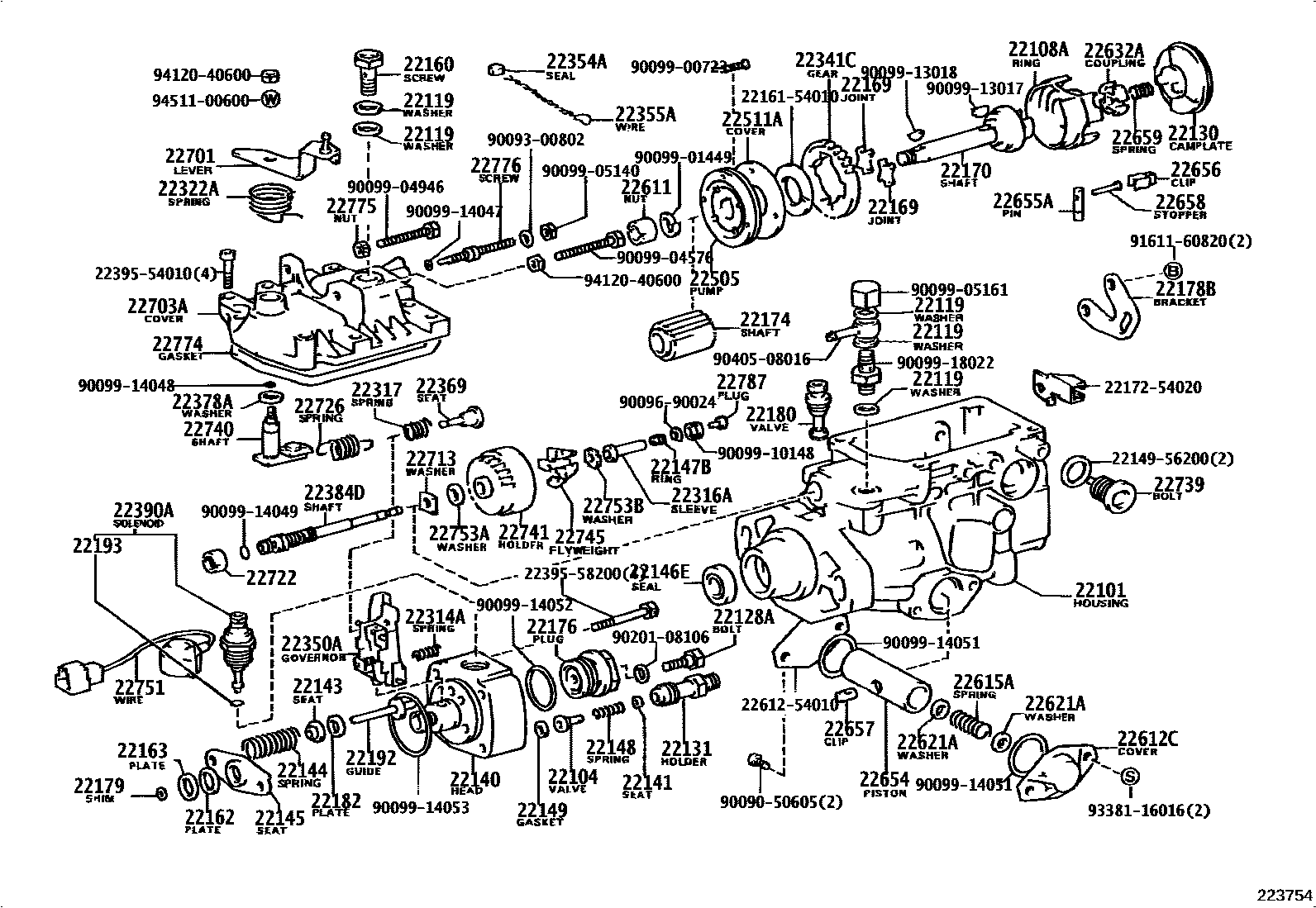

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
sub22101-54770
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146CAMSHAFT, INJECTION PUMP
22146ESEAL(FOR DRIVE SHAFT)
22147RING, CAMSHAFT ADJUST
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22174SHAFT, SPLINE
22176PLUG, DISTRIBUTIVE HEAD
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
22180VALVE SUB-ASSY, REGULATOR
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
22317SPRING, GOVERNOR DOMPER
22322ASPRING, RETURN
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22390ASOLENOID ASSY, FUEL CUT
sub22390-56290
22505PUMP SUB-ASSY, FUEL FEED
22511ACOVER, FEED PUMP
22611NUT, TIMER ROUND
22612CCOVER, TIMER
22615ASPRING, TIMER OUTER
22621AWASHER, TIMER ADJUSTING
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
sub22656-17840
22657CLIP, TIMER
22658STOPPER, TIMER
22659SPRING, COUPLING
22701LEVER SUB-ASSY, ADJUSTING
sub22701-58202
22703ACOVER SUB-ASSY, GOVERNOR
22713WASHER, GOVERNOR GEAR ADJUSTING
22722NUT, GOVERNOR SHAFT ROCK
22726SPRING, SPEED CONTROL
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
sub22753-54020
22774GASKET, GOVERNOR COVER
sub22774-54270
22775NUT, LOCK(FOR INJECTION PUMP)
22776SCREW, SMOKE SET ADJUSTING
22787PLUG, GOVERNOR SLEEVE
2214956200GASKET, DELIVERY VALVE
main22149-56200
2216154010PLATE, CAMSHAFT SHIM
main22161-54010
2217254020CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54020
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2261254010COVER, TIMER
main22612-54010
9009050605
main90090-50605
9009300802
main90093-00802
9009690024
main90096-90024
9009900723
main90099-00723
9009901449
main90099-01449
9009904576
main90099-04576
9009904946
main90099-04946
9009905140
main90099-05140
9009905161
main90099-05161
9009910148
main90099-10148
9009913017
main90099-13017
9009913018
main90099-13018
9009914047
main90099-14047
9009914048
main90099-14048
9009914049
main90099-14049
9009914051
main90099-14051
9009914052
main90099-14052
9009914053
main90099-14053
9009918022
main90099-18022
9020108106
main90201-08106
9040508016
main90405-08016
9161160820
main91611-60820
9338116016
main93381-16016
9412040600
main94120-40600
9451100600
main94511-00600
103 parts on this diagram · 2 diagrams in section
