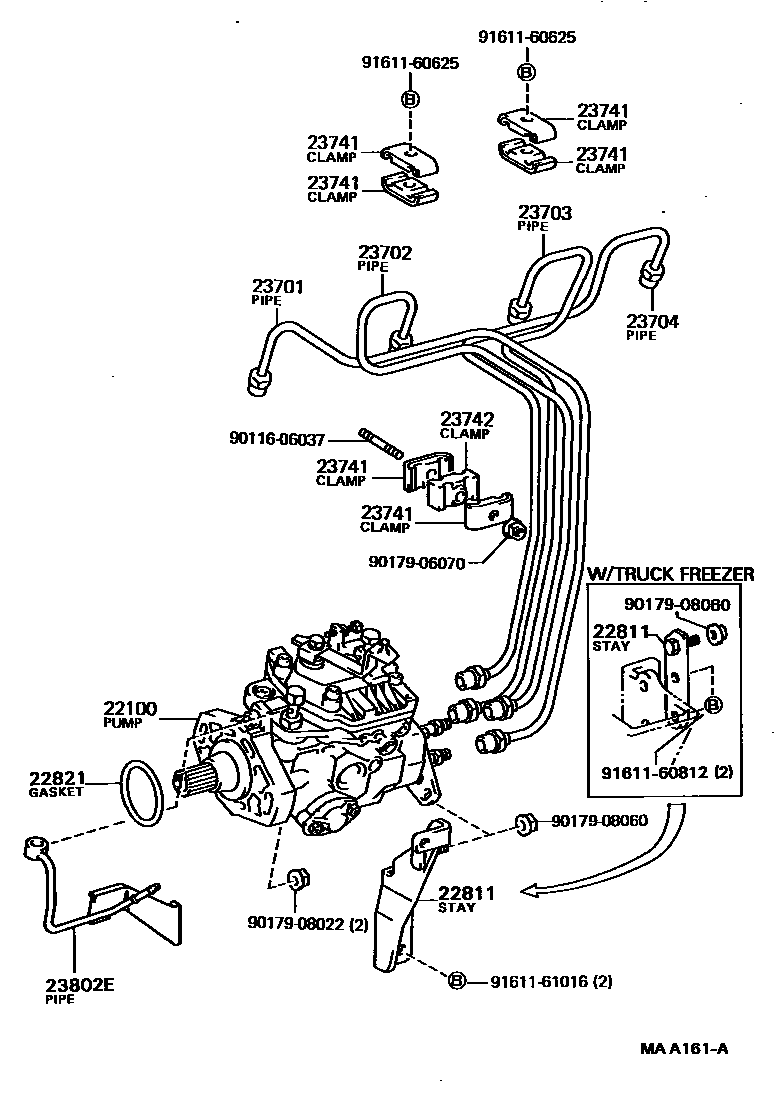

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1(8708- )13B#..BU85,9#..(T2

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56201iB..BU60,70,80198708-198808

main22100-56231i11B..BU61,81198708-198808

main22100-56280i11B..BU61,81198708-198808

main22100-58231i13B..BU85..5F;13B..BU62,64,82,93,98..5F..03S198708-198808

main22100-58272i13BT..BU85,90,95198708-198808

main22100-58321i13B..BU62..IV4198708-198808

main22100-58343i13B..BU62,85..4FC198708-198808

main22100-58420i13B..BU85..(T2,T3)..5F..(20T,30T)..IV3198708-198808

main22100-58420i13B..BU85..(T2,T3)..5F..(20T,30T)..IV3198708-198808

main22100-58430i13B..BU62..4FC;13B..BU85..T2..4FC198708-198808

main22100-58440i13B..BU62,64,82,85,93,98..5F..(CBU,IV3)198708-198808

main22100-58450i13B..BU62,64,82,85,93..(DMP,TR)..5F..03S198708-198808

22811STAY, INJECTION PUMP, NO.1

main22811-56020iB..BU60,70,80198708-198808

main22811-56040i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main22811-58020iB..BU60..(T2,T4)..IV3198708-198808

22821GASKET, INJECTION PUMP

main90301-49003iB..BU60,70,80198708-198808

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56050iB..BU60,70,80198708-198808

main23701-56060i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56050iB..BU60,70,80198708-198808

main23702-56060i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56050iB..BU60,70,80198708-198808

main23703-56060i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56050iB..BU60,70,80198708-198808

main23704-56060i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

23742CLAMP, INJECTION PIPE, NO.2

main23741-56020iB..BU60,70,80198708-198808

sub23741-56021

23802EPIPE SUB-ASSY, FUEL

main23801-56070iB..BU60,70,80198708-198808

9011606037

main90116-06037

9017906070

main90179-06070

9017908022

main90179-08022

9017908060

main90179-08060

9161160625

main91611-60625

9161160812

main91611-60812

9161161016

main91611-61016

17 parts on this diagram · 4 diagrams in section
