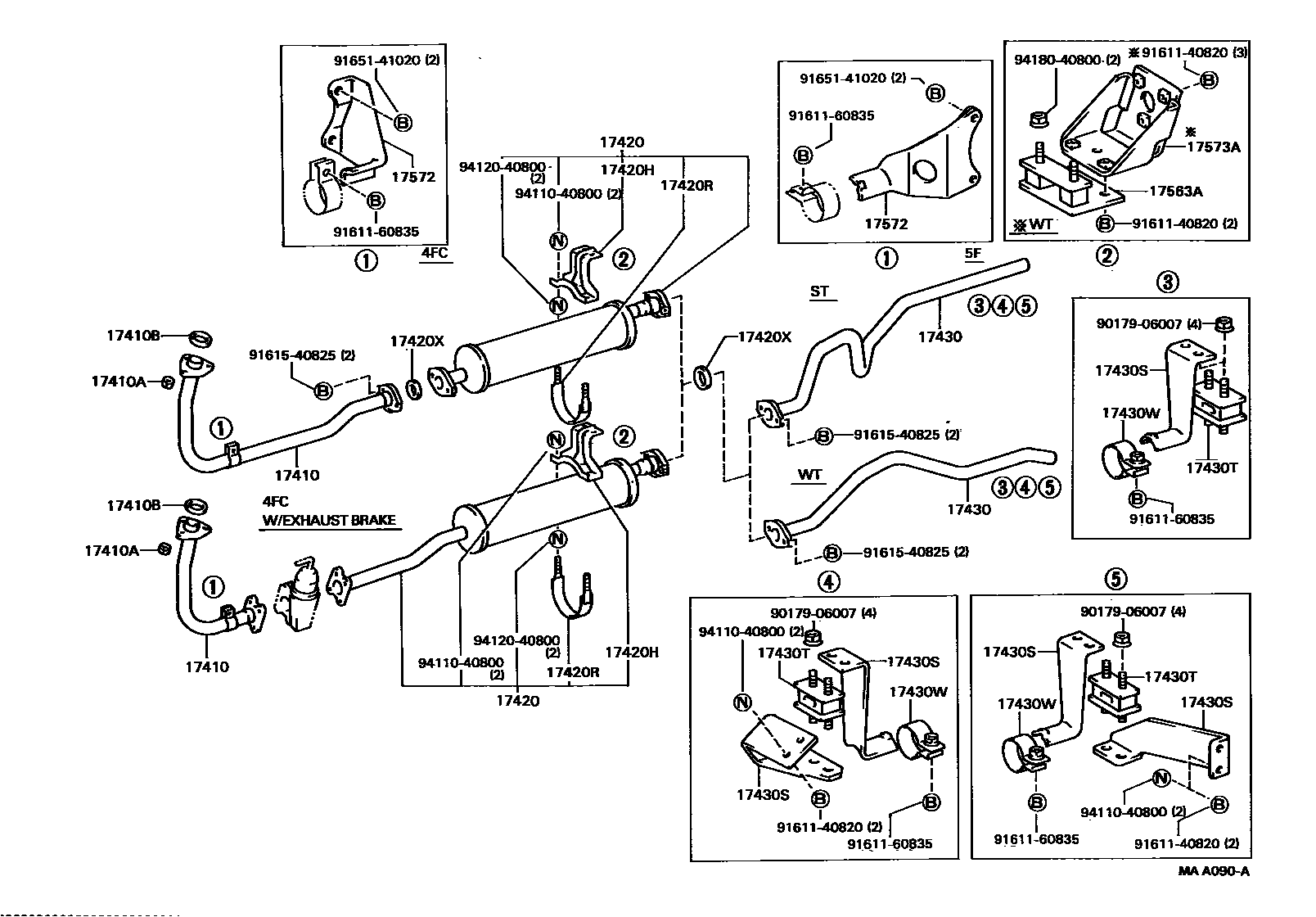

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-58030i13BT..BU85,90,95198708-198808

main17401-58040i13B..BU85,93,98198708-198808

main17410-58060i13B..BU62,64,82198708-198808

W(EXHAUST BRAKE)

sub17410-58050

main17410-58080iB,11B..BU60,61,70,80,81198708-198808

sub17410-58070

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070iB,11B,13B#..BU6#,70,8#,9#198708-198808

17410BGASKET, EXHAUST PIPE

main90917-06005i13BT..BU85,90,95198708-198808

sub90917-06042

main90917-06012iB,11B,13B..BU6#,70,8#,93,98198708-198808

sub90917-06045

17420PIPE ASSY, EXHAUST, CENTER

main17403-56280i13B..BU85198708-198808

main17403-56290i13BT..BU85,90198708-198808

sub17403-56280

main17403-56300i13B..BU93198708-198808

main17403-56310i13BT..BU95198708-198808

sub17403-56300

main17403-58020i13B..BU98198708-198808

main17420-58090iB,11B..BU60,61,70..ST198708-198808

main17420-58130iB,11B..BU60,61..WT198708-198808

main17420-58150i13B..BU64198708-198808

main17420-58190iB,11B..BU80,81198708-198808

sub17420-73040

main17420-58200i13B..BU82198708-198808

W(EXHAUST BRAKE)

main17420-58210i13B..BU62..ST198708-198808

W(EXHAUST BRAKE)

main17420-58220i13B..BU62..WT198708-198808

W(EXHAUST BRAKE)

17420HCLAMP NO.1, EXHAUST PIPE CENTER, CENTER

main17576-56020iB,11B,13B..BU6#,70,80,81,82198708-198808

main17576-56040i13B#..BU85,90,93,95198708-198808

17420RCLAMP NO.2, EXHAUST PIPE CENTER, CENTER

main17504-56010iB,11B,13B..BU6#,70,80,81,82198708-198808

main17504-56020i13B#..BU85,90,93,95198708-198808

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06008i13B..BU62,64,82198708-198808

W(EXHAUST BRAKE)

sub90917-06047

17430PIPE ASSY, EXHAUST, TAIL

main17405-58011i13B..BU85..T2198708-198808

main17405-58210i13B..BU93;13B..BU85..V;13B#..BU85,90,95..T3,T4,TW1198708-198808

main17430-58060iB..BU70198708-198808

main17430-58070iB,11B,13B..BU60,61,62..ST198708-198808

main17430-58080i13B..BU62..275,30T198708-198808

main17430-58090iB,11B,13B..BU60,61,62..T2,T4,TW2,TW4198708-198808

main17430-58100i13B..BU62..DM2198708-198808

main17430-58110iB,13B..BU60,62..(DM3,T3,TW1)..WT..(20T,IV4)198708-198808

main17430-58120i13B..BU64198708-198808

main17430-58130i13B..BU82..T3,TW1198708-198808

main17430-58140iB,11B,13B..BU80,81,82..T4198708-198808

main17430-58150i11B,13B..BU81,82..T2198708-198808

main17430-58220i13B..BU98198708-198808

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17561-47010i13B#..BU85,90,93,95198708-198808

PIPE SIDE

main17561-56010iB,13B..BU60,62,64..(DM1,DM3,DM4,T3,TW1)..WT..(20T,IV4)198708-198808

PIPE SIDE

main17574-58040i13B..BU85..V;13B..BU62..275,30T;B,11B,13BT..BU61,80,85,90,95..WT;11B,13B..BU81,82,85,93..T3,T4,TW1;B,13B..BU60,62..DM2,T2,T4,TW2,TW4198708-198808

BODY SIDE

main17574-58050iB,11B,13B..BU60,61,62,70..ST198708-198808

BODY SIDE

main17574-58060i11B,13B..BU81,82,85..T2198708-198808

BODY SIDE

main17576-58010i13B..BU98198708-198808

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-61030iB,11B,13B#..BU6#,70,8#,90,93,95198708-198808

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-32005iB,11B,13B..BU6#,70,80,81,82198708-198808

main90461-32007i13B#..BU85,90,93,95198708-198808

17563ASUPPORT, EXHAUST PIPE, NO.3

main17563-58010iB,11B,13B..BU6#,70,80,81,82198708-198808

sub17563-58041

main17567-58010i13B#..BU85,90,93,95198708-198808

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-36041i13B..BU62..IV4198708-198808

main17571-58020i13B..BU62..4FC198708-198808

main17571-58030i13B..BU85,93,98..5F198708-198808

main17571-58080i13BT..BU85,90,95198708-198808

main17571-58120i13B..BU85..4FC198708-198808

main17571-58140iB,11B,13B..BU6#,70,80,81,82..5F..(CBU,IV3)198708-198808

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-58030i13B..BU98198708-198808

main17573-58040iB,11B,13B..BU60,61,62,80,81,82..(DM3,T2,T3,T4,TW1,TW2,TW4)..WT198708-198808

main17573-58050i13B..BU62..DM2198708-198808

main17573-58060i13B#..BU85,90,93,95198708-198808

9017906007

main90179-06007

9161140820

main91611-40820

9161160835

main91611-60835

9161540825

main91615-40825

9165141020

main91651-41020

9411040800

main94110-40800

9412040800

main94120-40800

9418040800

main94180-40800

22 parts on this diagram · 8 diagrams in section
