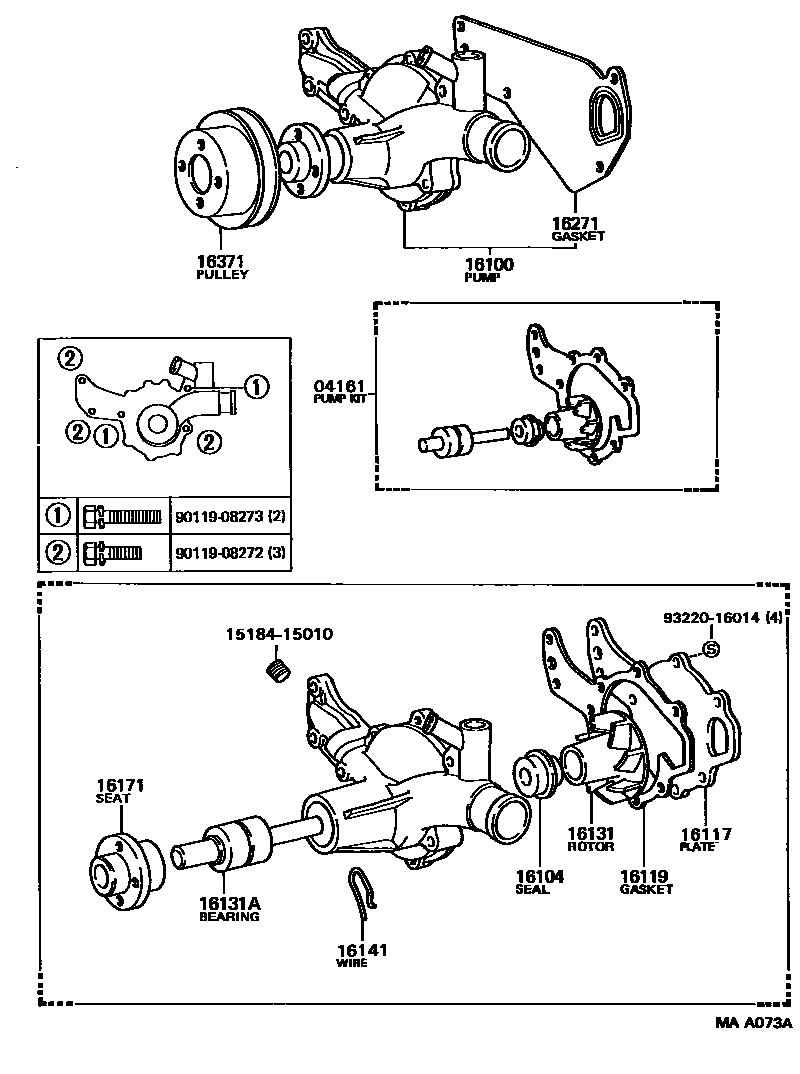

WATER PUMP

0001 1 0002 1

04161PUMP KIT, WATER

main04161-56041iB..BU60,70,80198708-198808

sub04161-56042

main04161-56090i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

sub04161-56091

16100PUMP ASSY, ENGINE WATER

main16100-59076iB..BU60,70,80198708-198808

main16100-59145i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

16104SEAL SET, WATER PUMP

main16104-15020iB,11B,13B#..BU6#,70,8#,9#198708-198808

16117PLATE, WATER PUMP

main16117-56040iB,11B,13B#..BU6#,70,8#,9#198708-198808

16119GASKET, WATER PUMP BODY

main16119-56040iB,11B,13B#..BU6#,70,8#,9#198708-198808

sub16119-56041

16131ROTOR, WATER PUMP

main16131-56030iB,11B,13B#..BU6#,70,8#,9#198708-198808

16131ABEARING, WATER PUMP

main90369-30061iB,11B,13B#..BU6#,70,8#,9#198708-198808

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010iB,11B,13B#..BU6#,70,8#,9#198708-198808

16171SEAT, WATER PUMP PULLEY

main16171-35010i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

main16171-56010iB..BU60,70,80198708-198808

16271GASKET, WATER PUMP

main16271-56020iB,11B,13B#..BU6#,70,8#,9#198708-198808

sub16271-56030

16371PULLEY, FAN

main16371-56021iB..BU60,70,80198708-198808

main16371-56050i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

1518415010PLUG, TAPER SCREW(FOR WATER PUMP)

main15184-15010

9011908272

main90119-08272

9011908273

main90119-08273

9322016014

main93220-16014

15 parts on this diagram · 2 diagrams in section
