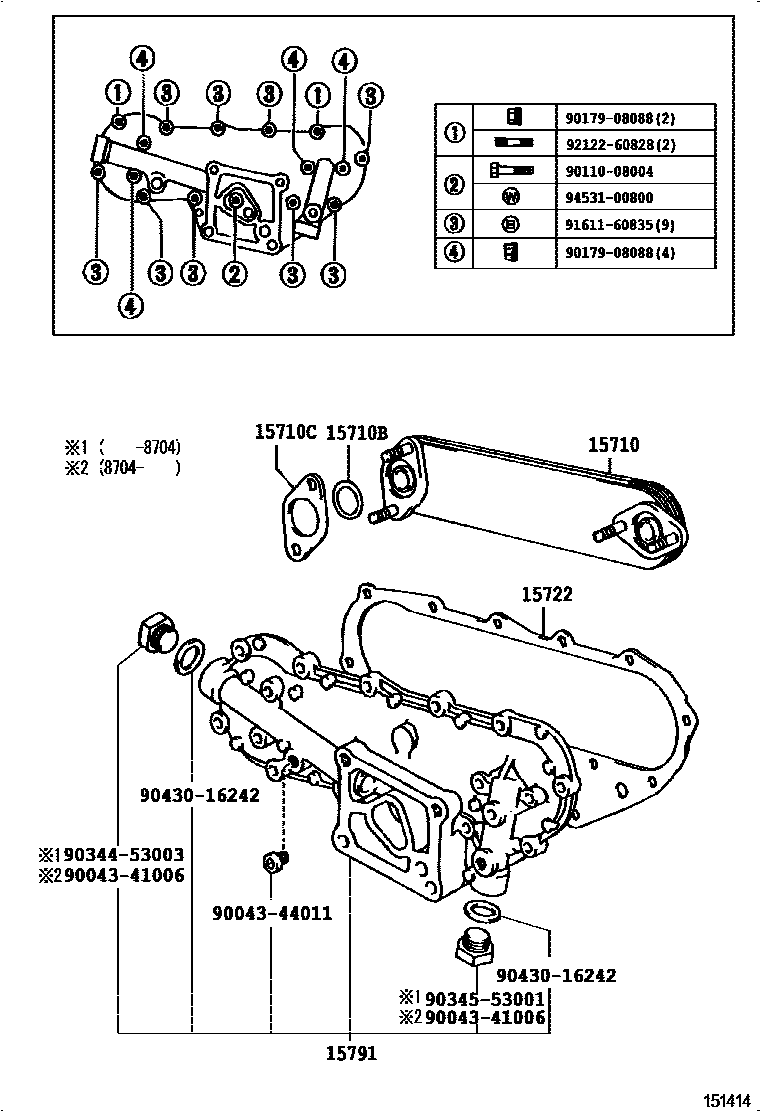

ENGINE OIL COOLER

0001 1 0002 1

15710COOLER ASSY, OIL

main15710-56041iB,11B,13B..BU6#,70,8#,93,98..CBU,IV3198708-198808

main15710-56051i13BT..BU85;13B#..BU62,90,95..35T,IV4198708-198808

15710BRING, O(FOR OIL COOLER)

main90301-20001iB,11B,13B#..BU6#,70,8#,9#198708-198808

15710CGASKET(FOR OIL COOLER)

main90923-05014iB,11B,13B#..BU6#,70,8#,9#198708-198808

sub90923-05018

15722GASKET, OIL COOLER

main15725-56011iB,11B,13B#..BU6#,70,8#,9#198708-198808

sub15725-56020

15791CASE, OIL COOLER

main15701-56011iB,11B,13B..BU6#,70,8#,93,98..CBU,IV3198708-198808

main15701-58010i13BT..BU85,90,95198708-198808

main15701-58021i13B..BU62..IV4198708-198808

9004341006

main90043-41006

9004344011

main90043-44011

9011008004

main90110-08004

9017908088

main90179-08088

9034453003

main90344-53003

9034553001

main90345-53001

9043016242

main90430-16242

9161160835

main91611-60835

9212260828

main92122-60828

9453100800

main94531-00800

15 parts on this diagram · 2 diagrams in section
