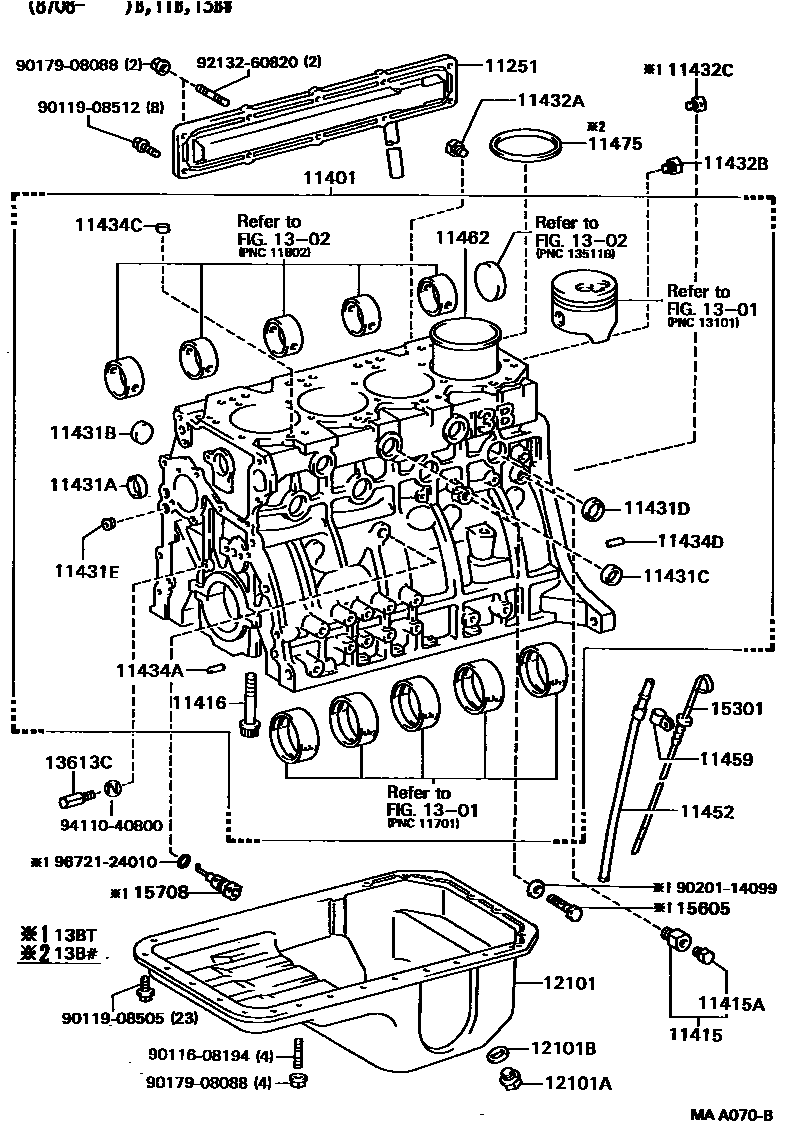

CYLINDER BLOCK

11251COVER, VALVE PUSH ROD

main11203-56041iB..BU60,70,80198708-198808

main11203-56050i11B,13B#..BU61,62,64,81,82,85,9#198708-198808

11401BLOCK SUB-ASSY, CYLINDER

main11401-59265iB..BU60,70,80198708-198808

sub11401-59266

sub15403-56050

sub90401-20009

sub90430-20018

main11401-59275i11B..BU61,81198708-198808

sub11401-59276

sub15403-56050

sub90401-20009

sub90430-20018

main11401-59285i13B..BU62,64,82,85,93,98198708-198808

sub11401-59286

sub15403-56050

sub90401-20009

sub90430-20018

main11401-59295i13BT..BU85,90,95198708-198808

sub11401-59296

sub15403-56050

sub15605-56010

sub90401-20009

sub90430-18012

sub90430-20018

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-53828iB,11B,13B#..BU6#,70,8#,9#198708-198808

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96432-23814iB,11B,13B#..BU6#,70,8#,9#198708-198808

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90109-16001×10iB,11B,13B#..BU6#,70,8#,9#198708-198808

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-51032×2iB,11B,13B#..BU6#,70,8#,9#198708-198808

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-42800×4iB,11B,13B#..BU6#,70,8#,9#198708-198808

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43000×4iB,11B,13B#..BU6#,70,8#,9#198708-198808

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-43500×4iB,11B,13B#..BU6#,70,8#,9#198708-198808

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41400i13BT..BU85,90,95198708-198808

OIL HOLE

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90043-45027×4iB,11B,13B#..BU6#,70,8#,9#198708-198808

sub90345-51007

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53001iB,11B,13B#..BU6#,70,8#,9#198708-198808

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001i13BT..BU85,90,95198708-198808

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120×4iB,11B,13B#..BU6#,70,8#,9#198708-198808

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005×2iB,11B,13B#..BU6#,70,8#,9#198708-198808

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-08120×2iB,11B,13B#..BU6#,70,8#,9#198708-198808

11452GUIDE, OIL LEVEL GAGE

main11452-56050iB,11B,13B#..BU6#,70,8#,9#198708-198808

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-56040iB,11B,13B#..BU6#,70,8#,9#198708-198808

11462LINER, CYLINDER

main11461-56030×4iB,11B..BU60,61,70,80,81198708-198808

main11461-58020×4i13B#..BU62,64,82,85,9#198708-198808

11475SHIM, CYLINDER LINER

12101PAN SUB-ASSY, OIL

main12101-56060iB..BU60,70,80198708-198808

main12101-56070i11B,13B#..BU61,62,64,81,82,85,9#..CBU,IV3198708-198808

main12101-58030i13B..BU62..IV4198708-198808

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089iB,11B,13B#..BU6#,70,8#,9#198708-198808

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244iB,11B,13B#..BU6#,70,8#,9#..CBU,IV3198708-198808

sub90430-18023

1301

1302

13613CNOZZLE, OIL

main90915-01015iB,11B,13B#..BU6#,70,8#,9#198708-198808

15301GAGE SUB-ASSY, OIL LEVEL

main15301-56040iB,11B,13B#..BU6#,70,8#,9#198708-198808

sub15301-56051

15605VALVE SUB-ASSY, OIL CHECK

main15605-58010i13BT..BU85,90,95198708-198808

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-58020×16i13BT..BU85,90,95198708-198808

sub15708-56010

9011608194

main90116-08194

9011908505

main90119-08505

9011908512

main90119-08512

9017908088

main90179-08088

9020114099

main90201-14099

9213260820

main92132-60820

9411040800

main94110-40800

9672124010

main96721-24010

37 parts on this diagram · 1 diagram in section
