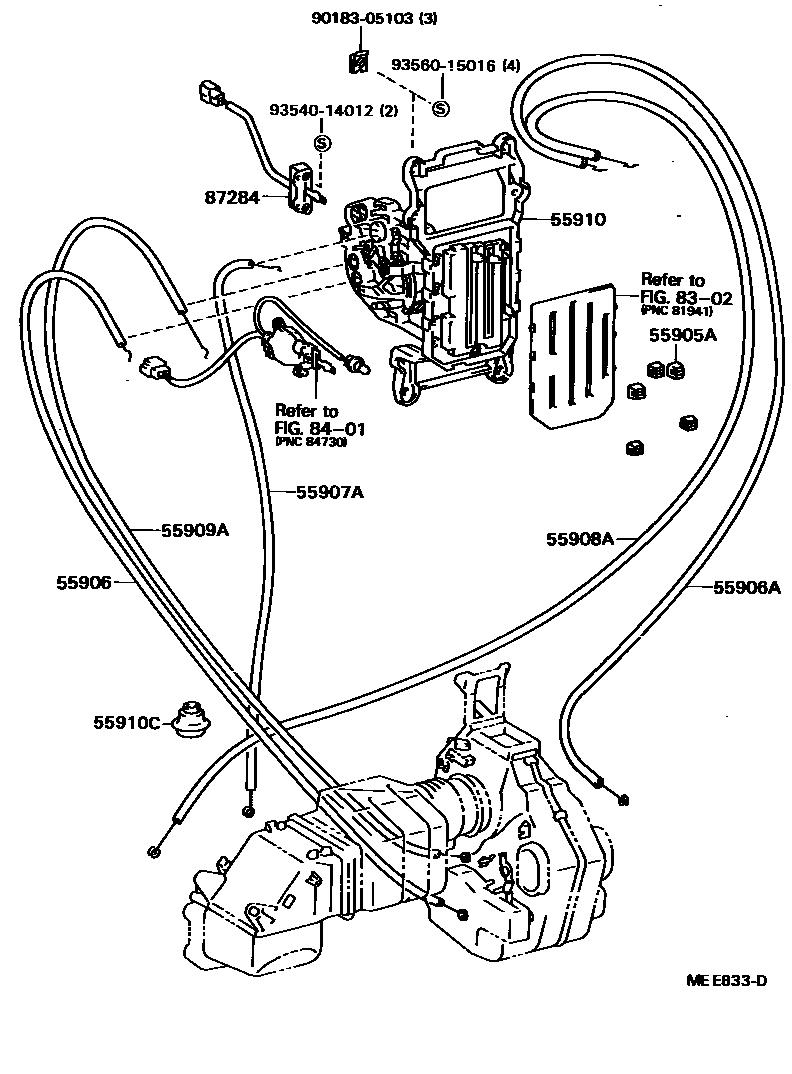

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905AKNOB, HEATER CONTROL

main55905-10110×3iBU6#,70,8#,9#198409-198508

CABLE LEVER

main55905-95707×2iBU6#,7#,8#,9#198508-198708

BLOWER SW OR VARIABLE RESISTOR

main55905-95J01×2iBU6#,70,8#,9#198409-198508

BLOWER SW OR VARIABLE RESISTOR

sub55905-89110

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-95401iBU6#,70,80,81,82198409-198708

main55905-95402iBU77,85,9#198409-198708

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95404iBU6#,70,80,81,82198409-198708

main55906-95405iBU77,85,9#198409-198708

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95404iBU6#,70,80,81,82198409-198708

main55907-95405iBU77,85,9#198409-198708

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iBU6#,70,80,81,82198409-198708

main55908-95403iBU77,85,9#198409-198708

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iBU6#,70,80,81,82198409-198708

main55909-95405iBU77,85,9#198409-198708

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95407iBU6#,7#,8#,9#198409-198708

sub55910-36070

sub55905-26010

sub55905-36010

sub55905-36020

sub55905-37020

sub55906-26020

sub55906-36030

sub55906-36040

sub55906-37010

sub55907-26020

sub55907-36010

sub55907-36020

sub55907-37010

main55910-95408iBU6#,7#,8#,9#..CBU,IV3198409-198708

COLD SPEC

sub55910-36080

sub55905-36010

sub55905-36020

sub55906-36030

sub55906-36040

sub55907-36010

sub55907-36020

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iBU77,85,9#198409-198708

main90480-24215iBU6#,70,80,81,82198409-198708

8302

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iBU6#,7#,8#,9#198409-198708

9018305103

main90183-05103

9354014012

main93540-14012

9356015016

main93560-15016

14 parts on this diagram · 2 diagrams in section
