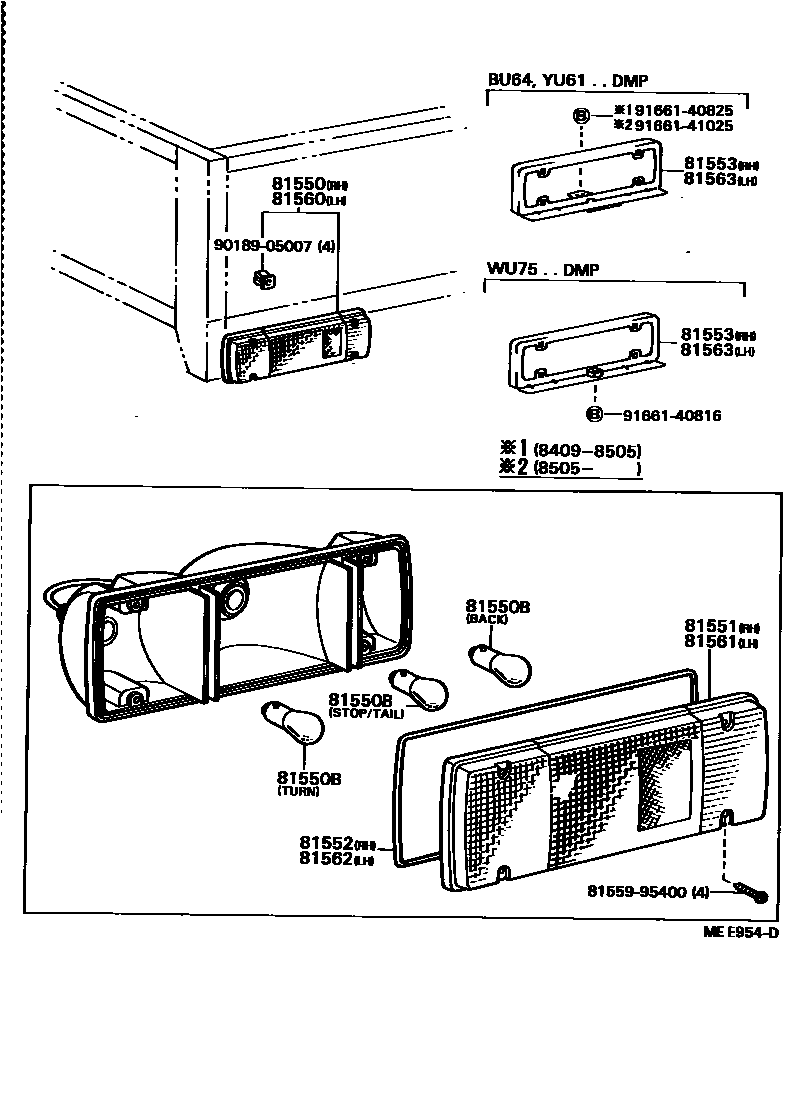

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39455iBU6#,77,8#,9#198409-198708

main81550-92605iBU70198409-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16021iBU6#,77,8#,9#198409-198708

main99134-11250iBU6#,7#,8#,9#198409-198708

main99134-22250iBU70198409-198708

81551LENS, REAR COMBINATION LAMP, RH

main81551-92605iBU70198409-198708

main81551-95400iBU6#,77,8#,9#198409-198708

sub81554-60441

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iBU6#,7#,8#,9#198409-198708

81553BRACKET, REAR COMBINATION LAMP, NO.1 RH

main75103-95410iBU64..DMP198409-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81550-92605iBU70198409-198708

main81560-39425iBU6#,77,8#,9#198409-198708

81561LENS, REAR COMBINATION LAMP, LH

main81551-92605iBU70198409-198708

main81561-95400iBU6#,77,8#,9#198409-198708

sub81564-60371

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iBU6#,7#,8#,9#198409-198708

81563BRACKET, REAR COMBINATION LAMP, NO.1 LH

main75103-95410iBU64..DMP198409-198708

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9018905007

main90189-05007

9166140816

main91661-40816

9166140825

main91661-40825

9166141025

main91661-41025

14 parts on this diagram · 2 diagrams in section
