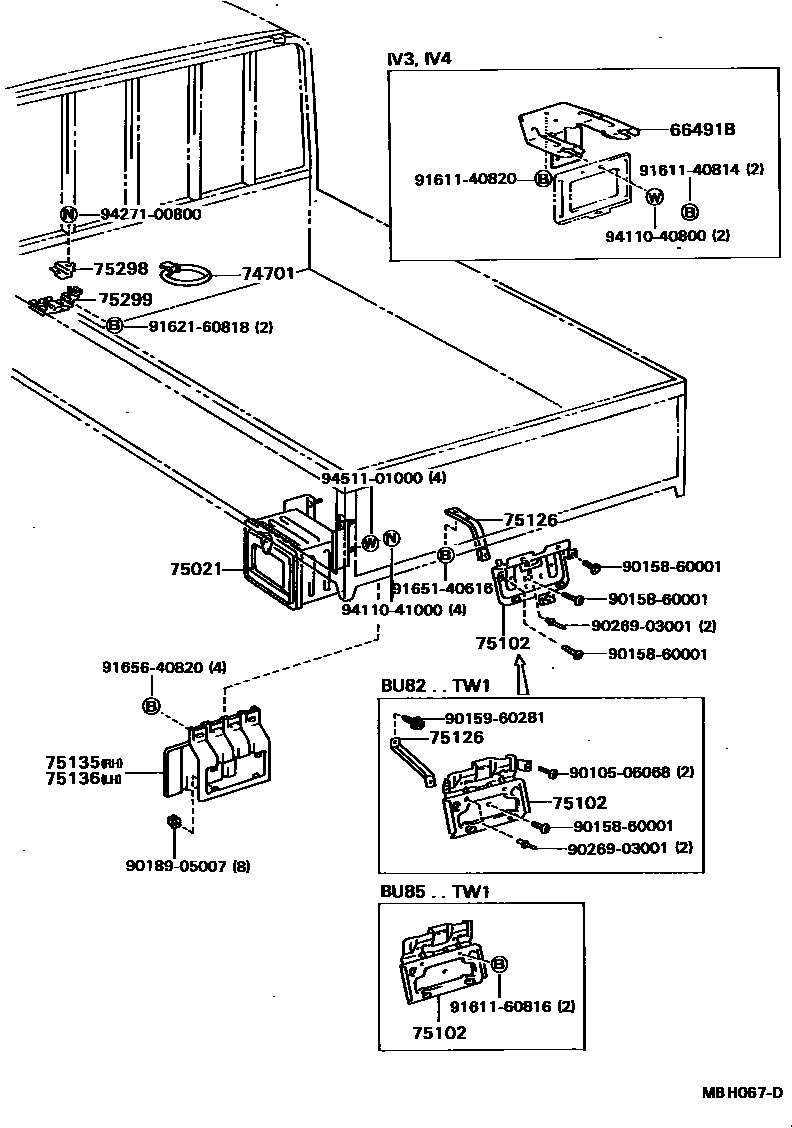

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412iBU62..BTP,CTP,DTP198508-198708

W/PAT CLIFF

74701CLAMP SUB-ASSY, TOOL BAG

main58705-92601iBU60,62,82,85..06S198409-198708

main58705-95400iBU6#,77,8#,9#..03S198409-198708

75021BOX SUB-ASSY, TOOL

main75021-93101iBU62..DM2198409-198412

sub75021-93103

main75021-93102iBU64..DMP198409-198708

main75021-93103iBU62..DM2198412-198708

main75021-93300iBU62..DM3198409-198510

main75021-93301iBU62..DM3198510-198708

main75210-92704iBU60..T3..ST198409-198708

main75210-92705iBU60,61,62..T2,T4198409-198708

main75210-92706iBU60..T3..WT198409-198708

main75210-92708iBU64..T3198409-198708

sub75210-37070

main75210-92803iBU77198510-198708

main75210-92804iBU8#,90,93,95..03S198409-198708

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92702iBU60,61,62..(T2,T4,TW2,TW4)..CBU198409-198708

main66490-92703iBU60,64..T3..WT..CBU198409-198708

main66490-92704iBU62..275..CBU198409-198708

main66490-95018iBU60..(T1,TW1)..CBU198409-198708

main75102-25020iBU60,61,62..(T2,T4)..5F..CBU198409-198708

W/RAT CLIFF

main75102-36010iBU62,64..(DM1,DM3,DM4)..CBU198409-198708

sub75102-92800

main75102-92605iBU70198409-198708

main75102-92800iBU80,81,85,90,93,95198409-198708

main75102-92801iBU82..CBU198409-198708

main75102-92802iBU77..CBU198510-198708

main75102-93100iBU62..DM2..CBU198409-198708

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95011iBU60..T1,TW1198409-198708

main66493-92601iBU70198409-198708

main66493-92701iBU6#..T3..CBU198409-198708

main66493-92702iBU60,61,62..(T2,T4,TW2,TW4)..CBU198409-198708

main66493-92705iBU64..T3..CBU198409-198508

W/POWER GATE

main66493-92706iBU60,61,62..TR..5F..03S..WT..(175,20T)..CBU198409-198508

W/POWER GATE

main66493-92708iBU60,61,62..T3..5F..ST..CBU198508-198708

W/POWER GATE

main66493-92709iBU60,61,62..(T2,T4)..5F..CBU198508-198708

W/POWER GATE

main66493-92802iBU82..CBU198409-198708

main66493-92804iBU77..CBU198510-198708

75135BRACKET, COMBINATION REAR LAMP, RH

main58378-92701iBU6#..(T2,T3,T4)..5F..20T198409-198708

W/POWER GATE

sub58378-37020

main75105-92700iBU82,85..06S198409-198708

sub75105-37030

main75105-93100iBU64..DMP..CBU198409-198708

main75105-93101iBU62..DMP198409-198708

75136BRACKET, COMBINATION REAR LAMP, LH

main58378-92701iBU60,61,62..T2,T4198409-198708

W/POWER GATE

sub58378-37020

main58378-92701iBU60..T3..WT198608-198708

sub58378-37020

main75105-92700iBU77,8#,90,93,95..TR198409-198708

sub75105-37030

main75106-93100iBU64..DMP..CBU198409-198708

main75106-93101iBU62..DMP198409-198708

75298PLATE, JACK HOLDER

main75298-95400iBU70;BU6#,77,8#,93,98..03S198409-198708

main75298-95401iBU90,95198409-198708

75299BASE, JACK HOLDER

main58790-92600iBU70..03S,06S198508-198708

main75209-95402iBU6#,82..T1,T3;BU62..BTP,CTP,DTP198409-198509

sub75299-95400

sub91631-60816

main75209-95403iBU70..03S,06S198409-198509

sub75299-95401

main75209-95404iBU85..ETP;BU85..T3..(20T,30T)198409-198509

sub75299-95402

main75209-95405iBU90,95198409-198708

main75299-95400iBU62,64..DM1,DM3,DM4198509-198708

main75299-95401iBU60,61,62..ST..20T198509-198708

sub75299-37060

main75299-95402iBU85..ETP;BU77,85,93,98..T3198509-198708

9010506068

main90105-06068

9015860001

main90158-60001

9015960281

main90159-60281

9018905007

main90189-05007

9026903001

main90269-03001

9161140814

main91611-40814

9161140820

main91611-40820

9161160816

main91611-60816

9162160818

main91621-60818

9165140616

main91651-40616

9165640820

main91656-40820

9411040800

main94110-40800

9411041000

main94110-41000

9427100800

main94271-00800

9451101000

main94511-01000

24 parts on this diagram · 5 diagrams in section
