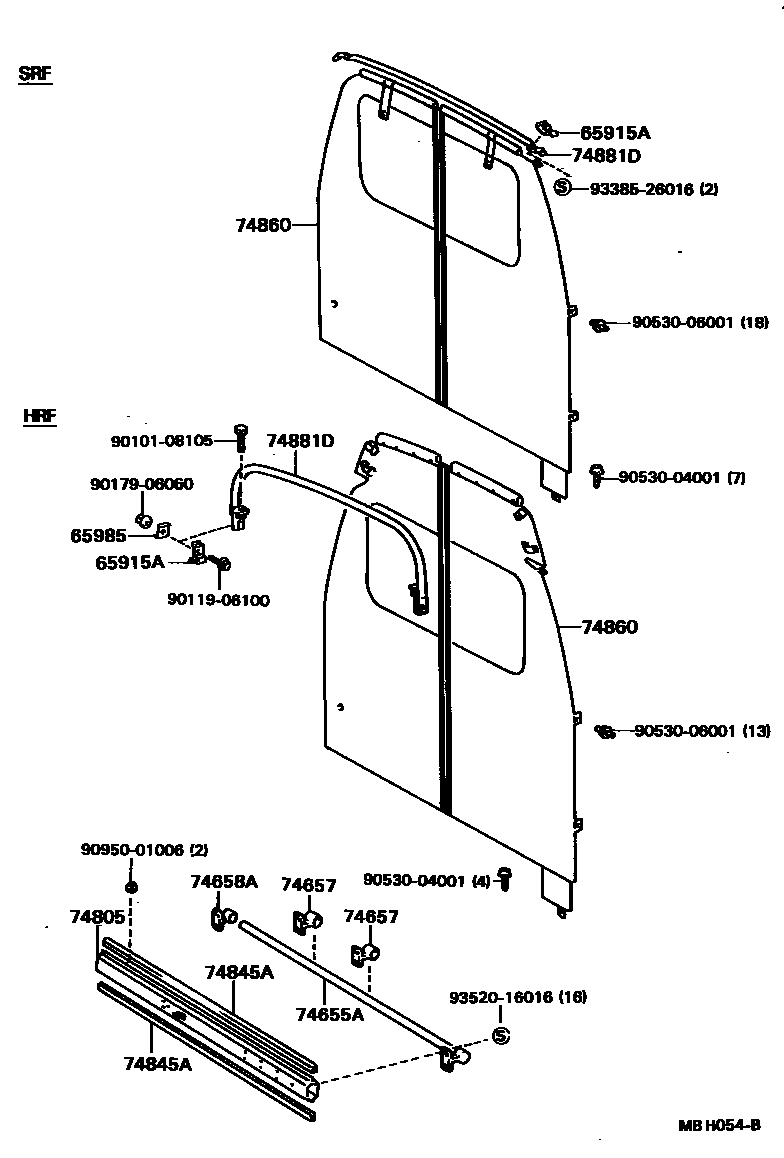

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1

65915ABRACKET, CURTAIN RAIL

main65915-92600×2iBU70..SRF198409-198708

main65915-92601×2iBU70..HRF198409-198708

65985HOLDER, CURTAIN RAIL

main65985-92600×2iBU70..HRF198409-198708

74655ABAR, HAND RAIL

main74606-92600iBU62..IV4198410-198708

74657BRACKET, HAND RAIL, NO.1

main74657-92600×2iBU62..IV4198410-198708

74658ABRACKET, HAND RAIL, NO.2

main74658-92600iBU62..IV4198410-198708

74805SEPARATOR SUB-ASSY

main74805-92601iBU85..06S198409-198708

main74805-92603iBU70..03S198409-198708

main74805-92608iBU60,70,82..06S,09S198409-198708

main74805-92614iBU62..IV4198410-198708

74845AORNAMENT, FRONT SEATBACK PANEL

main74845-92600-01×2iBU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

BLACK,BLACK

sub74845-95400

main74845-92601-01×2iBU85..06S198409-198708

BLACK,BLACK

sub74845-92602

74860CURTAIN ASSY, SEPARATE

main74870-92600iBU70..SRF198409-198708

main74870-92602iBU70..HRF198409-198708

74881DRAIL, SEPARATOR CURTAIN

main74881-92600iBU70..SRF198409-198708

main74881-92601iBU70..HRF198409-198708

9010108105

main90101-08105

9011906100

main90119-06100

9017906060

main90179-06060

9053004001

main90530-04001

9053006001

main90530-06001

9095001006

main90950-01006

9338526016

main93385-26016

9352016016

main93520-16016

17 parts on this diagram · 2 diagrams in section
