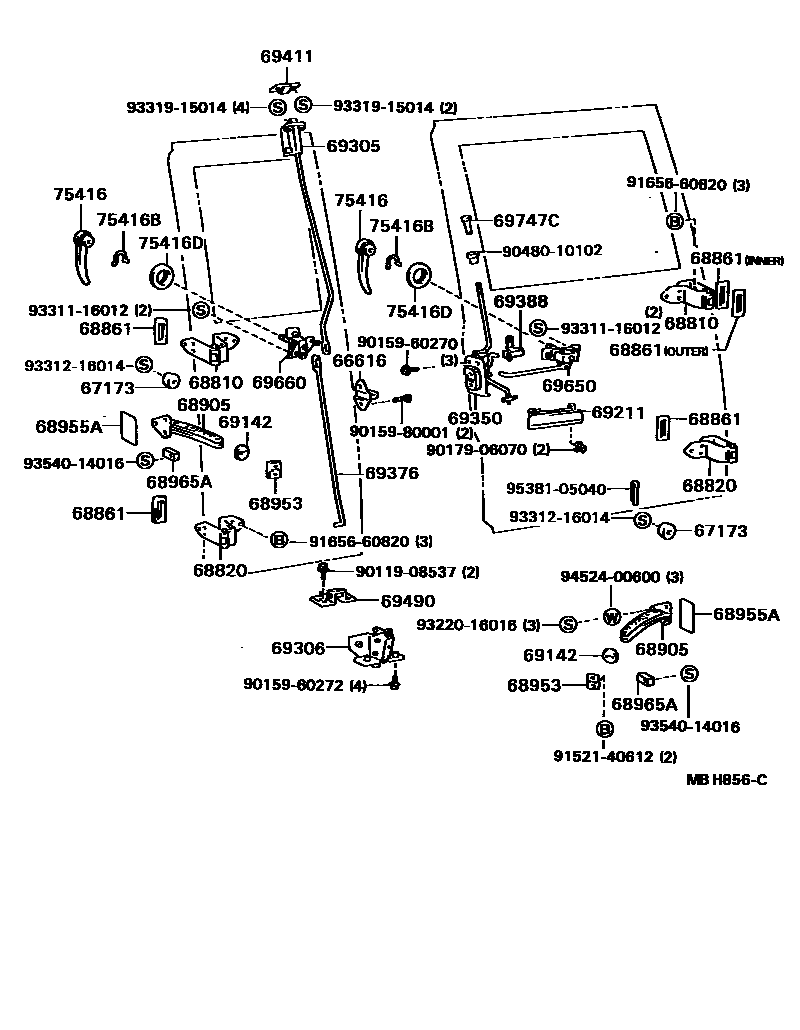

BACK DOOR LOCK & HINGE
66616STRIKER, TAIL GATE LOCK
sub69410-37010
67173CUSHION, BACK DOOR
68810HINGE ASSY, BACK DOOR, UPPER
68820HINGE ASSY, BACK DOOR, LOWER
68861HOLD, BACK DOOR HINGE
HINGE MALA
HINGE FEMALE
68905STOPPER SUB-ASSY, BACK DOOR OPEN
68953PLATE, BACK DOOR OPEN STOPPER ARM GUIDE
LH
68955ASILENCER, BACK DOOR OPEN STOPPER
68965AGUIDE, BACK DOOR OPEN STOPPER
69142CUSHION, DOOR OPEN STOPPER
69211HANDLE, BACK DOOR OUTSIDE, RH
69305LOCK SUB-ASSY, BACK DOOR, UPPER
69306LOCK SUB-ASSY, BACK DOOR, LOWER
69350LOCK ASSY, BACK DOOR
69376LINK, BACK DOOR LOCK
69388SNAP, ROD(FOR DOOR LOCK)
69411CHECK, BACK DOOR
69490STRIKER ASSY, BACK DOOR LOCK
69650CONTROL ASSY, BACK DOOR LOCK REMOTE, RH
69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH
69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)
75416HANDLE, TAIL GATE, INSIDE
75416BRING, SNAP (FOR BACK DOOR INSIDE HANDLE)
75416DESCUTCHEON, BACK DOOR INSIDE HANDLE
9011908537
main90119-08537
9015960270
main90159-60270
9015960272
main90159-60272
9015980001
main90159-80001
9017906070
main90179-06070
9048010102
main90480-10102
9152140612
main91521-40612
9165660820
main91656-60820
9322016016
main93220-16016
9331116012
main93311-16012
9331216014
main93312-16014
9331915014
main93319-15014
9354014016
main93540-14016
9452400600
main94524-00600
9538105040
main95381-05040
39 parts on this diagram · 1 diagram in section
