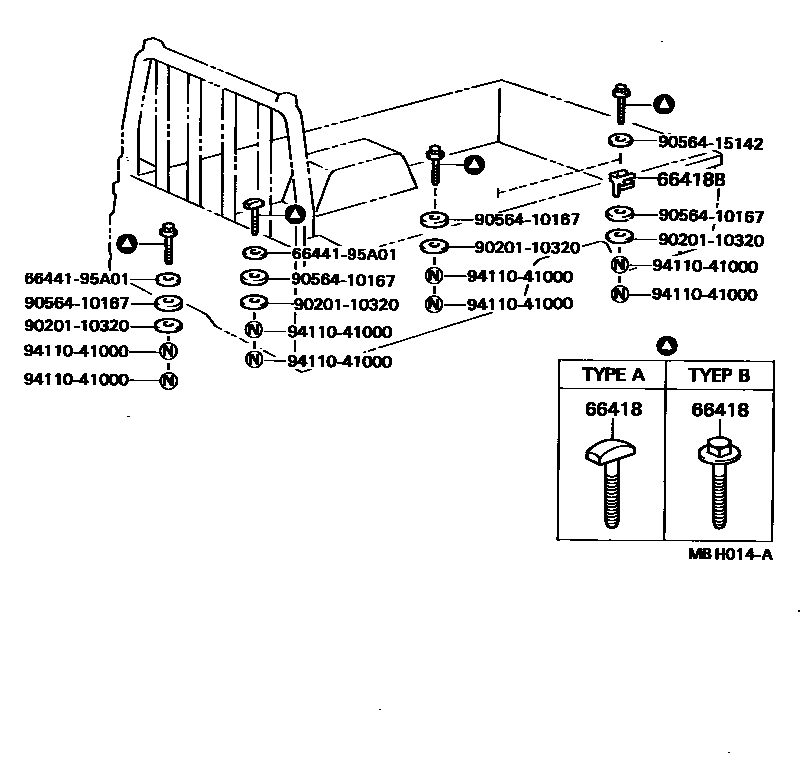

REAR BODY MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

66418BOLT, MOUNTING

main66418-95400×2iBU60..T1,TW1198409-198708

TYPE A

main90119-10004×6iBU60..ST..175198409-198708

TYPE B

main90119-10091×8iBU60..T1198509-198708

TYPE B

66418BSHIM, MOUNTING

main66439-95400iBU60..T1198409-198708

main66441-92220×2iBU60,61,62,80,81,85..T2,T4,TW2,TW4198409-198708

W/POWER GATE

sub90564-15142

6644195A01SHIM, MOUNTING, NO.1

main66441-95A01

9020110320

main90201-10320

9056410167

main90564-10167

9056415142

main90564-15142

9411041000

main94110-41000

7 parts on this diagram · 5 diagrams in section
