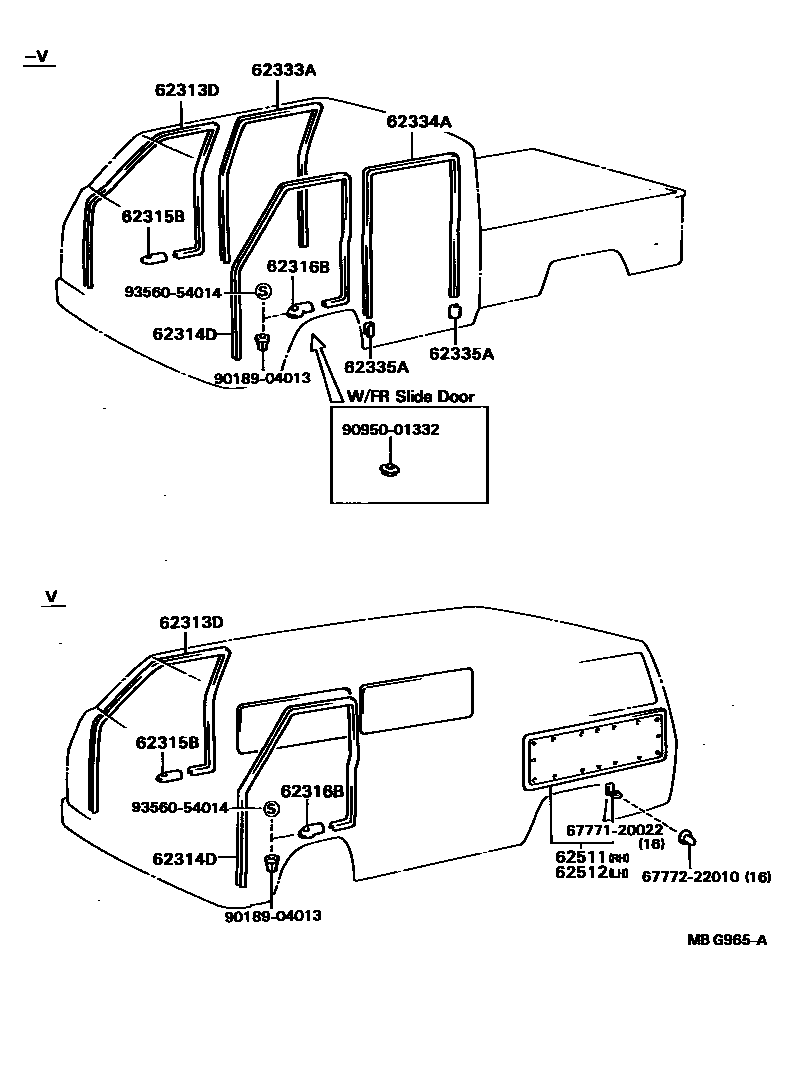

INSIDE TRIM BOARD

62313DTRIM, FRONT DOOR OPENING, RH

main62313-95404-03iBU6#,7#,8#,9#..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

sub62333-95400

main62313-95404-04iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

sub62333-95400

62314DTRIM, FRONT DOOR OPENING, LH

main62313-95404-03iBU6#,7#,8#,9#..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

sub62333-95400

main62313-95404-04iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

sub62333-95400

main62314-95404-03iBU85..TR..03S..DSL198409-198508

W/FR SLIDE DOOR,SHADOW GRAY,SHADOW GRAY

sub62313-95404

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-95400-03iBU6#,7#,8#,9#..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main62315-95400-04iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-95400-03iBU6#,7#,8#,9#..DYN198409-198708

SHADOW GRAY,SHADOW GRAY

main62316-95400-04iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

62333ATRIM, REAR DOOR OPENING, RH

main62313-95404-03iBU60,62,82,85..DYN..06S198508-198708

SHADOW GRAY,SHADOW GRAY

sub62333-95400

main62313-95404-04iBU60,82,85..TOY..06S198508-198708

BLUE,BLUE

sub62333-95400

main62333-92600-03iBU60,62,82,85..06S198409-198508

SHADOW GRAY,SHADOW GRAY

sub62313-95404

62334ATRIM, REAR DOOR OPENING, LH

main62313-95404-03iBU60,62,82,85..DYN..06S198508-198708

SHADOW GRAY,SHADOW GRAY

sub62333-95400

main62313-95404-04iBU60,82,85..TOY..06S198508-198708

BLUE,BLUE

sub62333-95400

main62333-92600-03iBU60,62,82,85..06S198409-198508

SHADOW GRAY,SHADOW GRAY

sub62313-95404

62335ACOVER, REAR DOOR OPENING TRIM

main62335-92600-03iBU60,62,82,85..DYN..06S198409-198708

SHADOW GRAY,SHADOW GRAY

sub62335-92600

main62335-92600-04iBU60,82,85..TOY..06S198508-198708

BLUE,BLUE

sub62335-92600

62511BOARD, QUARTER INSIDE TRIM, RH

main62610-92602-03iBU70198409-198708

FR,SHADOW GRAY,GRAY

main62620-92600-03iBU70198409-198708

RR,SHADOW GRAY,GRAY

62512BOARD, QUARTER INSIDE TRIM, LH

main62620-92600-03iBU70198409-198708

SHADOW GRAY,GRAY

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9018904013

main90189-04013

9095001332

main90950-01332

9356054014

main93560-54014

14 parts on this diagram · 1 diagram in section
