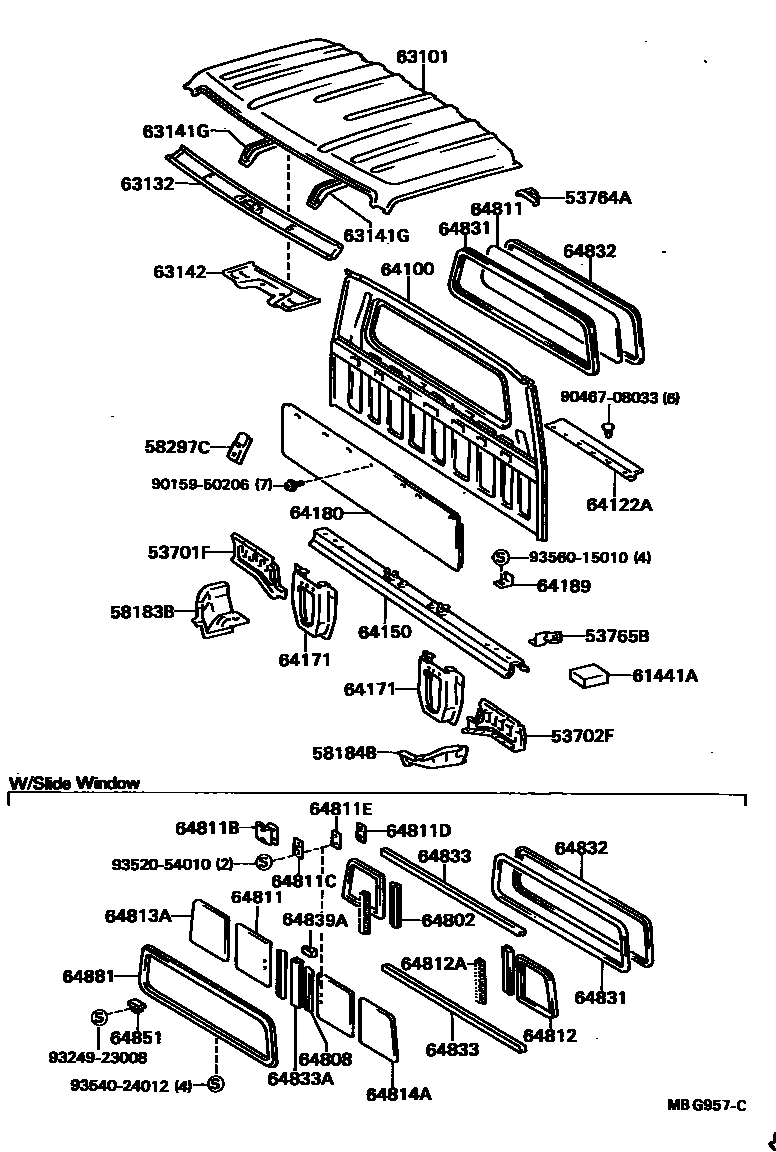

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

53701FAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53701-95407iBU6#,80,81,82..03S198409-198708

main53703-92604iBU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

main53703-92607iBU85..06S198409-198708

main53717-95410iBU77,85,9#..03S198409-198708

53702FAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53702-95412iBU6#,80,81,82..03S198409-198708

main53704-92600iBU85..06S198409-198708

main53704-92604iBU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

main53718-95411iBU77,85,9#..03S198409-198708

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-95403iBU85,9#..03S198409-198508

main53764-95404iBU77,85,9#..03S198508-198708

53765BBRACKET, AIR CLEANER INLET, NO.2

main53765-95401iBU85,9#..03S198409-198508

main53765-95402iBU77,85,9#..03S198508-198708

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95402iBU85..06S198409-198708

sub58183-95405

main58183-95403iBU62..BTP,CTP,DTP;BU62..DM2,T2,T3,T4;BU60,61,64,77,8#,9#..03S198409-198708

W/TILT CAB

sub58183-95404

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95401iBU85..06S198409-198708

sub58184-95404

main58184-95402iBU62..BTP,CTP,DTP;BU62..DM2,T2,T3,T4;BU60,61,64,77,8#,9#..03S198409-198708

W/TILT CAB

sub58184-95403

58297CREINFORCEMENT, SEAT BELT ANCHOR

main58297-95401iBU6#,77,8#,9#..03S198409-198708

61441ASILENCER, REAR PILLAR

main61441-95010iBU85..06S198409-198708

sub61824-12090

63101PANEL SUB-ASSY, ROOF

main63100-92601iBU85..06S198409-198708

main63111-95409iBU6#,80,81,82..03S198409-198708

sub63111-37010

sub63141-37010

main63111-95410iBU6#,80,81,82..03S198501-198708

W/*RV

sub63111-37020

sub63141-37010

main63111-95412iBU77,85,9#..03S198409-198708

main63115-92603iBU60,82..06S198409-198708

main63115-92607iBU62..IV4198410-198708

63132PANEL, WINDSHIELD HEADER, INNER

main63102-92200iBU70..HRF198603-198708

main63102-92606iBU62..IV4198410-198603

main63102-95401iBU77,85,9#198603-198708

W/LH VISOR

main63102-95402iBU77,85,9#198409-198603

sub90950-06047

main63132-95417iBU6#,80,81,82..CBU,IV3198409-198603

sub90950-06047

main63132-95418iBU62..DM2,T2,T4198409-198603

W/LH VISOR

sub63132-37010

main63132-95419iBU62..T4198409-198501

W/*RV

sub90950-06047

main63132-95420iBU62..DM2,T2,T4198501-198603

W/LH VISOR & *RV

sub63132-37010

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-95403×2iBU77,85,9#..03S198409-198708

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iBU6#,80,81,82..03S198501-198708

64100PANEL ASSY, BACK, OUTER

main64100-95433iBU6#,80,81,82..03S198409-198708

main64100-95437iBU77,85,9#..03S198409-198708

sub64100-3V020

main64100-95439iBU62..T4198409-198708

W/ROOM LAMP

main64100-95440iBU85..ETP;BU85..20T..DSL198409-198508

W/ROOM LAMP

sub64100-3V040

main64101-92601iBU85..06S198409-198708

main64101-92602iBU62..IV4198410-198708

main64101-95402iBU60,82..06S198409-198708

64122ABAFFLE, DUST REAR BODY

main64122-95403iBU60,62,82..06S198409-198509

main64122-95405iBU62..BTP,CTP,DTP;BU6#,80,81,82..T2,T3,T4198409-198708

main64122-95406iBU77,85,9#198409-198708

main64122-95407iBU60..T1198409-198708

main64122-95A06iBU60,62,82..06S198509-198708

64150FRAME ASSY, BACK

main64107-92600iBU70..09S;BU60,62,82..06S198409-198508

main64107-92601iBU85..06S198409-198508

main64107-92602iBU70..09S;BU60,62,82..06S198508-198708

main64107-92603iBU70..03S,06S198508-198708

main64107-92608iBU85..06S198508-198708

main64107-92619iBU70..03S,06S198409-198508

main64107-95411iBU6#,80,81,82..03S198409-198708

main64107-95414iBU77,85,9#..03S198409-198708

64171BRACKET, CAB REAR MOUNTING

main64025-95400iBU77,85,9#..03S198409-198708

RH

sub64025-37030

main64026-95400iBU77,85,9#..03S198409-198708

LH

main64171-95408×2iBU6#,80,81,82..03S198409-198708

main64171-95410×2iBU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4198409-198708

64180SILENCER ASSY, BACK PANEL

main64190-95400iBU6#,80,81,82..03S198409-198708

main64190-95401iBU77,85,9#..03S198409-198708

main64190-95402-03iBU62..DM2,T2,T4198409-198708

OWNER CUSTOM,GRAY,SHADOW GRAY

main64190-95403-03iBU85,9#..TR..03S198409-198507

OWNER CUSTOM,GRAY,SHADOW GRAY

64189CLAMP, BACK PANEL SILENCER

main64189-95400×4iBU6#,77,8#,9#..03S198409-198708

64802FRAME SUB-ASSY, BACK WINDOW FIX

main64882-95400×2iBU77,85,90,93,95..TR..03S198409-198708

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64883-95400×2iBU77,85,90,93,95..TR..03S198409-198708

64811GLASS, BACK WINDOW

main64811-95409iBU6#,80,81,82..03S198409-198708

main64811-95410iBU60,62,82,85..06S198409-198708

sub64811-37080

main64812-95402×2iBU77,85,90,93,95..TR..03S198409-198708

sub64811-37050

64811BLOCK ASSY, BACK WINDOW

main69370-89101iBU77,85,90,93,95..TR..03S198409-198708

64811CCATCH, BACK WINDOW LOCK

main69374-89101iBU77,85,90,93,95..TR..03S198409-198708

64811DRETAINER, BACK WINDOW

main69375-89102×2iBU77,85,90,93,95..TR..03S198409-198708

64811EPACKING, BACK WINDOW LOCK

main69376-89101×2iBU77,85,90,93,95..TR..03S198409-198708

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64837-95400×2iBU77,85,90,93,95..TR..03S198409-198708

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64832-95400×2iBU77,85,90,93,95..TR..03S198409-198708

sub64834-37010

64813AGLASS, BACK WINDOW CORNER, RH

main64814-95400iBU77,85,90,93,95..TR..03S198409-198708

sub64814-37010

64814AGLASS, BACK WINDOW CORNER, LH

main64814-95400iBU77,85,90,93,95..TR..03S198409-198708

sub64814-37010

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iBU6#,80,81,82..03S198409-198708

main64831-95016iBU60,62,82,85..06S198409-198708

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iBU6#,80,81,82..03S198409-198708

main64832-95013iBU60,62,82,85..06S198409-198708

sub64832-37040

64833WEATHERSTRIP, BACK WINDOW CHANNEL

main64831-95404iBU77,85,90,93,95..TR..03S198409-198708

UPR

main64834-95400iBU77,85,90,93,95..TR..03S198409-198708

LWR

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-95400iBU77,85,90,93,95..TR..03S198409-198708

64839APACKING, BACK WINDOW

main64839-89101×2iBU77,85,90,93,95..TR..03S198409-198708

64851STOP, BACK WINDOW SLIDE GLASS

main64851-95400iBU77,85,90,93,95..TR..03S198409-198708

64881CHANNEL, BACK WINDOW GLASS

main64881-95400iBU77,85,90,93,95..TR..03S198409-198708

9015950206

main90159-50206

9046708033

main90467-08033

9324923008

main93249-23008

9352054010

main93520-54010

9354024012

main93540-24012

9356015010

main93560-15010

42 parts on this diagram · 4 diagrams in section
