FLOOR INSULATOR

53774INSULATOR, APRON FRONT FENDER

main53774-95400iBU6#,80,81,82..5F..03S198409-198708

LH

main53774-95401iBU77,85,9#198409-198708

LH

main53783-95400iBU6#,80,81,82..5F..03S198409-198708

RH

main53783-95401iBU77,85,9#198409-198708

RH

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-92602iBU70198409-198708

sub58321-37010

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58045-92600iBU70198508-198708

main58322-92601iBU70198409-198508

58415AINSULATOR, SUB-COVER

main59268-95400iBU6#,70,8#,9#198409-198508

main59268-95402iBU6#,7#,8#,9#198508-198708

sub59268-95404

58467BINSULATOR, MISSION SERVICE HOLE COVER

main58327-92601iBU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

sub58327-37020

main58327-92602iBU85..06S198409-198708

sub58327-37060

58625AINSULATOR, ENGINE SERVICE MAIN HOLE COVER

main59258-95400iBU6#,7#,8#,9#198409-198708

sub59258-95402

9017906115

main90179-06115

9046709013

main90467-09013

9359016014

main93590-16014

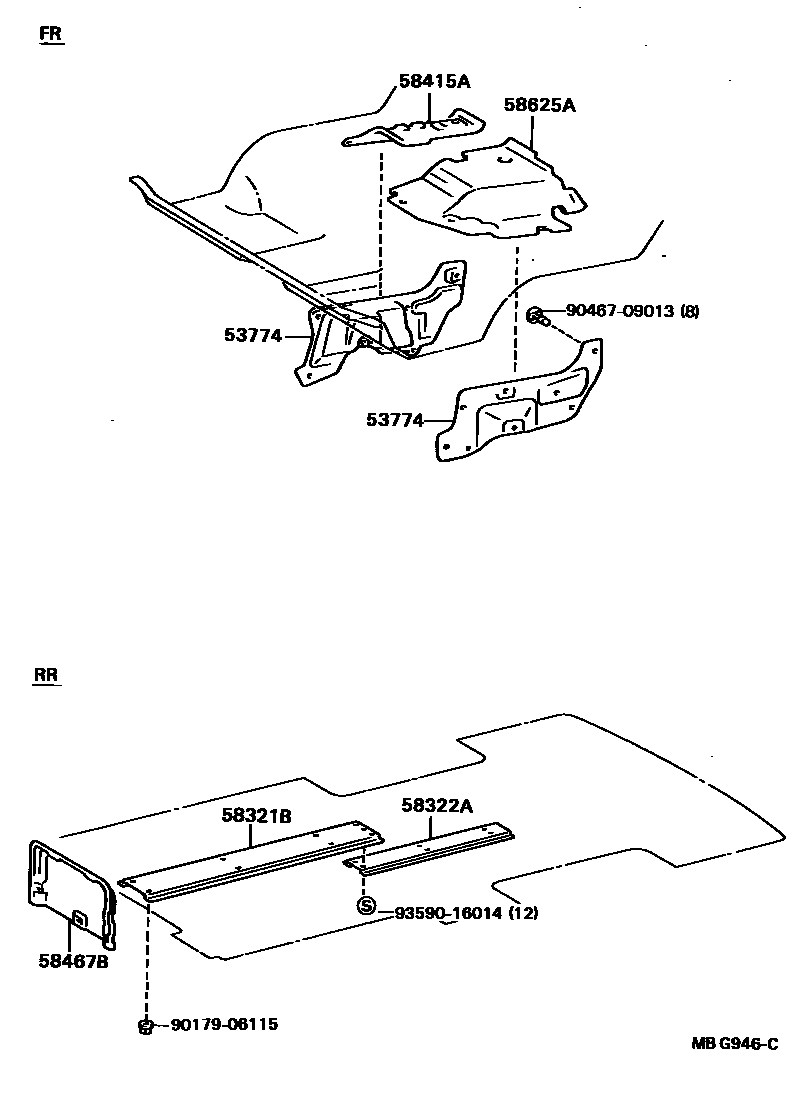

9 parts on this diagram · 1 diagram in section
