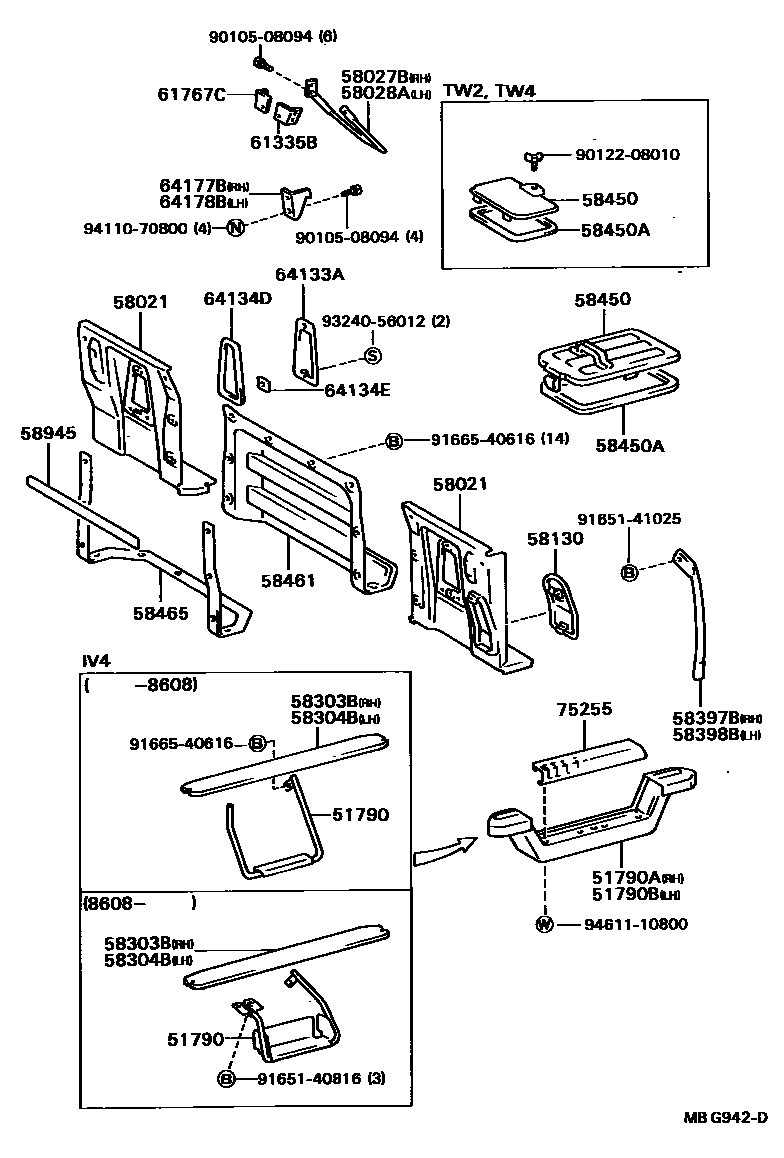

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51790STEP ASSY, REAR FLOOR

main51770-92600iBU62..IV4198608-198708

RH

main51780-92600iBU62..IV4198608-198708

LH

main51780-92601iBU62..IV4198410-198608

LH

main51790-92601iBU62..IV4198410-198608

RH

51790APLATE SUB-ASSY, REAR STEP, RH

main58309-95400iBU60,82,85..06S198409-198708

51790BPLATE SUB-ASSY, REAR STEP, LH

main58309-95400iBU60,82,85..06S198409-198708

58021PANEL SUB-ASSY, HEADER

main58021-92600iBU60,62,82..06S198409-198708

RH

main58021-92601iBU85..06S198409-198708

RH

main58021-92603iBU70198409-198708

RH

main58022-92600iBU60,62,82..06S198409-198708

LH

main58022-92601iBU85..06S198409-198708

LH

main58022-92603iBU70198409-198708

LH

main58022-92605iBU60,82..06S198409-198708

LH,W/RR HEATER

main58022-92606iBU85..06S198409-198708

LH,W/RR HEATER

main58022-92608iBU70..09S198409-198708

LH,COLD SPEC

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-92601iBU85..06S198611-198708

58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2

main58028-92601iBU85..06S198611-198708

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58130-92600iBU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

58303BSTEP SUB-ASSY, REAR FLOOR, RH

main58303-92601iBU62..IV4198410-198608

main58303-92605iBU62..IV4198608-198708

58304BSTEP SUB-ASSY, REAR FLOOR, LH

main58304-92600iBU62..IV4198410-198608

main58304-92601iBU62..IV4198608-198708

58397BSTAY, REAR STEP, RH

main58397-95400iBU60,82,85..06S198409-198708

58398BSTAY, REAR STEP, LH

main58398-95400iBU60,82,85..06S198409-198708

58450COVER ASSY, BATTERY SERVICE HOLE

main65305-95401iBU60,62,82,85..06S198409-198508

400X235

main65305-95A03iBU60,62,82,85..06S198508-198708

395X235

main65306-92605iBU70198409-198708

main65350-95405iBU60..WT..175198409-198708

176X142

58450APACKING, BATTERY SERVICE HOLE COVER

main58414-95400iBU60,62,82,85..06S198409-198508

400X235

main58446-95402iBU60..WT..175198409-198708

176X142

main65352-92607iBU70198409-198708

sub65352-37010

main65352-95A02iBU60,62,82,85..06S198508-198708

395X235

58461COVER, TRANSMISSION SERVICE HOLE

main58207-92605iBU60,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

sub58207-37020

main58207-92606iBU62..IV4198410-198708

main58207-92607iBU85..06S198409-198708

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-92601iBU60,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

main58465-92602iBU62..IV4198410-198708

main58465-92603iBU85..06S198409-198708

58945PACKING, TRANSMISSION SERVICE HOLE COVER

main58265-92601iBU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

61335BRETAINER, SEAT BELT ANCHOR

main61335-92600iBU85..06S198611-198708

61767CRETAINER, SEAT BELT ANCHOR, NO.2

main61767-92600iBU85..06S198611-198708

64133ACOVER, HEADER PANEL

main64133-95400iBU60,70,82,85..HRF,SRF,TW1,TW2,TW4198409-198708

64134DPACKING, HEADER PANEL COVER

main64134-95400iBU60,70,82,85..HRF,SRF,TW1,TW2,TW4198409-198708

64134ESEAL, HEADER PANEL COVER

main64138-95400iBU60,70,82,85..HRF,SRF,TW1,TW2,TW4198409-198708

64177BSTOPPER, REAR MOUNTING BRACKET, RH

main64177-92600iBU85..06S198611-198708

64178BSTOPPER, REAR MOUNTING BRACKET, LH

main64178-92600iBU85..06S198611-198708

75255COVER, STEP PLATE REAR, NO.1

main75253-95402iBU60,82,85..06S198409-198708

9010508094

main90105-08094

9012208010

main90122-08010

9165140816

main91651-40816

9165141025

main91651-41025

9166540616

main91665-40616

9324056012

main93240-56012

9411070800

main94110-70800

9461110800

main94611-10800

32 parts on this diagram · 2 diagrams in section
