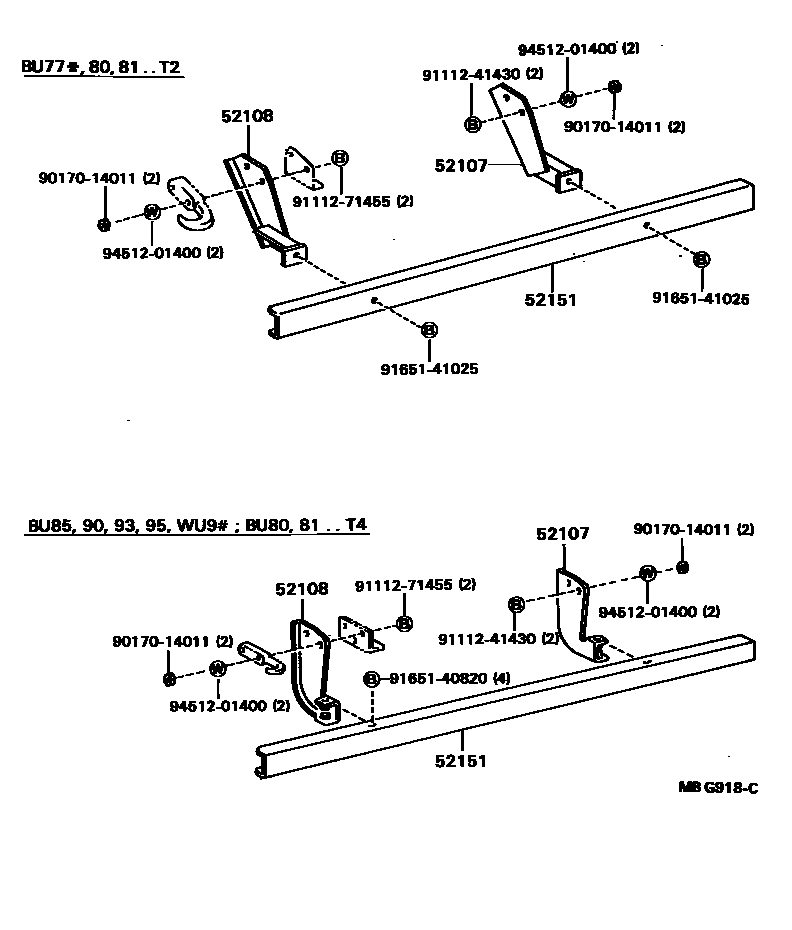

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52087-92701iBU62..275;BU62..DTP¥3,820198409-198708

main52087-92801iBU80,81..T2¥2,940198409-198708

main52087-92802iBU77¥6,700198510-198708

main52153-92820iBU80,81..T4¥2,110198409-198708

52108STAY SUB-ASSY, REAR BUMPER, LH

main52088-92701iBU62..275;BU62..DTP¥3,820198409-198708

main52088-92801iBU80,81..T2¥2,940198409-198708

main52088-92802iBU77¥6,700198510-198708

main52154-92820iBU80,81..T4¥2,230198409-198708

52151BUMPER ASSY, REAR

main52105-92700iBU60,61,62..(T3,TW1)..ST¥67,700198409-198708

main52151-92701iBU62..DTP;BU62,77,80,81..(T2,T3)..WT¥10,400198409-198708

main52151-92820iBU85;BU80,81..T4¥10,400198409-198708

main52151-92870iBU90,93,95¥7,200198409-198708

main52151-95401iBU60..T1¥67,700198409-198708

9017014011

main90170-14011

9111241430

main91112-41430¥310

9111271455

main91112-71455¥250

9165140820

main91651-40820¥90

9165141025

main91651-41025¥170

9451201400

main94512-01400¥100

9 parts on this diagram · 3 diagrams in section
