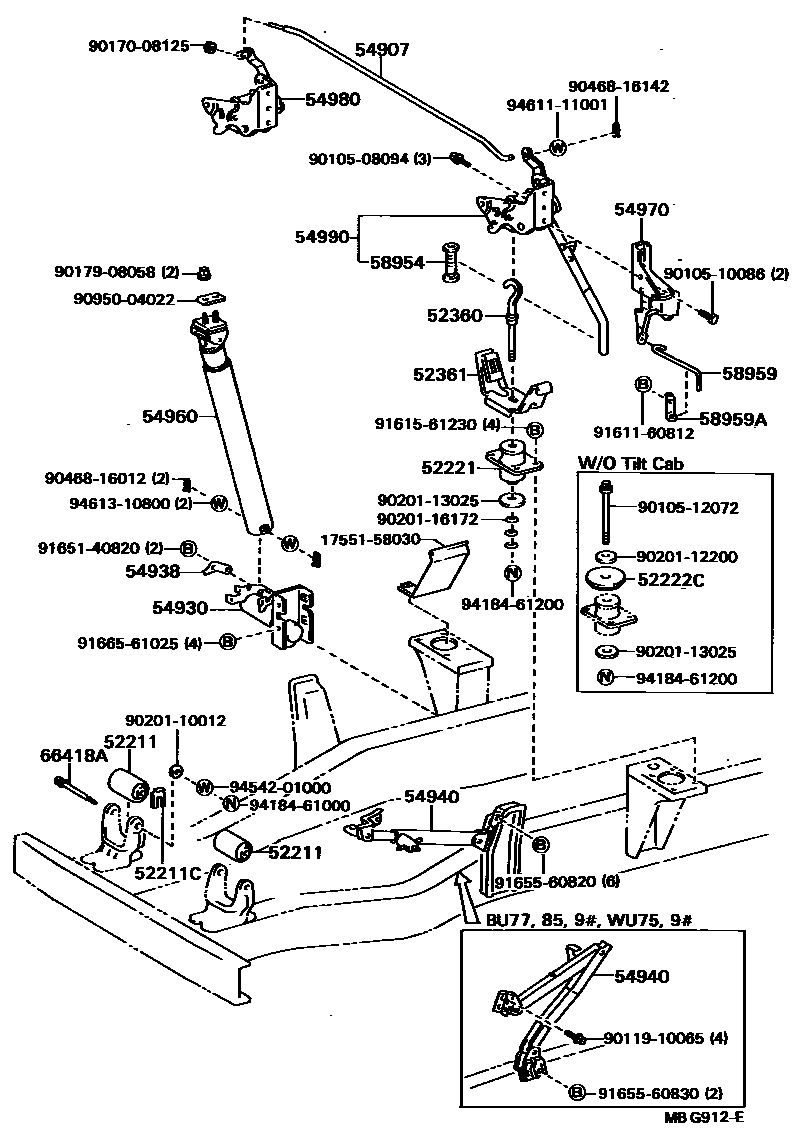

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52201-36040iBU6#,70,80,81,82198409-198708

main52201-36050iBU77,85,9#198409-198708

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-36020iBU6#,7#,8#,9#198601-198708

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52203-36050iBU6#,7#,8#,9#198409-198708

52222CSPACER(FOR BODY MOUNT LOWER CUSHION)

main52222-36030iBU6#,70,80,81,82198409-198708

52360HOOK ASSY, CAB MOUNTING

main52367-36030iBU6#,77,8#,9#..03S198409-198708

52361BRACKET, CAB MOUNTING HOOK

main52306-36020iBU6#,77,8#,9#..03S198409-198708

LH

sub52306-36021

main52307-36020iBU6#,77,8#,9#..03S198409-198708

RH

sub52307-36021

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-95400iBU62,64..DM1,DM2,DM4198409-198708

main54907-95401iBU77,85,9#..03S198409-198708

54930BRACKET ASSY, TILT CAB COIL SPRING, LOWER

main54930-95400iBU77,85,9#..03S198409-198708

main54930-95401iBU62,64..DM1,DM2,DM4198409-198708

54938PLATE, TILT CAB COIL SPRING SUPPORT

main54938-95400iBU62..BTP,CTP,DTP198409-198708

54940STAY ASSY, TILT CAB

main54940-95400iBU62,64..DM1,DM2,DM4198409-198708

main54940-95401iBU60,61,62,80,81..T4198409-198708

main54940-95402iBU77,85,9#..03S198409-198708

54960SPRING ASSY, TILT CAB COIL

main54960-95400iBU62,64..DM1,DM2,DM4198409-198708

main54960-95401iBU77,85,9#..03S198409-198708

54970LATCH ASSY, TILT CAB STOPPER

main54970-95400iBU62,64..DM1,DM2,DM4198409-198708

main54970-95401iBU77,85,9#..03S198409-198708

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-95400iBU62..BTP,CTP,DTP198409-198708

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-95400iBU62,64..DM1,DM2,DM4198409-198605

sub54990-95403

main54990-95401iBU77,85,9#..03S198409-198605

sub54990-95404

main54990-95403iBU62,64..DM1,DM2,DM4198605-198708

main54990-95404iBU77,85,9#..03S198605-198708

sub54990-37010

58954COVER, REAR LOCK HANDLE GRIP

main58954-95400iBU62..BTP,CTP,DTP198409-198708

58959ROD, REAR LOCK, HANDLE LATCH

main58959-95402iBU77,85,9#..03S198409-198708

58959ABRACKET, REAR LOCK HANDLE ROD

main53825-95401iBU77,85,9#..03S198409-198708

66418ABOLT, MOUNTING

main90109-10076iBU6#,7#,8#,9#198409-198708

1755158030INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-58030

9010508094

main90105-08094

9010510086

main90105-10086

9010512072

main90105-12072

9011910065

main90119-10065

9017008125

main90170-08125

9017908058

main90179-08058

9020110012

main90201-10012

9020112200

main90201-12200

9020113025

main90201-13025

9020116172

main90201-16172

9046816012

main90468-16012

9046816142

main90468-16142

9095004022

main90950-04022

9161160812

main91611-60812

9161561230

main91615-61230

9165140820

main91651-40820

9165560820

main91655-60820

9165560830

main91655-60830

9166561025

main91665-61025

9418461000

main94184-61000

9418461200

main94184-61200

9454201000

main94542-01000

9461111001

main94611-11001

9461310800

main94613-10800

43 parts on this diagram · 2 diagrams in section
