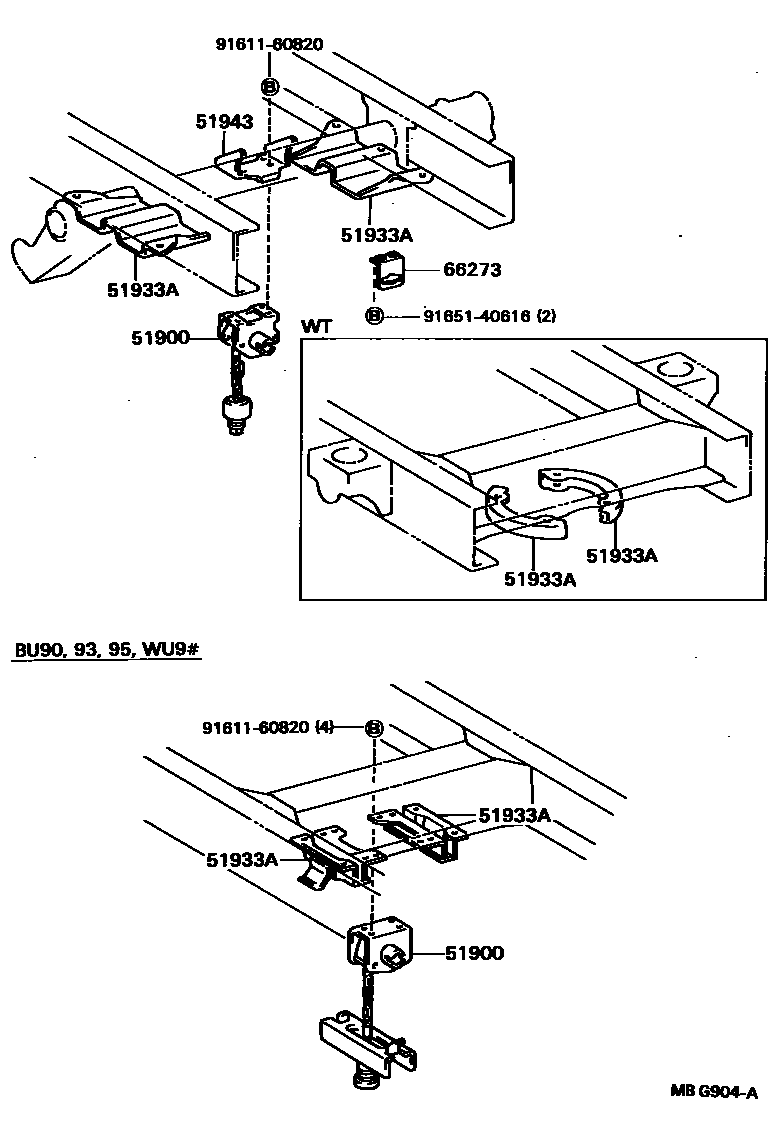

SPARE WHEEL CARRIER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36050iBU90,95198409-198708

main51900-36071iBU85..T2198507-198608

main51900-36080iBU6#,80,81,85..DM1,DM2,DM3,T2,TW2198409-198607

sub51900-36100

main51900-36090iBU98198510-198708

main51900-36100iBU6#,80,81..DM1,DM2,DM3,T2,TW2198607-198708

sub51900-36101

main51900-93100iBU64..DM4198409-198708

main51900-93101iBU64..L1198508-198708

51933BOLT, SPARE WHEEL CARRIER EYE

main51933-93102iBU64..L1198508-198708

main51935-93102iBU62..DM3198409-198708

main51951-96306iBU98198510-198708

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36040iBU90,95198409-198708

main51933-36010iBU85..ETP;BU60,85..(T3,TW1)..WT198409-198708

main51933-36040iBU60,61,62,70..ST198409-198708

main51933-36110iBU62..CTP;BU62..T2..4FC198409-198708

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51908-36070iBU85..T2198608-198708

RH

main51908-36080iBU85..T2198608-198708

LH

main51931-36020iBU98198510-198708

RH

main51932-36020iBU98198510-198708

LH

main51943-36020iBU60,61,62,70..ST198409-198708

main51943-36040iBU80,81,85..T2198409-198708

LH

main51944-36070iBU80,81..T2198409-198708

RH

main65103-93100iBU64..L1198508-198708

RH

main65104-93100iBU64..L1198508-198708

LH

66273GUIDE, SPARE TIRE CARRIER

main51923-36010iBU85..T2198409-198708

main51923-36020iBU80,81..T2198409-198708

main66273-95400iBU60..T1,TW1198409-198708

9161160820

main91611-60820

9165140616

main91651-40616

7 parts on this diagram · 7 diagrams in section
