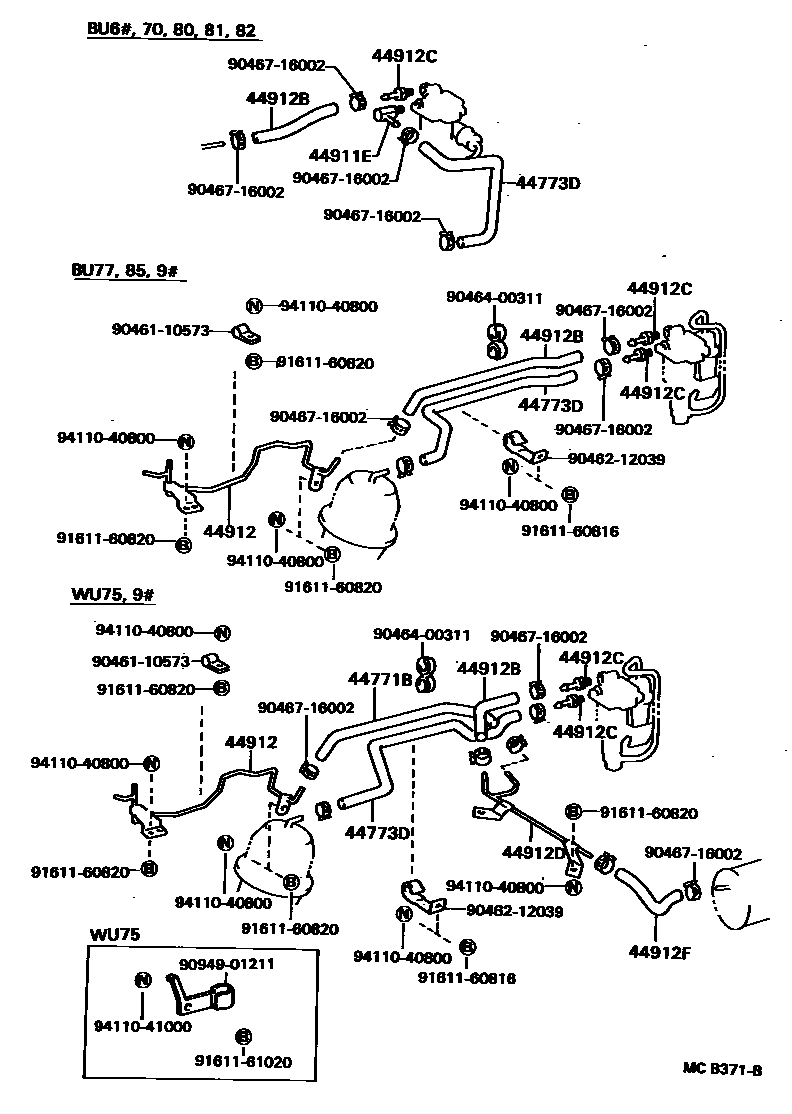

EXHAUST BRAKE TUBE & CLAMP

44771BHOSE, VACUUM TUBE CONNECTOR

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36020iBU60,61,62,70,80,81,82..5F..(CBU,IV3)198409-198508

main44773-36021iBU60,61,62,70,80,81,82198508-198708

main44773-36030iBU64198409-198508

main44773-36031iBU64198508-198708

main44773-36040iBU85,9#..5F198409-198508

main44773-36041iBU77,85,90,93,95198508-198708

main44773-36060iBU62..IV4198410-198708

main44773-36100iBU98198510-198708

44911EELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90407-51002iBU6#,70,80,81,82198508-198708

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44912-36090iBU98198510-198708

main44912-36100iBU77,85,90,93,95..5F198409-198708

sub44912-36160

44912BHOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main44779-36010iBU77,85,90,93,95198508-198708

main44779-36040iBU98198510-198708

main95441-09180iBU6#,70,80,81,82..5F198409-198508

sub95441-09190

main95445-09180iBU6#,70,80,81,82198508-198708

sub95446-09180

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319×2iBU6#,70,8#,9#..5F198409-198508

44912DTUBE, VACUUM(FOR MAGNETIC VALVE TO RESERVOIR)

44912FHOSE, VACUUM

9046110573

main90461-10573

9046212039

main90462-12039

9046400311

main90464-00311

9046716002

main90467-16002

9094901211

main90949-01211

9161160816

main91611-60816

9161160820

main91611-60820

9161161020

main91611-61020

9411040800

main94110-40800

9411041000

main94110-41000

18 parts on this diagram · 1 diagram in section
