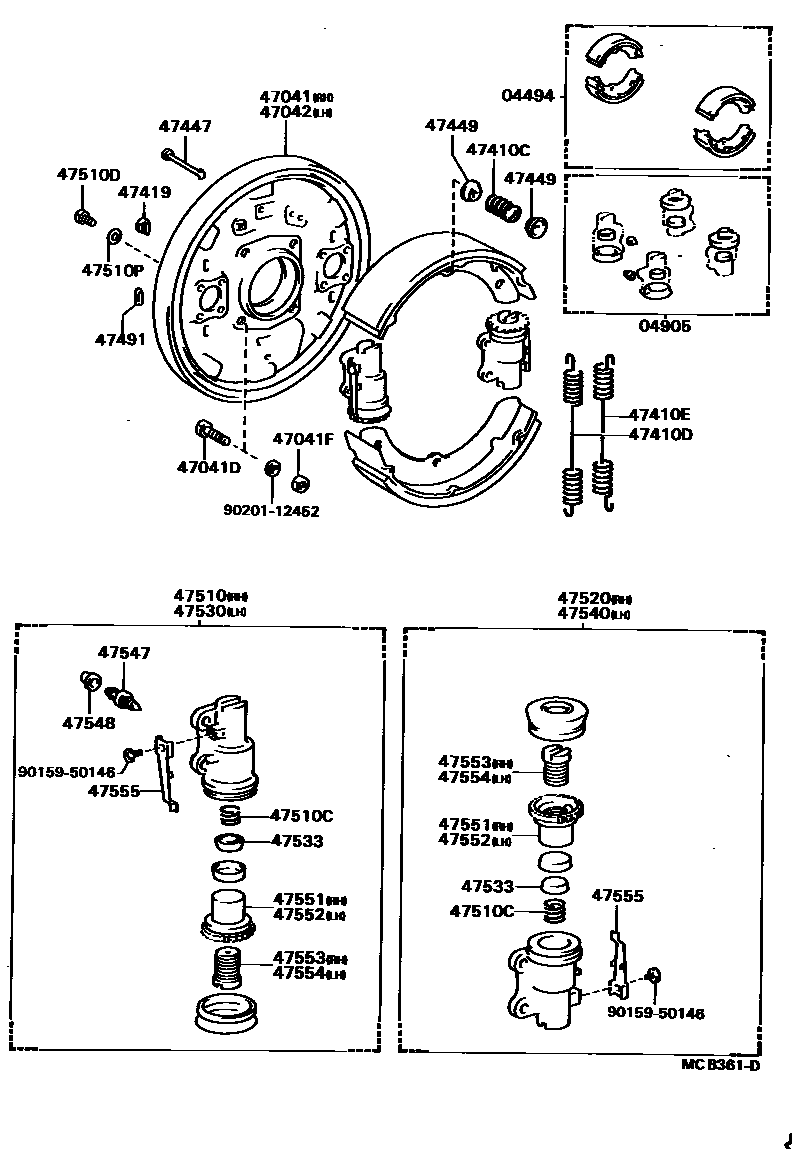

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04494SHOE KIT, FRONT BRAKE

main04494-36070iBU90,95198409-198708

sub04494-36170

main04494-36080iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

sub04494-36160

main04494-36090iBU60,61,62,80,81..T4,TW4198409-198708

sub04494-36150

main04494-36100iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

sub04494-36140

main04496-36070iBU90,95198409-198708

REBUILT

main04496-36080iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

REBUILT

main04496-36090iBU60,61,62,80,81..T4,TW4198409-198708

REBUILT

main04496-36100iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

REBUILT

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36060iBU90,95198409-198708

main04905-36070iBU85..T2;BU60..T3..ST;BU61,70,80,81;BU62..(DM2,T2,T3,T4)..20T;BU60..T1,T2,T4,TW1,TW2,TW4198409-198708

main04905-36080iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main04905-36090iBU61,80,81..T2,T3198409-198708

AUTO ADJUSTER

main04905-36100iBU82..03S;BU85..T3..20T198409-198708

AUTO ADJUSTER

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36110iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

sub47041-36111

sub47492-28010

main47041-36120iBU60,61,62,80,81..T4,TW4198409-198603

sub47041-36121

main47041-36121iBU60,61,62,80,81..T4,TW4198603-198708

sub47041-36170

main47041-36130iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

sub47041-36131

sub47492-28010

main47041-36140iBU90,95198409-198708

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12113iBU6#,7#,8#,93,98198409-198708

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90170-14002iBU90,95198409-198708

main94115-71200iBU6#,7#,8#,93,98198409-198708

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36110iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

sub47042-36111

sub47492-28010

main47042-36120iBU60,61,62,80,81..T4,TW4198409-198603

sub47042-36121

main47042-36121iBU60,61,62,80,81..T4,TW4198603-198708

sub47042-36170

main47042-36130iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

sub47042-36131

sub47492-28010

main47042-36140iBU90,95198409-198708

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iBU6#,7#,8#,9#198409-198708

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29006iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

main90507-29004iBU60,61,62,80,81..T4,TW4198409-198708

LH

main90507-29005iBU60,61,62,80,81..T4,TW4198409-198708

RH

main90507-29006iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,90,95,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-29006iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

main90507-29004iBU60,61,62,80,81..T4,TW4198409-198708

RH

main90507-29005iBU60,61,62,80,81..T4,TW4198409-198708

LH

main90507-29006iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1,TW2)..WT198409-198708

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011iBU6#,7#,8#,93,98198409-198708

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20010iBU60,61,62,80,81..T4,TW4198409-198708

main47447-35020iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

main47447-36030iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main47447-60010iBU90,95198409-198708

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iBU6#,7#,8#,9#198409-198708

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iBU6#,7#,8#,9#198409-198708

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36090iBU85..T2;BU60..T3..ST;BU61,70,80,81;BU60..T1,T2,T4,TW1,TW2;BU62..(DM2,T2,T3,T4)..20T198409-198708

main47510-36100iBU62..BTP,DTP;BU62,64,77,82..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main47510-36110iBU61,80,81..T2,T3198409-198708

AUTO ADJUSTER

main47510-36120iBU82..03S;BU85..T3..20T198409-198708

AUTO ADJUSTER

main47510-39186iBU90,95198409-198708

sub47510-36080

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122iBU6#,7#,8#,93,98198409-198708

main90501-10759iBU90,95198409-198708

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-08081iBU85..T2;BU60..T3..ST;BU61,70,80,81;BU62..(DM2,T2,T3,T4)..20T;BU60..T1,T2,T4,TW1,TW2,TW4198409-198708

main90101-10127iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-08002iBU85..T2;BU60..T3..ST;BU61,70,80,81;BU62..(DM2,T2,T3,T4)..20T;BU60..T1,T2,T4,TW1,TW2,TW4198409-198708

main90201-10287iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36090iBU60..T3..ST;BU85..T2..5F;BU61,70,80,81;BU60..T1,T2,T4,TW1,TW2,TW4;BU62..(DM2,T2,T3,T4)..5F..20T198409-198708

main47520-36100iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,82,85..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main47520-36110iBU61,80,81..T2,T3198409-198708

AUTO ADJUSTER

main47520-36110iBU62..(T2,T3)..4FC198508-198708

main47520-36120iBU85..ETP198409-198708

AUTO ADJUSTER

main47520-39146iBU90,95198409-198708

sub47520-36070

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36090iBU60..T3..ST;BU85..T2..5F;BU61,70,80,81;BU60..T1,T2,T4,TW1,TW2,TW4;BU62..(DM2,T2,T3,T4)..5F..20T198409-198708

main47530-36100iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,82,85..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main47530-36110iBU60..T2198409-198708

AUTO ADJUSTER

main47530-36110iBU62..4FC..ST198508-198708

main47530-36120iBU85..ETP198409-198708

AUTO ADJUSTER

main47530-39186iBU90,95198409-198708

sub47530-36080

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011iBU6#,7#,8#,93,98198409-198708

main47533-36031iBU90,95198409-198708

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36090iBU85..T2;BU60..T3..ST;BU61,70,80,81;BU60..T1,T2,T4,TW1,TW2;BU62..(DM2,T2,T3,T4)..20T198409-198708

main47540-36100iBU85..ETP;BU85,93,98..(T3,TW1)..5F198409-198708

main47540-36110iBU61,80,81..T2,T3198409-198708

AUTO ADJUSTER

main47540-36110iBU62..4FC..ST198508-198708

main47540-36120iBU82..03S;BU85..T3..20T198409-198708

AUTO ADJUSTER

main47540-39146iBU90,95198409-198708

sub47540-36070

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iBU6#,7#,8#,9#198409-198708

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iBU6#,7#,8#,9#198409-198708

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47506-36010iBU61,77,8#,93,98..T2,T3198409-198708

AUTO ADJUSTER

main47551-36110iBU90,95198409-198708

main47551-36120iBU60..T3..ST;BU85..T2..5F;BU61,70,80,81;BU60..T1,T2,T4,TW1,TW2,TW4;BU62..(DM2,T2,T3,T4)..5F..20T198409-198708

main47551-36130iBU62..BTP,DTP;BU62,64,77,82..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47507-36010iBU62..4FC198409-198708

AUTO ADJUSTER

main47552-36110iBU90,95198409-198708

main47552-36120iBU85..T2;BU60..T3..ST;BU61,70,80,81;BU60..T1,T2,T4,TW1,TW2;BU62..(DM2,T2,T3,T4)..20T198409-198708

main47552-36130iBU62..BTP,DTP;BU62,64,77,82..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36030iBU90,95198409-198708

main47553-36050iBU60..T3..ST;BU85..T2..5F;BU61,70,80,81;BU60..T1,T2,T4,TW1,TW2,TW4;BU62..(DM2,T2,T3,T4)..5F..20T198409-198708

main47553-36060iBU85..ETP;BU85,93,98..(T3,TW1)..5F198409-198708

main47553-36070iBU61,77,8#,93,98..T2,T3198409-198708

AUTO ADJUSTER

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36030iBU90,95198409-198708

main47554-36050iBU60..T3..ST;BU85..T2..5F;BU61,70,80,81;BU60..T1,T2,T4,TW1,TW2,TW4;BU62..(DM2,T2,T3,T4)..5F..20T198409-198708

main47554-36060iBU85..ETP;BU85,93,98..(T3,TW1)..5F198409-198708

main47554-36070iBU61,77,8#,93,98..T2,T3198409-198708

AUTO ADJUSTER

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-25010iBU90,95198409-198708

main47555-36040iBU6#,7#,8#,93,98198409-198708

T=0.8

9015950146

main90159-50146

9020112452

main90201-12452

30 parts on this diagram · 3 diagrams in section
