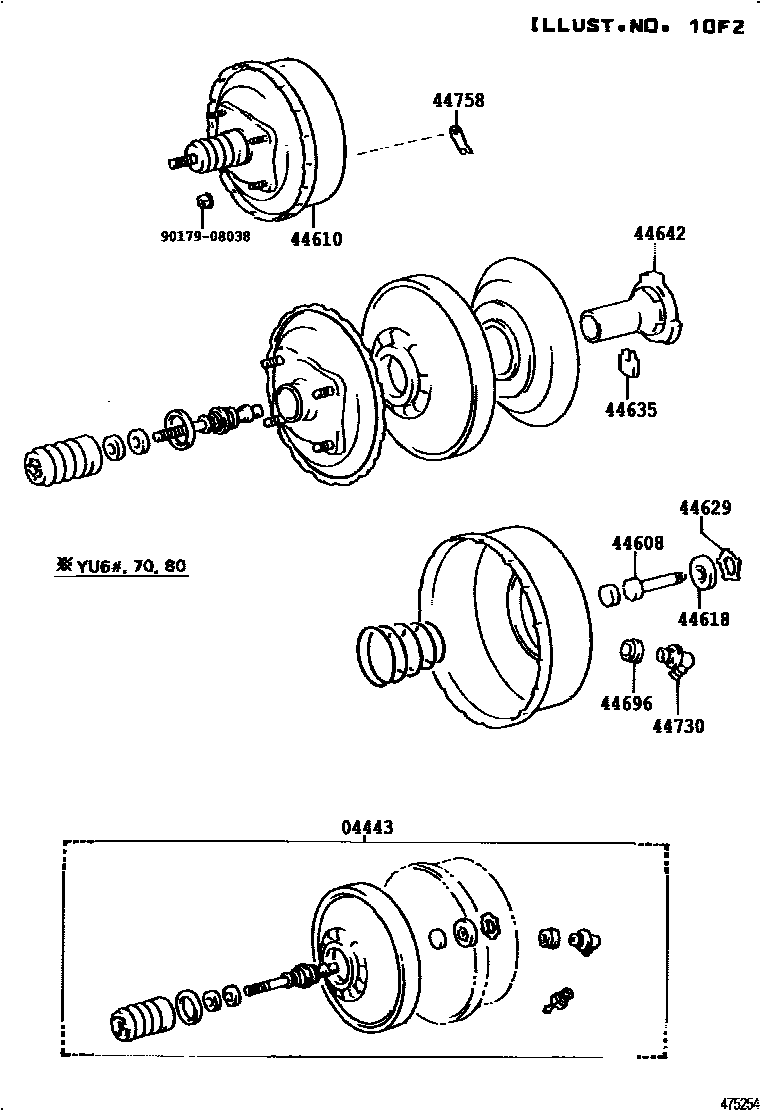

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1FR DISC 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-36050iBU6#,7#,80,81,82198508-198708

main04443-36060iBU64,77,82,85..T3..20T198409-198708

FR DISC

main04443-36090iBU9#198409-198508

main04443-36091iBU90,95198508-198708

main04443-36101iBU85..30T..TD198508-198708

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-36240iBU6#,7#,80,81,82198508-198708

main44608-25150iBU60,61,62,80,81..T4,TW4198608-198708

FR DISC

main44608-36220iBU85,9#..30T,35T198409-198508

44610BOOSTER ASSY, BRAKE

main44610-36240iBU6#,7#,80,81,82198508-198708

main44610-36260iBU64,77,82,85..T3..20T198409-198708

FR DISC

main44610-36320iBU9#198409-198508

main44610-36321iBU90,95198508-198708

main44610-36370iBU85..30T198409-198508

sub47277-36010

main44610-36371iBU85,93,98..(275,30T)..DSL198508-198708

44618SEAL, BOOSTER BODY

main44621-28120iBU6#,7#,80,81,82198508-198708

44629RING, CIRCULAR INTERNAL

main44628-28120iBU6#,7#,80,81,82198508-198708

44635RETAINER, HYDRAULIC VALVE

main44635-36240iBU85..ETP;BU82,85..20T;BU6#,70,80,81198409-198508

44642PISTON, BRAKE BOOSTER

main44642-36220iBU9#198409-198508

main44642-36240iBU6#,7#,80,81,82198508-198708

main44642-36260iBU64,77,82,85..T3..20T198409-198708

FR DISC

main44642-36370iBU85..30T198409-198508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60040iBU6#,7#,8#,9#198409-198708

9017908038

main90179-08038

9 parts on this diagram · 4 diagrams in section
