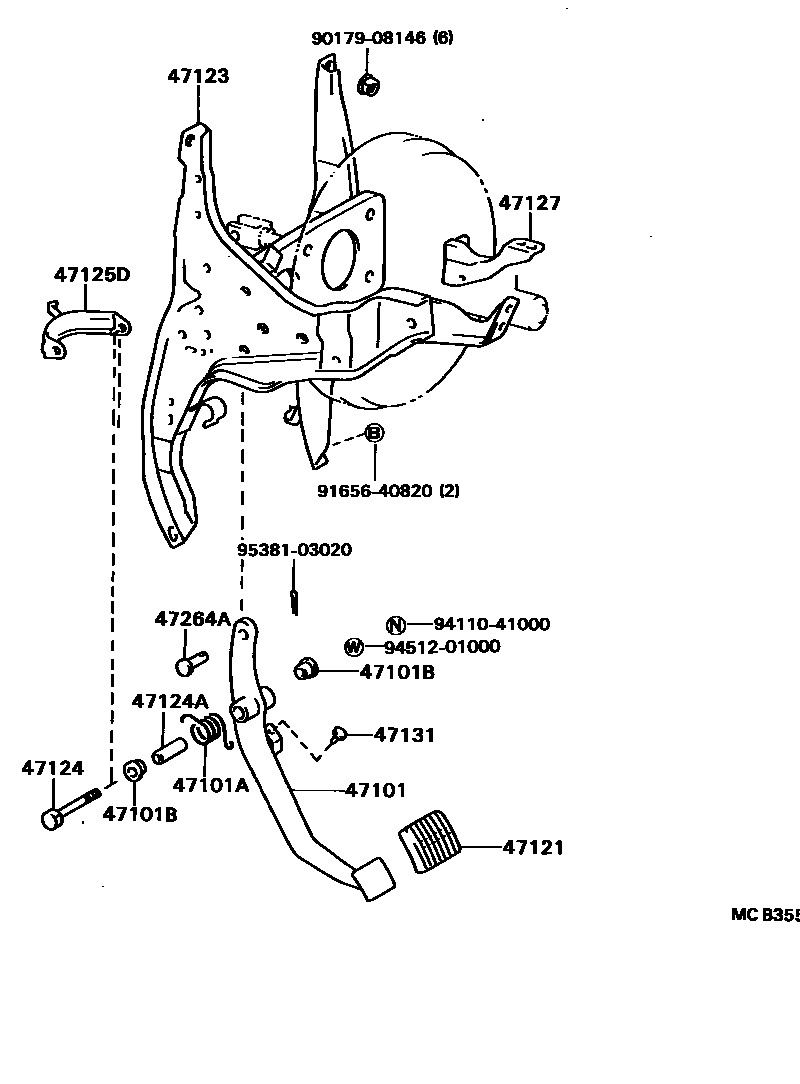

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-36090iBU77,85,9#198409-198708

main47101-36110iBU6#,70,80,81,82198409-198708

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iBU6#,7#,8#,9#198409-198708

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBU6#,7#,8#,9#198409-198708

47121PAD, BRAKE PEDAL

main31321-36010iBU6#,7#,8#,9#198409-198708

47123BRACKET, BRAKE PEDAL

main55150-95400iBU6#,7#,8#,9#198409-198708

47124SHAFT, BRAKE PEDAL

main91121-51070iBU6#,7#,8#,9#198409-198708

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBU6#,7#,8#,9#198409-198708

47125DSTAY, BRAKE PEDAL BRACKET

main55159-95401iBU6#,7#,8#,9#198409-198708

47127SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-95401iBU85..20T;BU60,61,64,7#,80,81;BU62,82..(T3,TW1)..20T;BU62..DM2,DM3,T2,T4,TW1;BU62,85..BTP,CTP,DTP,ETP198409-198708

main55175-95402iBU85,9#..275,30T,35T198409-198708

main55175-95402iBU60,61,62,80,81..T4,TW4198608-198708

FR DISC

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBU6#,7#,8#,9#198409-198708

47264APIN(FOR PUSH ROD)

main90240-10015iBU6#,7#,8#,9#198409-198708

9017908146

main90179-08146

9165640820

main91656-40820

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

16 parts on this diagram · 1 diagram in section
